Rockford Fosgate 1,000watt Can-Am X3 MAX Rear Subwoofer Solution(Gen-3) X317MAX-RSS

Name: Rockford Fosgate 1,000watt Can-Am X3 MAX Rear Subwoofer Solution(Gen-3) X317MAX-RSS
Brand: Rockford Fosgate
SKU: X317MAX-RSS
Price: 1869.99 USD
Availability: InStock

$1,869.99 USD

SKU: X317MAX-RSS

Purpose built exclusively for the Can-Am® MAVERICK X3 MAX, this rear subwoofer kit provides next level bass performance, an Element Ready™ design, and simple installation. Features & Benefits: Maximum Bass... Read More

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

View details

Description

Price Match Guarantee!

Purpose built exclusively for the Can-Am® MAVERICK X3 MAX, this rear subwoofer kit provides next level bass performance, an Element Ready™ design, and simple installation.

Features & Benefits:

Maximum Bass Performance: With 1,000 watts of output, the Element Ready™ amplifier and dual subwoofers deliver that next level of off-road bass performance

Element Ready™: Purpose built for the off-road environment, Rockford’s Element ReadyTM products are built to stand up to water, dirt, mud and UV rays, making sure your speakers stand the test of time.

Plug-and-Play Design: No drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.

RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.

Compatibility Chart: Please review below tab for fitment before purchasing.

Click to watch video X317MAX-RSS Install Video

Overview

MAX BASS PERFORMANCE

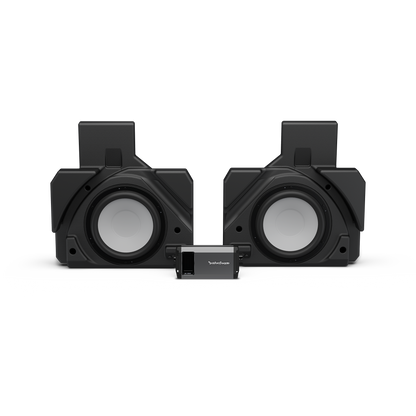

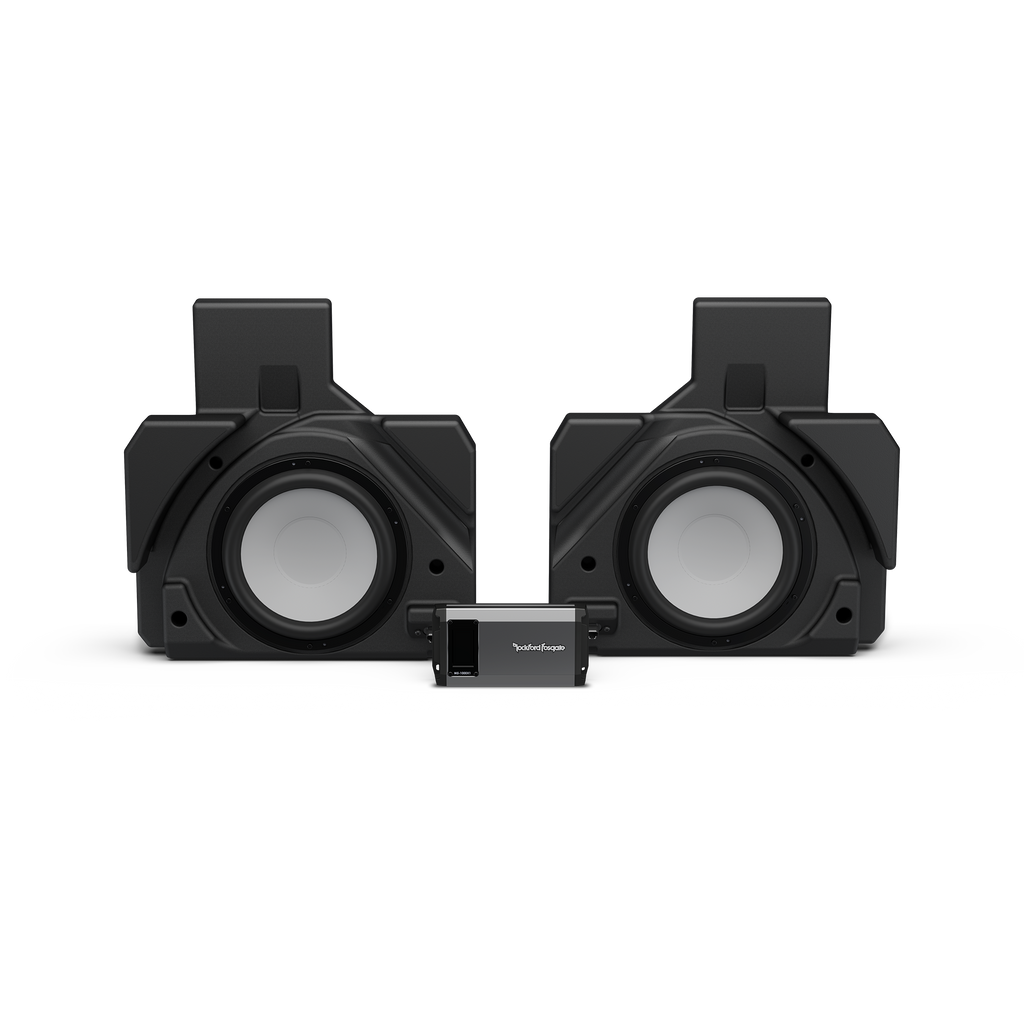

Purpose Built exclusively for select Can-Am® X3 MAX models, this dual rear subwoofer kit provides next level bass performance, an Element Ready™ design, and simple installation. The kit is designed as an upgrade for select aftermarket Rockford Fosgate Can-Am Stage-3/4/5/6 systems. It features two Element Ready™ 10" loaded subwoofer enclosures and 1,000 watt, next-generation IPX6 Element Ready™ amplifier. Includes all necessary wiring harnesses and hardware. Fits 4-seat models only, not 2-seat. See COMPATIBILITY chart to verify system requirements and fitment before purchasing.

FEATURES AT A GLANCE

Bass upgrade for select Can-Am stage kits
Uses factory mounting locations for easy install
Roto-mold design for lightweight and durable seamless construction

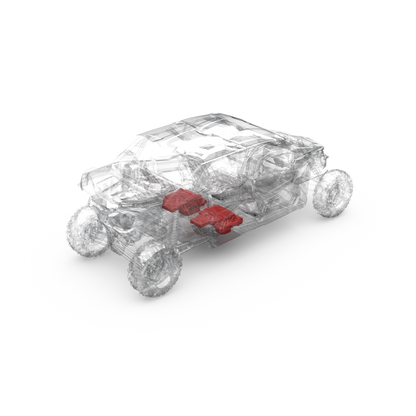

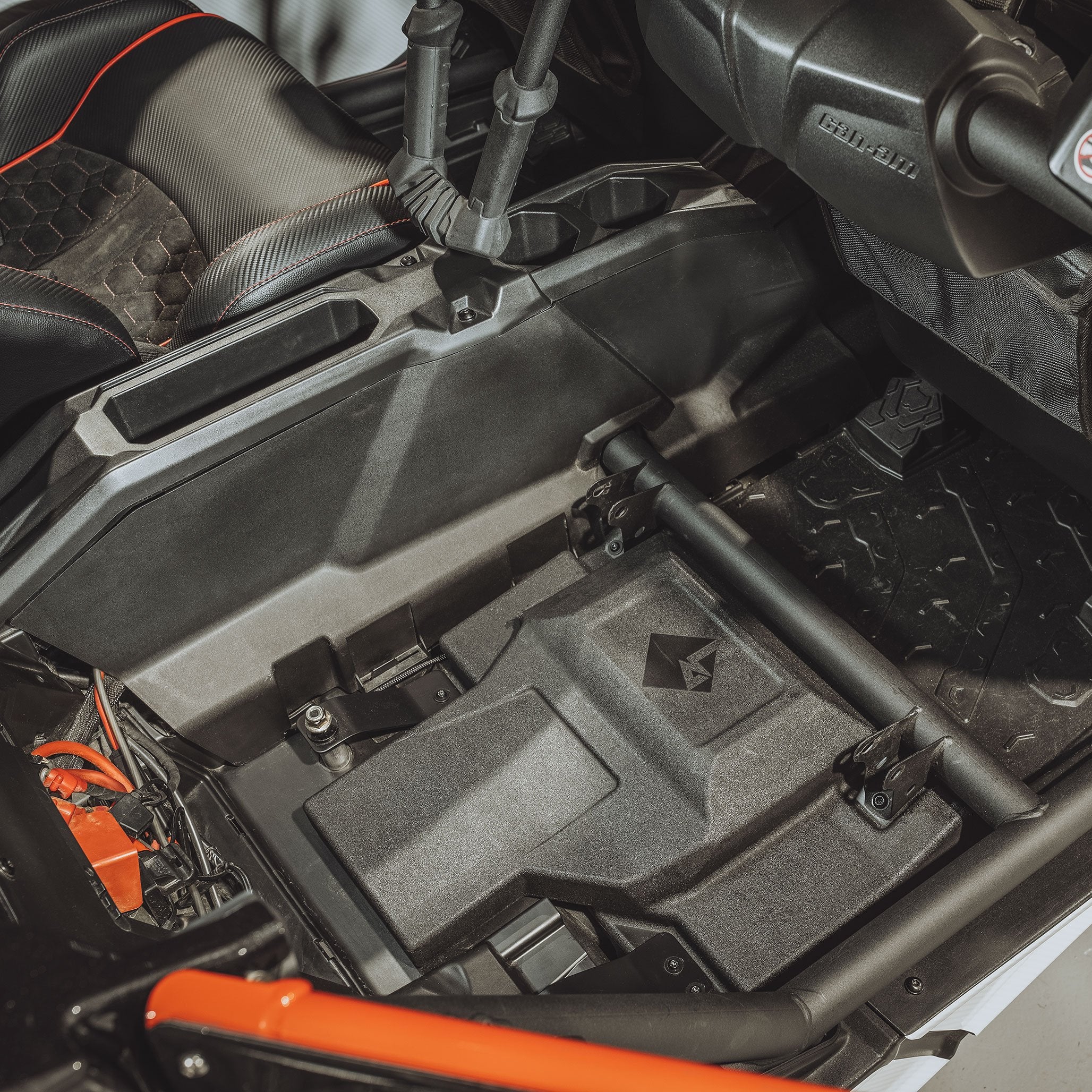

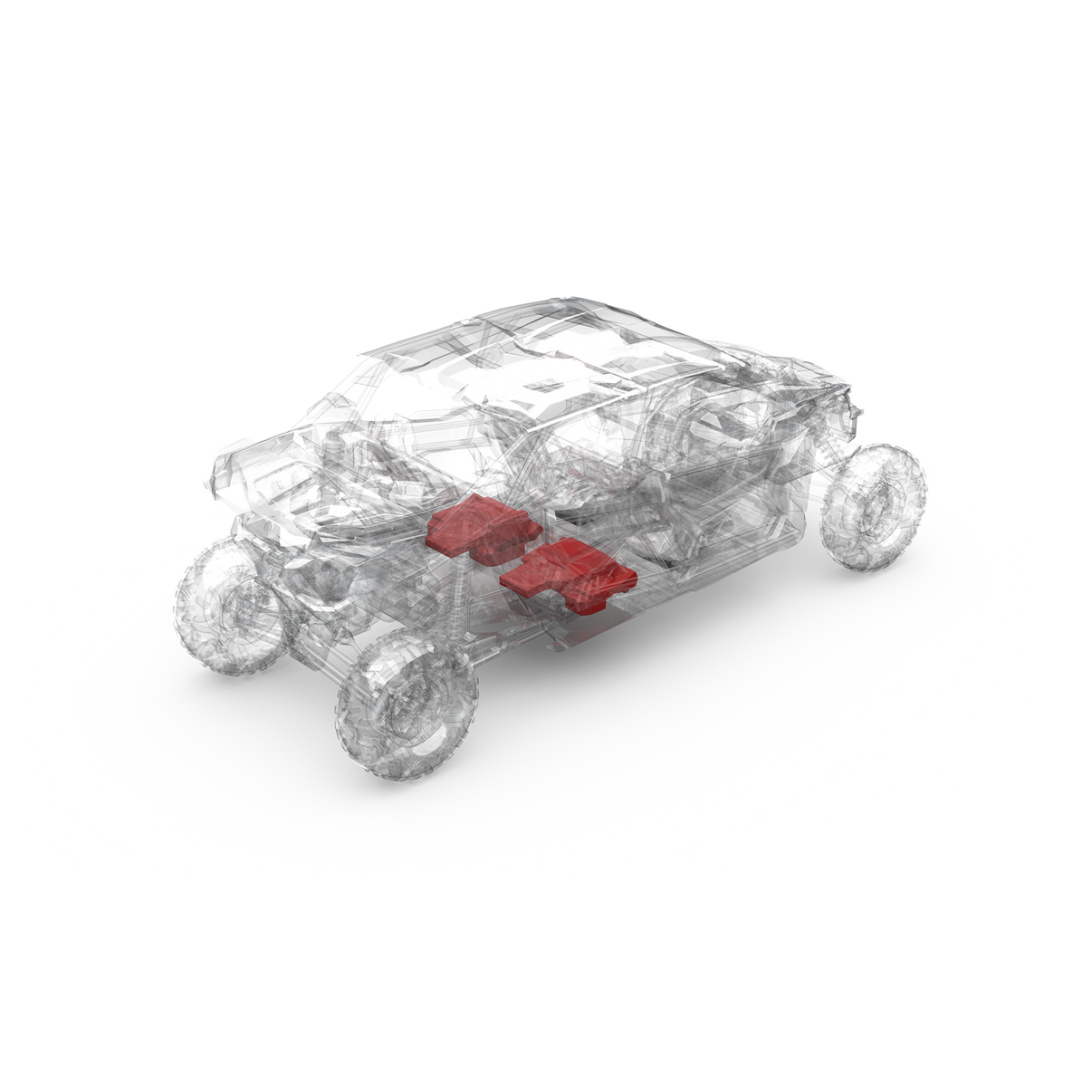

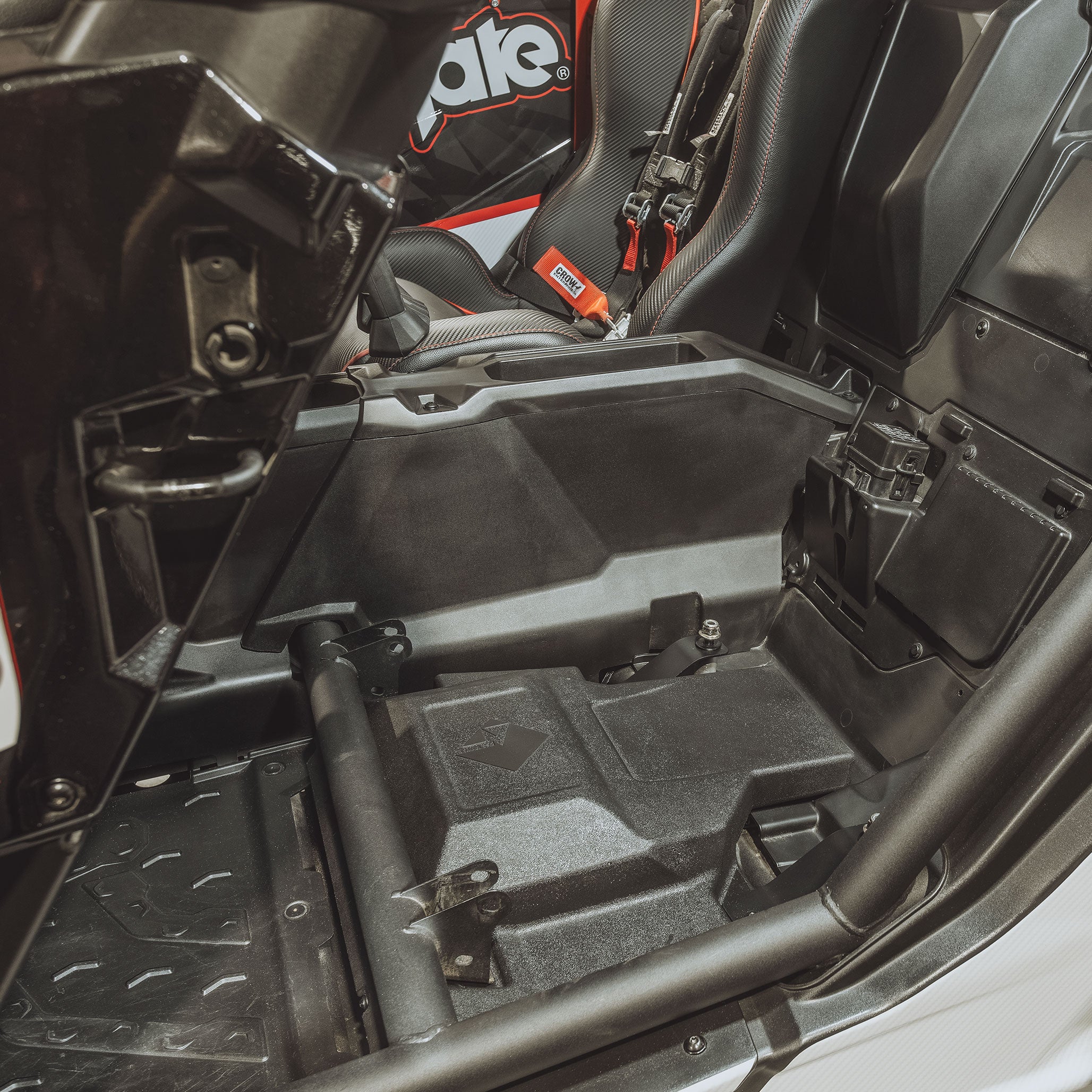

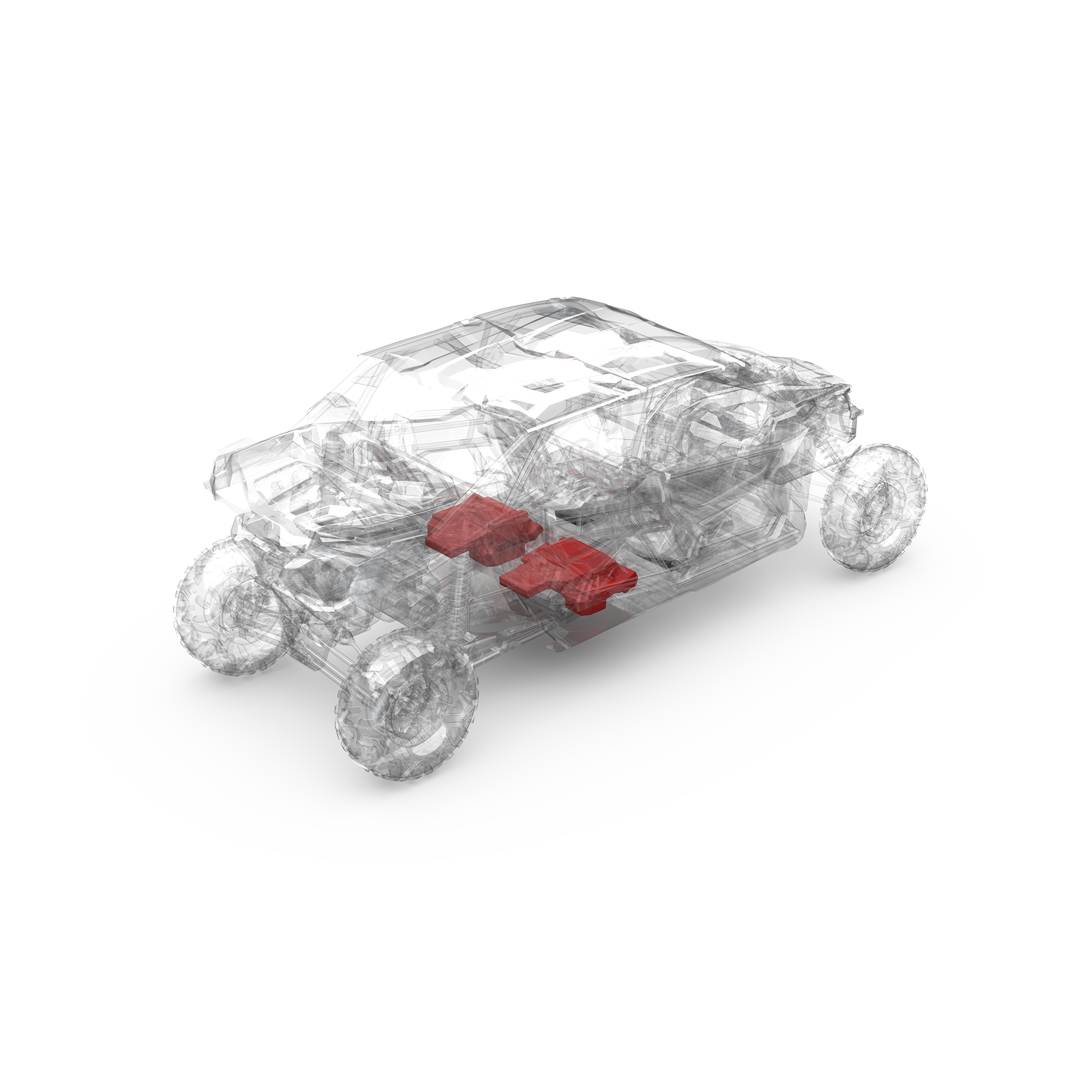

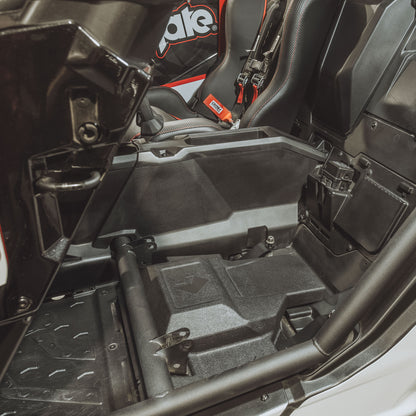

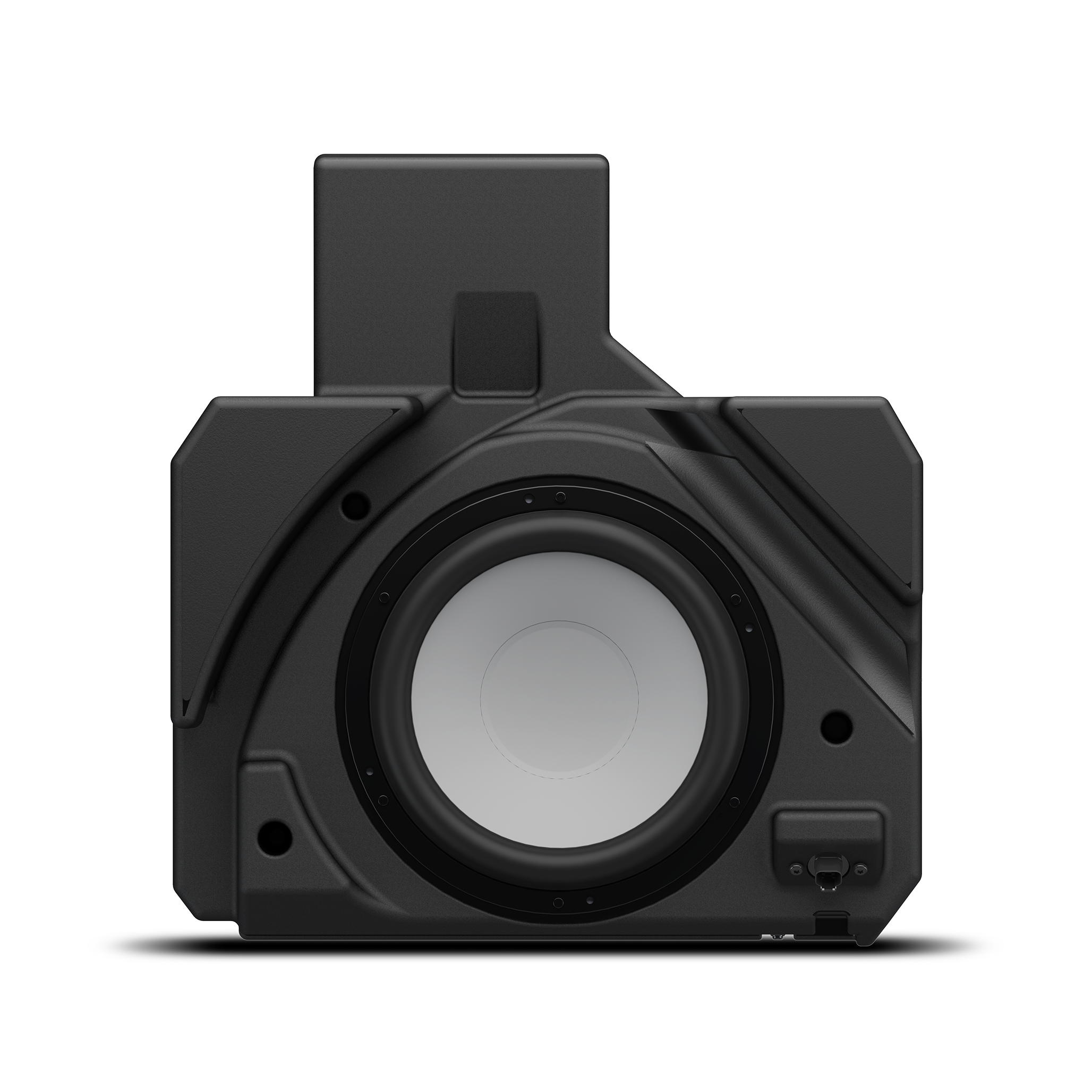

M2 10” IPX6 Element Ready™ loaded subwoofers in enclosures under rear seats
Down firing configuration for improved performance

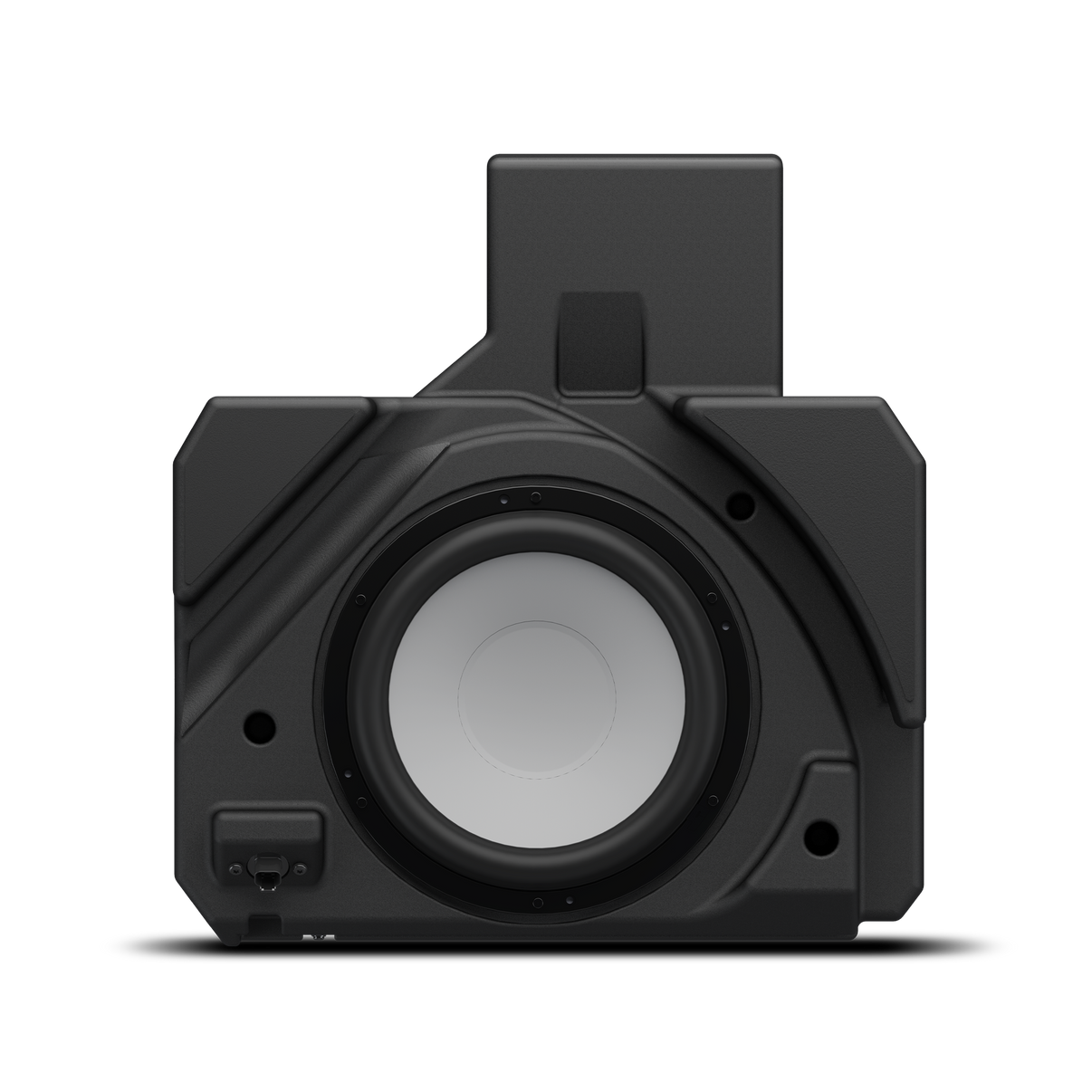

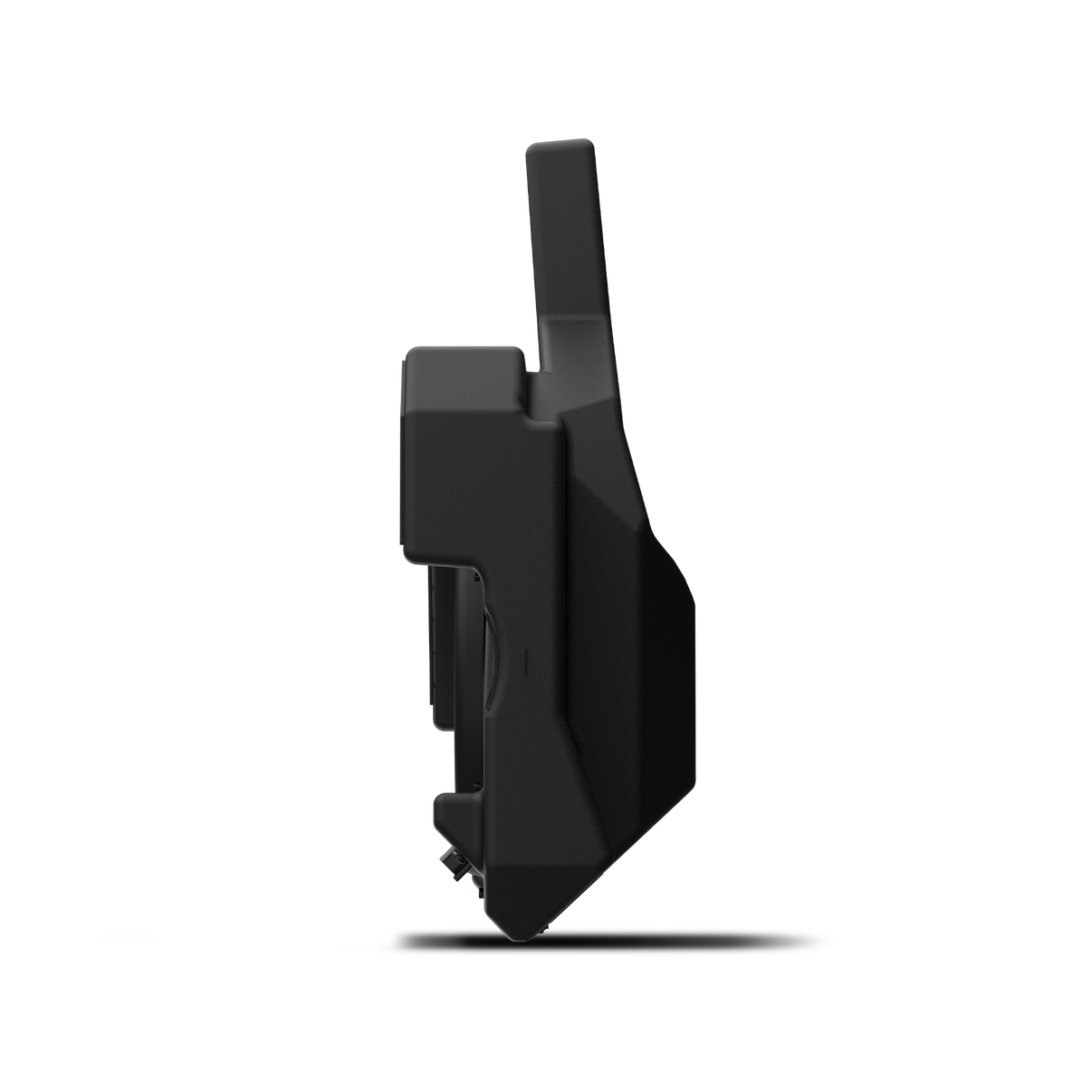

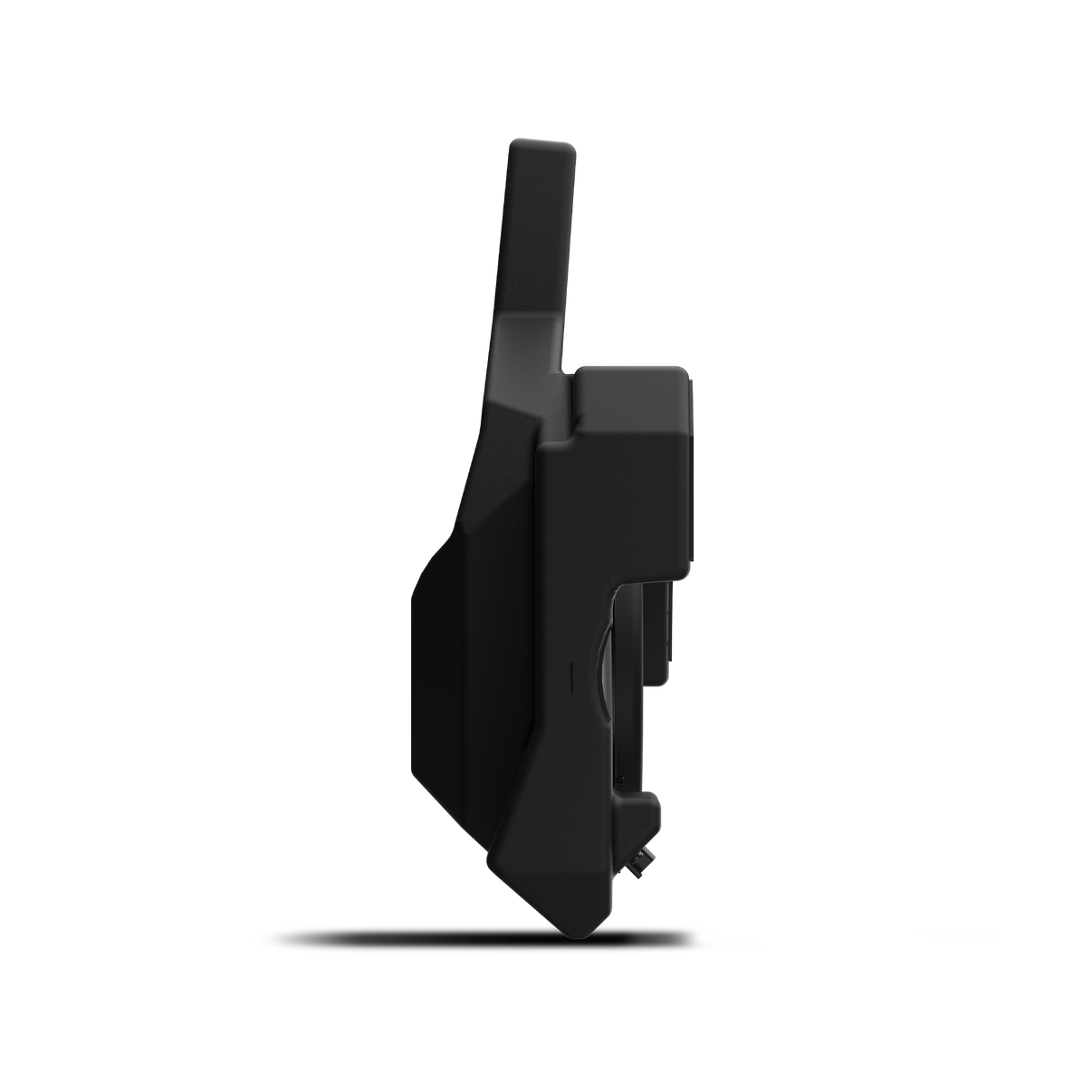

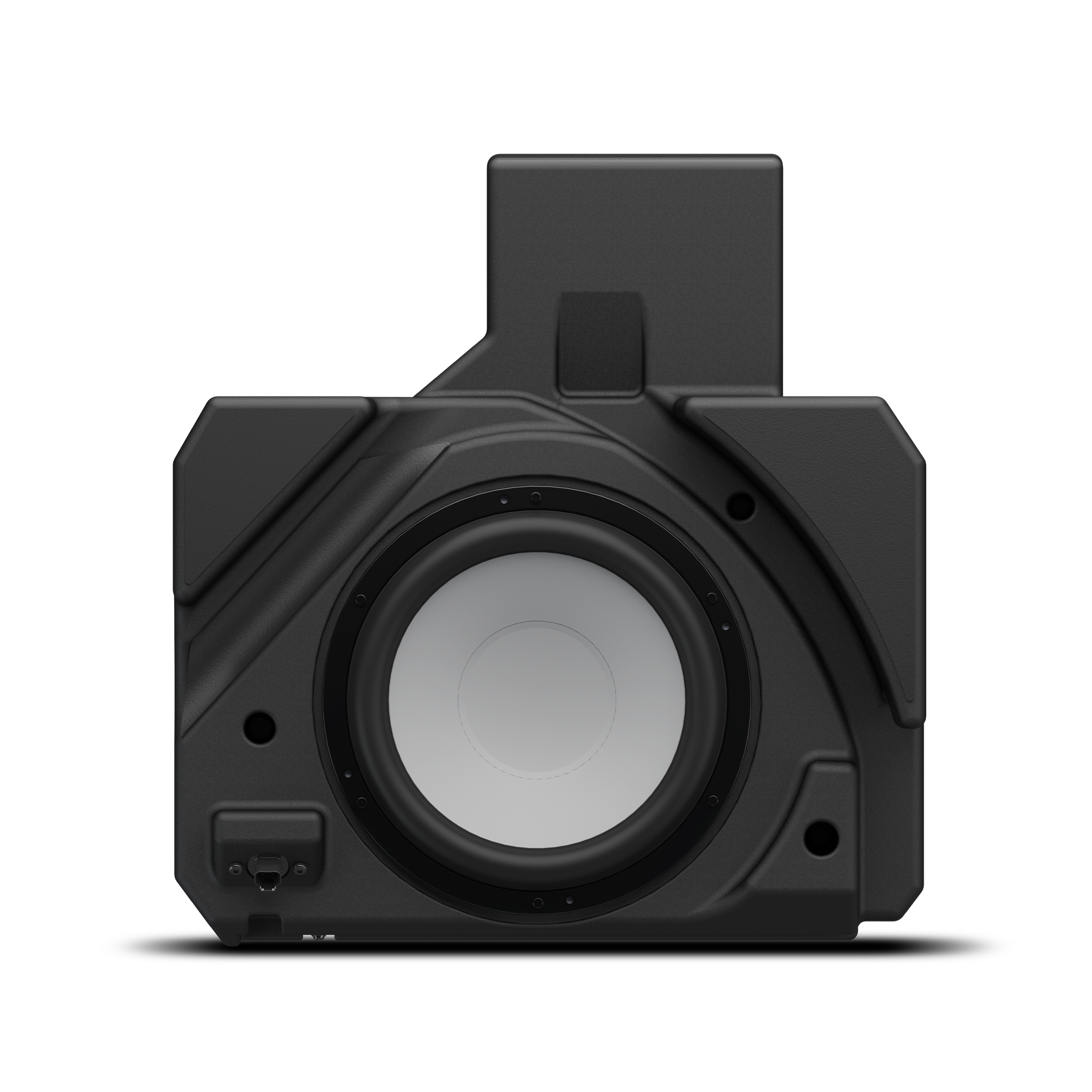

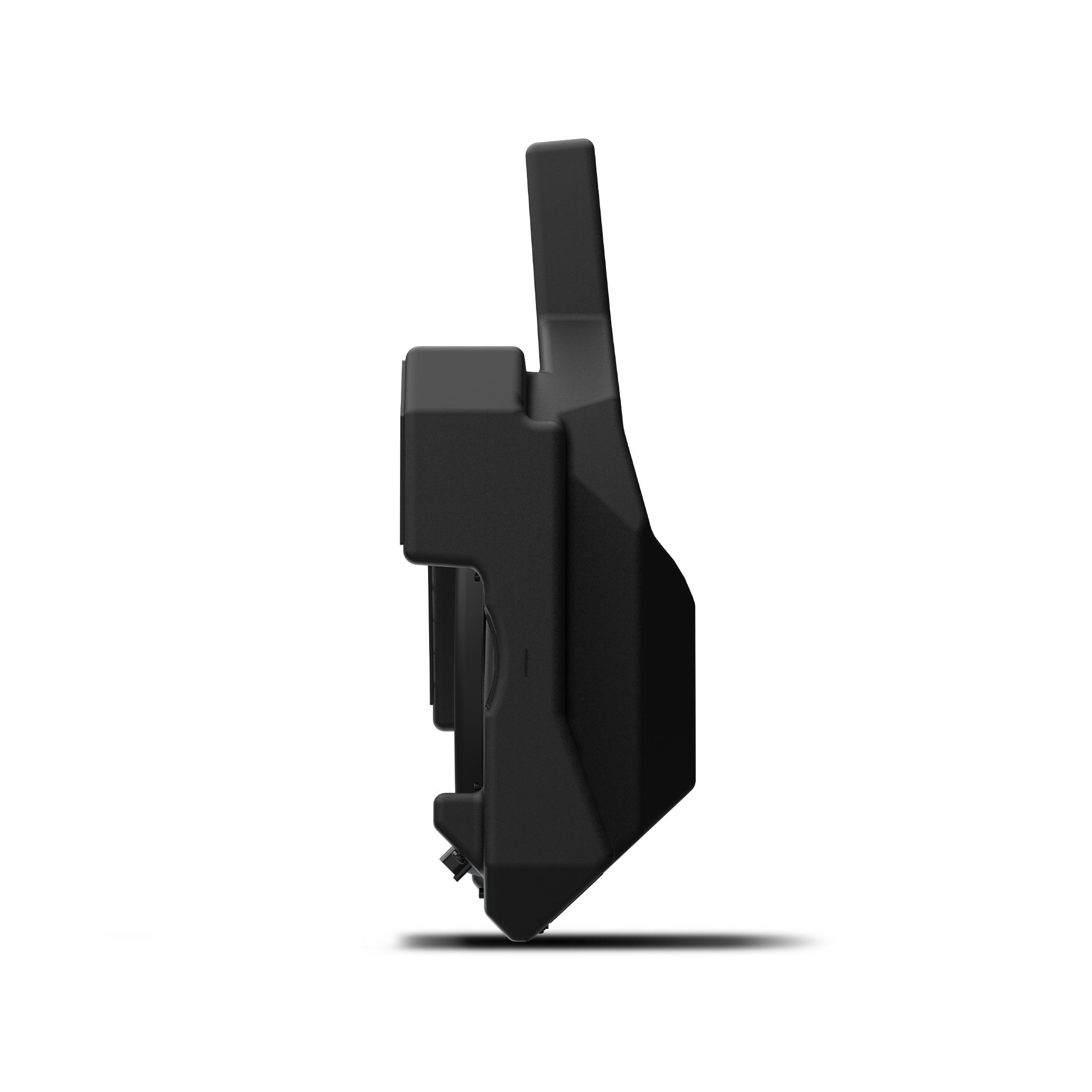

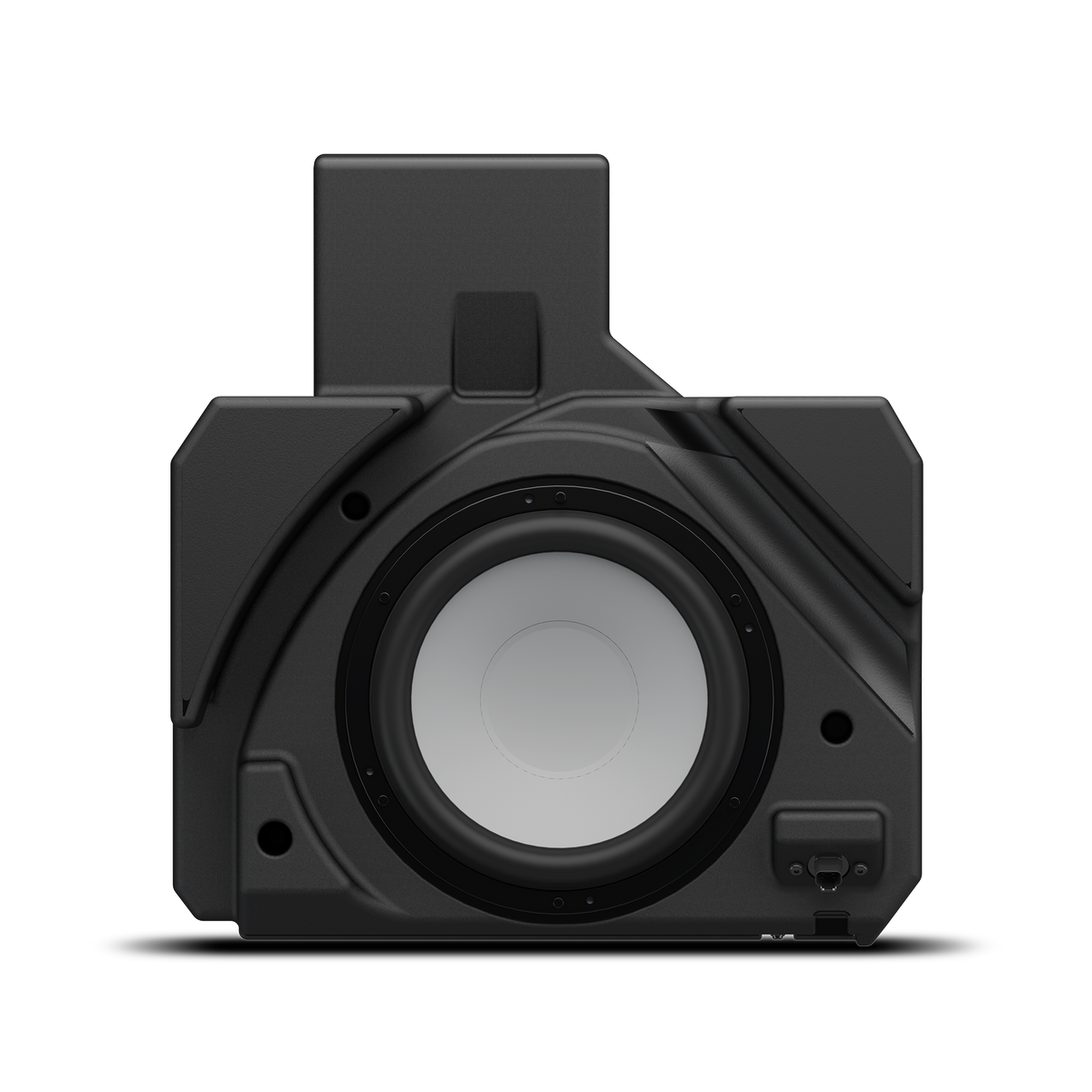

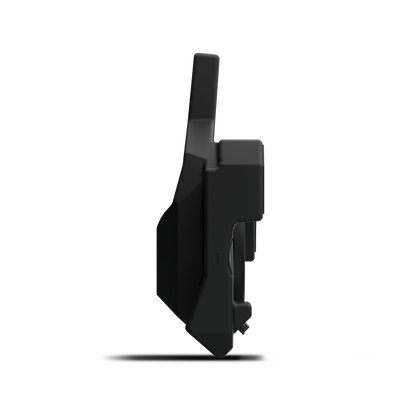

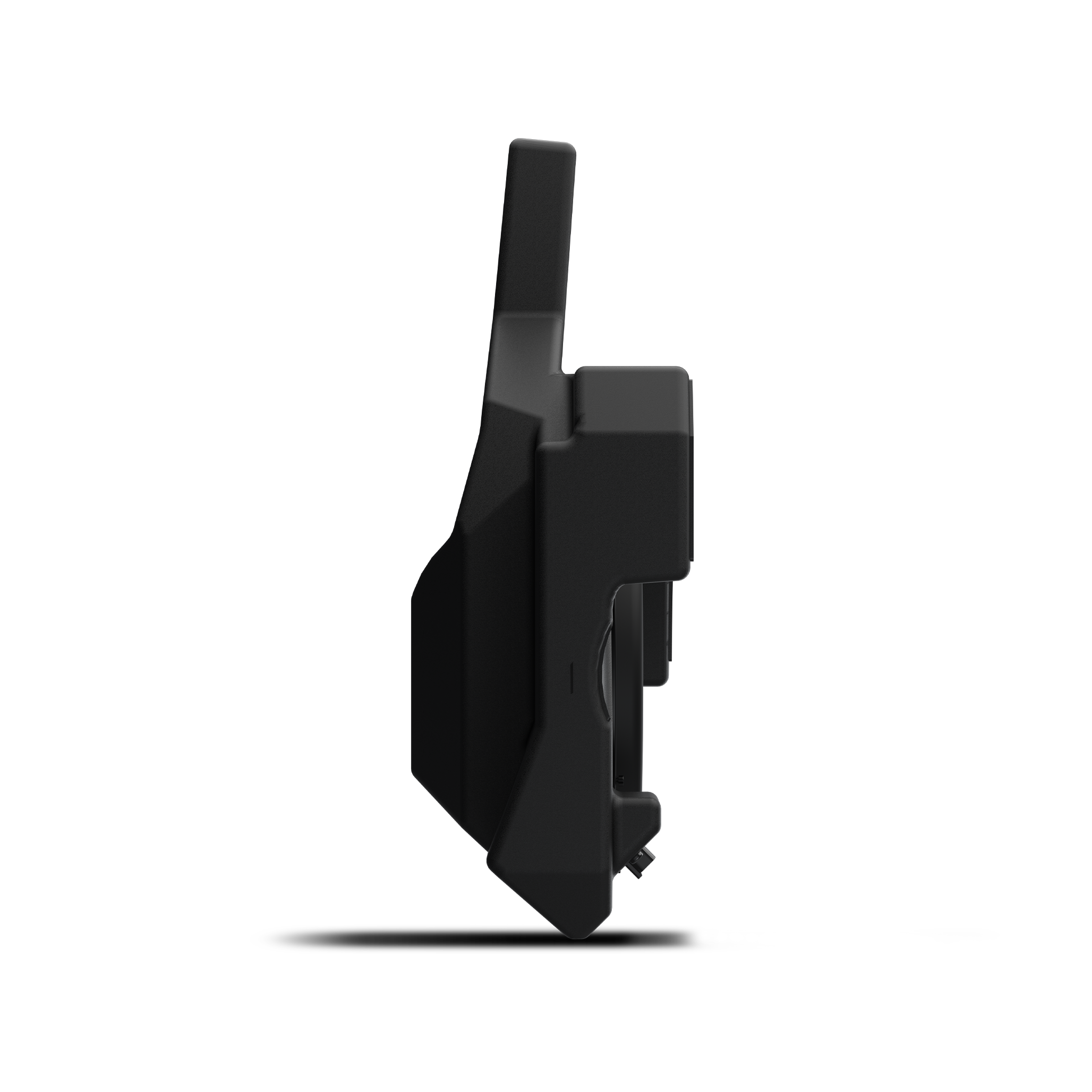

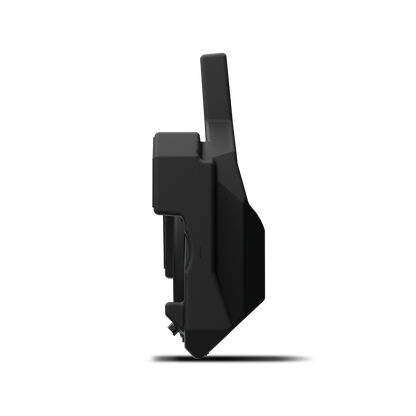

Custom fit left and right sealed subwoofer enclosures
Enclosure textured to match factory finish

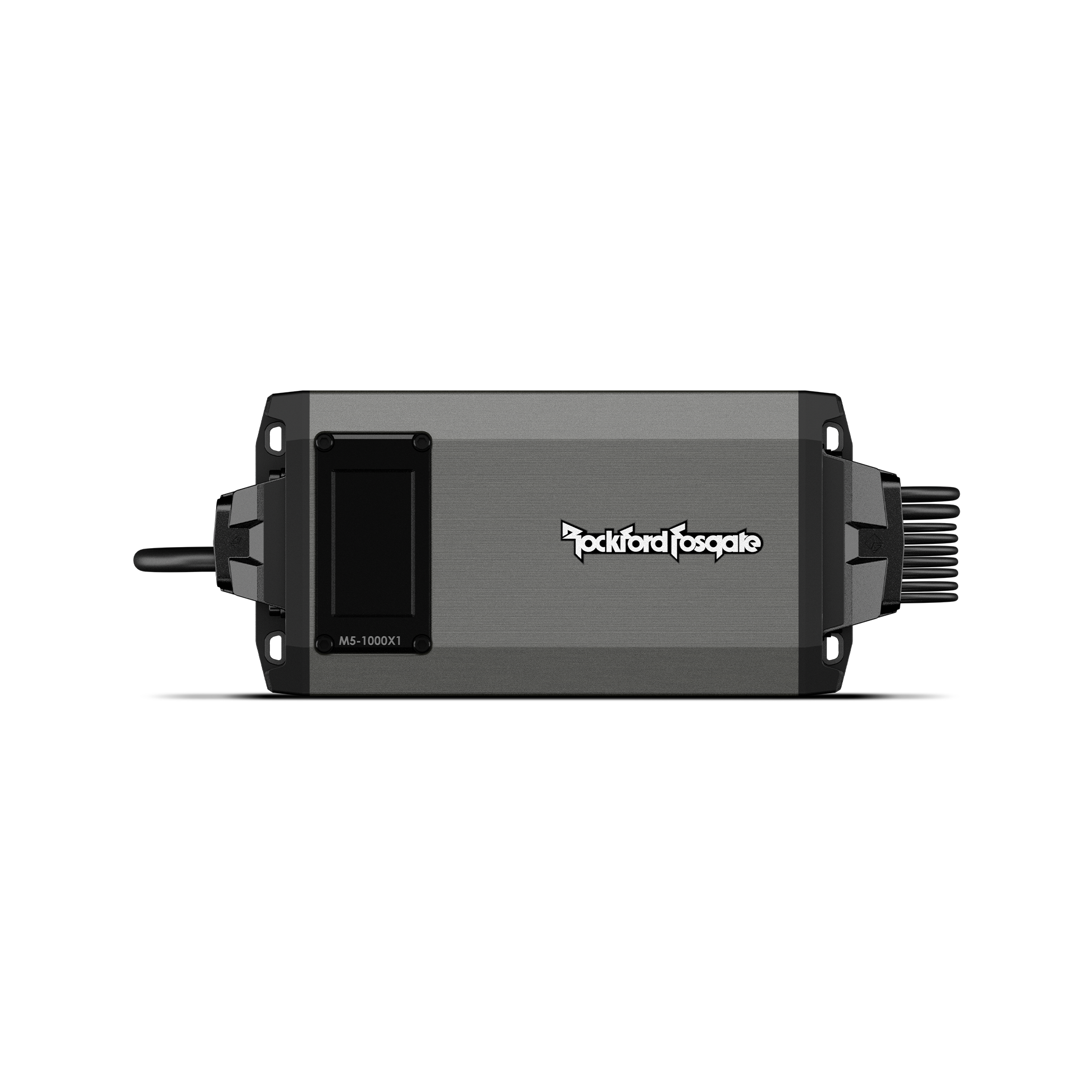

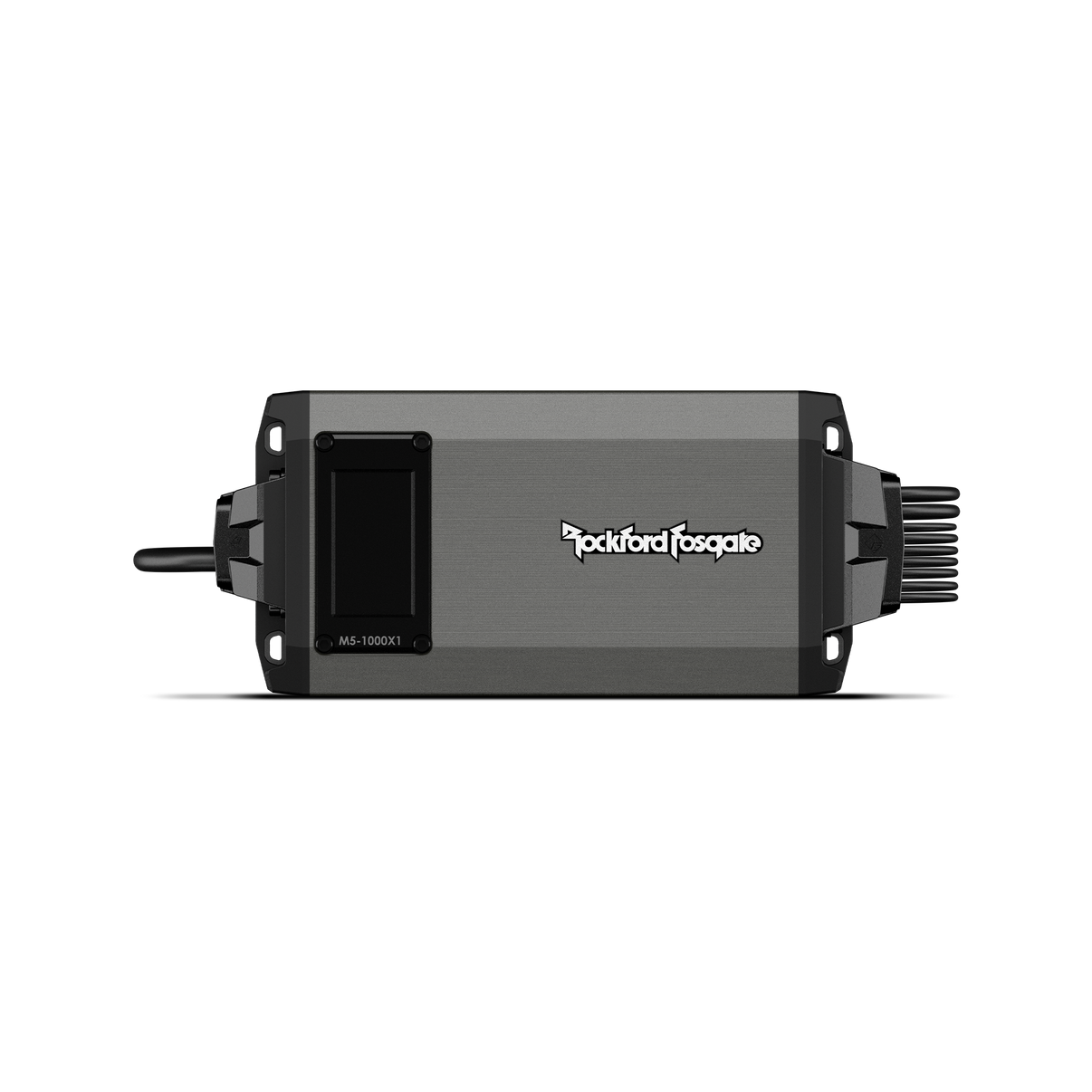

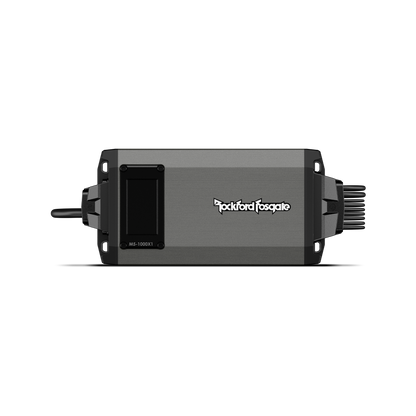

M5-1000X1: 1,000-watt mono IPX6 Element Ready™ amplifier
Vehicle specific wiring harness and mounting plate for amplifier
PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits

Videos

X317MAX-RSS Installation Tutorial

The installation tutorial covers the aftermarket Rockford Fosgate X317MAX-RSS rear subwoofer solution for select 2017+ Can-Am® MAVERICK X3 MAX models. Verify compatibility before purchase.

${{ product_video.title }}$

Technologies

Maximum Bass Performance

With 1,000 watts of output, the Element Ready™ amplifier and dual subwoofers deliver that next level ... Learn more

Maximum Bass Performance

With 1,000 watts of output, the Element Ready™ amplifier and dual subwoofers deliver that next level of off-road bass performance.

Element Ready™ | Motorsports

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration. Learn more

Element Ready™ | Motorsports

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

Plug & Play

This product is designed for rapid installation using pre-configured wiring harnesses and quick connect terminals. Learn more

Plug & Play

This product is designed for rapid installation using pre-configured wiring harnesses and quick connect terminals.

Rockford Factory Fit & Finish

Designed and engineered to compliment the factory fit and finish of your vehicle. These components are ... Learn more

Rockford Factory Fit & Finish

Designed and engineered to compliment the factory fit and finish of your vehicle. These components are purpose-built to the exact specifications to ensure best-in-class fitment and look. Specifications

CEA-2031 Compliant

Woofer Quantity

Woofer Size

10"

Woofer Series

M2D2-10IB

Nominal Impedance (ea)

2Ω (4Ω each enclosure wired in parallel to create a 2Ω amp load)

Frequency Response

20 Hz – 750 Hz

Sensitivity

90.3 dB

Power Handling (Watts RMS)

500 Watts RMS
1,000 Watts Peak

Crossover Type

Infrasonic: 30 Hz @ 12dB/Octave

Enclosure Type

Sealed

Enclosure Material

Roto-molded HDPE

Speaker Connector

2-pin Deutsch™/Amphenol™

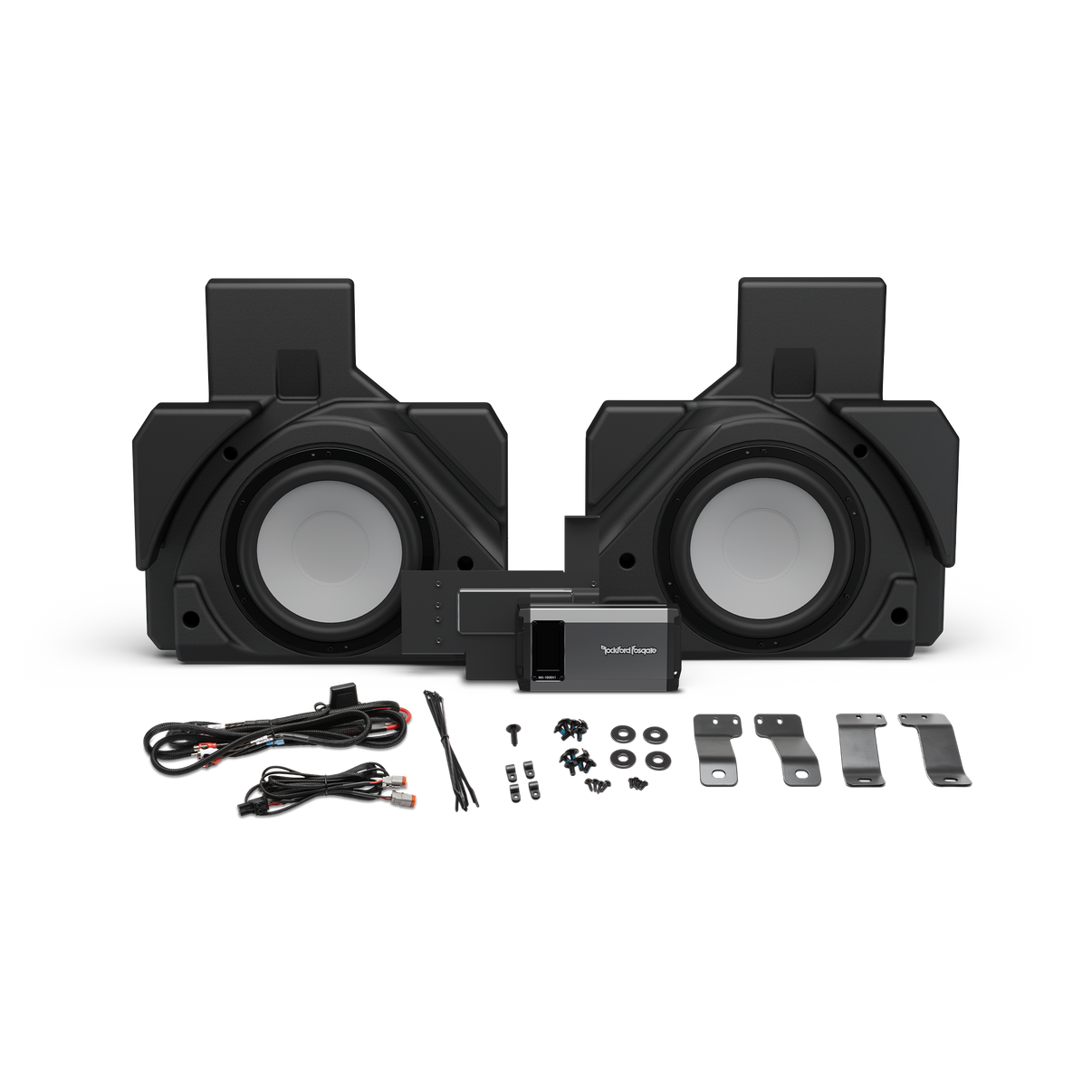

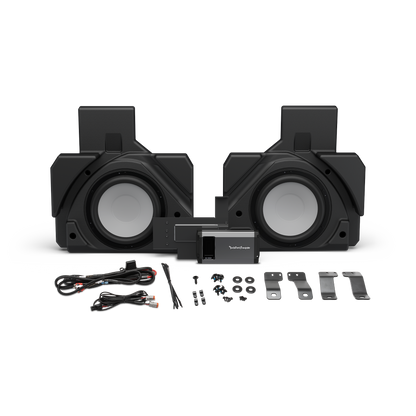

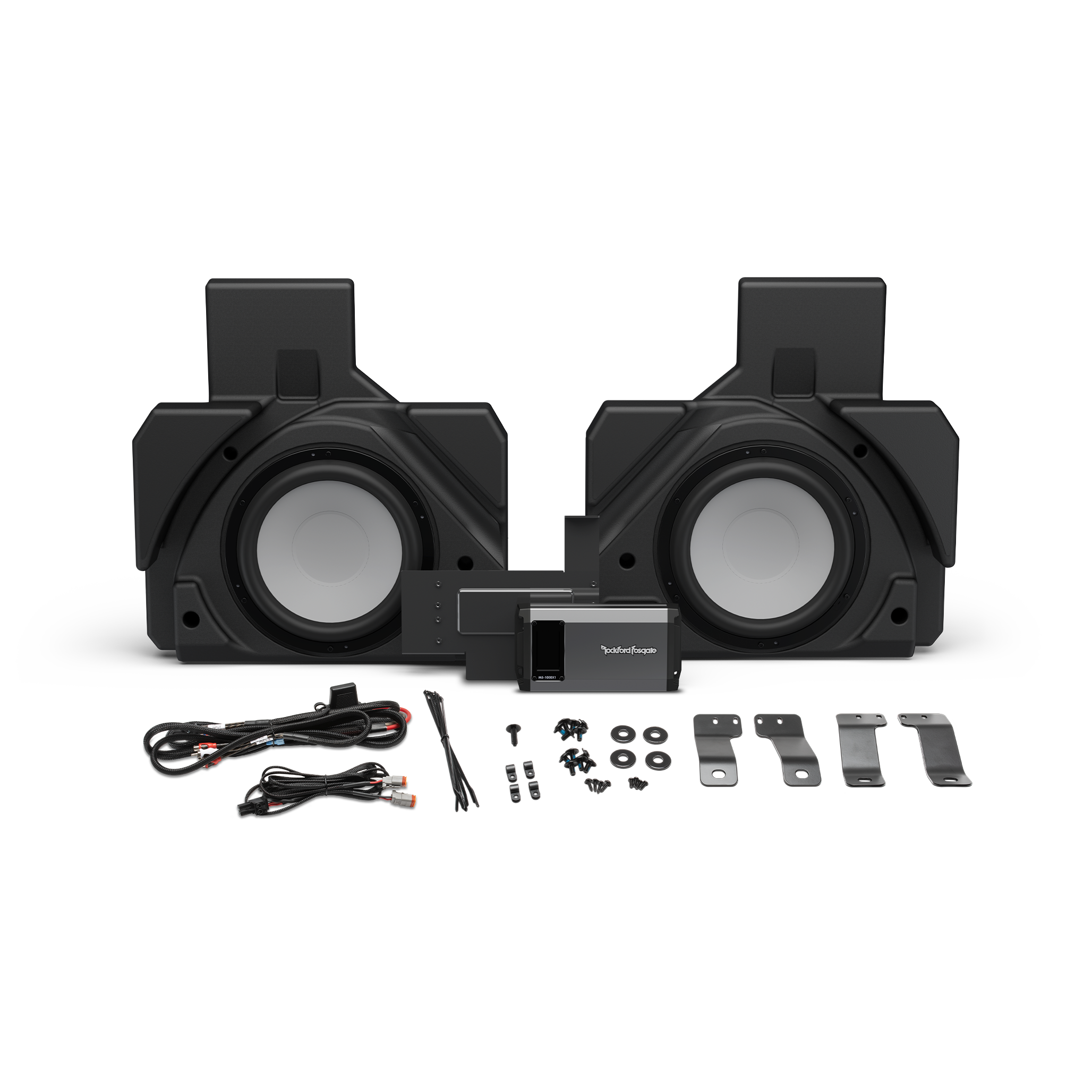

In The Box

(1) M5-1000X1 amplifier
(2) 10" pre-loaded subwoofer enclosures
(4) Enclosure mounting brackets
(4) Spacer washers
(12) Bracket and enclosure mounting screws
(4) Amp mounting screws
(1) Amp plate mounting push clip
(1) Amp Bracket
(6) Zip ties
(1) Enclosure speaker harness
(1) Amp power and input signal harness

Dimensions
Box (H x W x D)
Wedge (H x W x D1 x D2)

19.97” x 18.82” x 8.06” (each enclosure)
(608 cm x 573 cm x 245 cm)

Shipping Weight

50 Lbs (22.67 Kg) Compatibility

Compatibility
YES 4-Seat Model	NO 2-Seat Model	YES Bucket Seats	NO Bench Seats

Required Audio System
YEAR	GENERATION	MODEL	DESCRIPTION
2021⁠—current	Gen-3	X317-STG3	PMX-2, 800 Watt, Front Color Optix™ Speaker and Subwoofer Kit for Select X3 Models
2021⁠—current	Gen-3	X317-STG4	PMX-2, 800 Watt, Front Color Optix™ Speaker, Subwoofer & Rear Speaker Kit for Select X3 Models
2021⁠—current	Gen-3	X317-STG5	PMX-3, 1500 Watt, Front Color Optix™ Speaker, Dual Subwoofer and Rear Speaker Kit for Select X3 Models
2021⁠—current	Gen-3	X317-STG6	PMX-3, 1500 Watt, Front Color Optix™ Speaker, Dual Subwoofer and Rear Horn Speaker Kit for Select X3 Models
2019⁠—2020	Gen-2	X317-STAGE3	400 watt stereo, front speaker, and subwoofer kit for 2017+ Maverick X3 models
2019⁠—2020	Gen-2	X317-STAGE4	400 watt stereo, front speaker, subwoofer, & rear speaker kit for 2017+ Maverick X3 models
2019⁠—2020	Gen-2	X317-STAGE5	1000 watt stereo, front speaker, subwoofer, & rear speaker kit for 2017+ Maverick X3
2017⁠—2018	Gen-1	X3-STAGE3	400 watt stereo, front speaker, and subwoofer kit for 2017-2018 Maverick X3 models
2017⁠—2018	Gen-1	X3-STAGE4	400 watt stereo, front speaker, subwoofer, & rear speaker kit for 2017-2018 Maverick X3 models
2017⁠—2018	Gen-1	X3-STAGE5	1000 watt stereo, front speaker, subwoofer, & rear speaker kit for 2017-2018 Maverick X3 models

Can-Am^® Maverick X3 Models
MODEL	2017	2018	2019	2020	2021	2022
Maverick X3 MAX Turbo [64]	—	✔	✔	✔	—	—
Maverick X3 MAX Turbo R [64]	✔	✔	✔	—	—	—
Maverick X3 MAX ds Turbo [64]	—	—	—	—	✔	✔
Maverick X3 MAX ds Turbo R [64]	—	—	—	✔	✔	—
Maverick X3 MAX ds Turbo RR 64	—	—	—	—	—	✔
Maverick X3 MAX rs Turbo R [72]	—	—	—	✔	✔	—
Maverick X3 MAX rs Tubro RR 72	—	—	—	—	—	✔
Maverick X3 MAX X ds Turbo R [64]	✔	✔	✔	—	—	—
Maverick X3 MAX X ds Turbo RR [64]	—	—	—	✔	✔	✔
Maverick X3 MAX X mr Turbo RR [72]	—	—	—	✔	✔	✔
Maverick X3 MAX X rs Turbo R [72]	✔	✔	✔	—	—	—
Maverick X3 MAX X rs Turbo RR [72]	—	—	—	✔	✔	✔
Maverick X3 MAX X rs Turbo RR Smart-Shox [72]	—	—	—	—	✔	✔
