• System3 SB 4 and Maxxis Rampage UTV Wheel and Tire Kit
System 3 + Maxxis

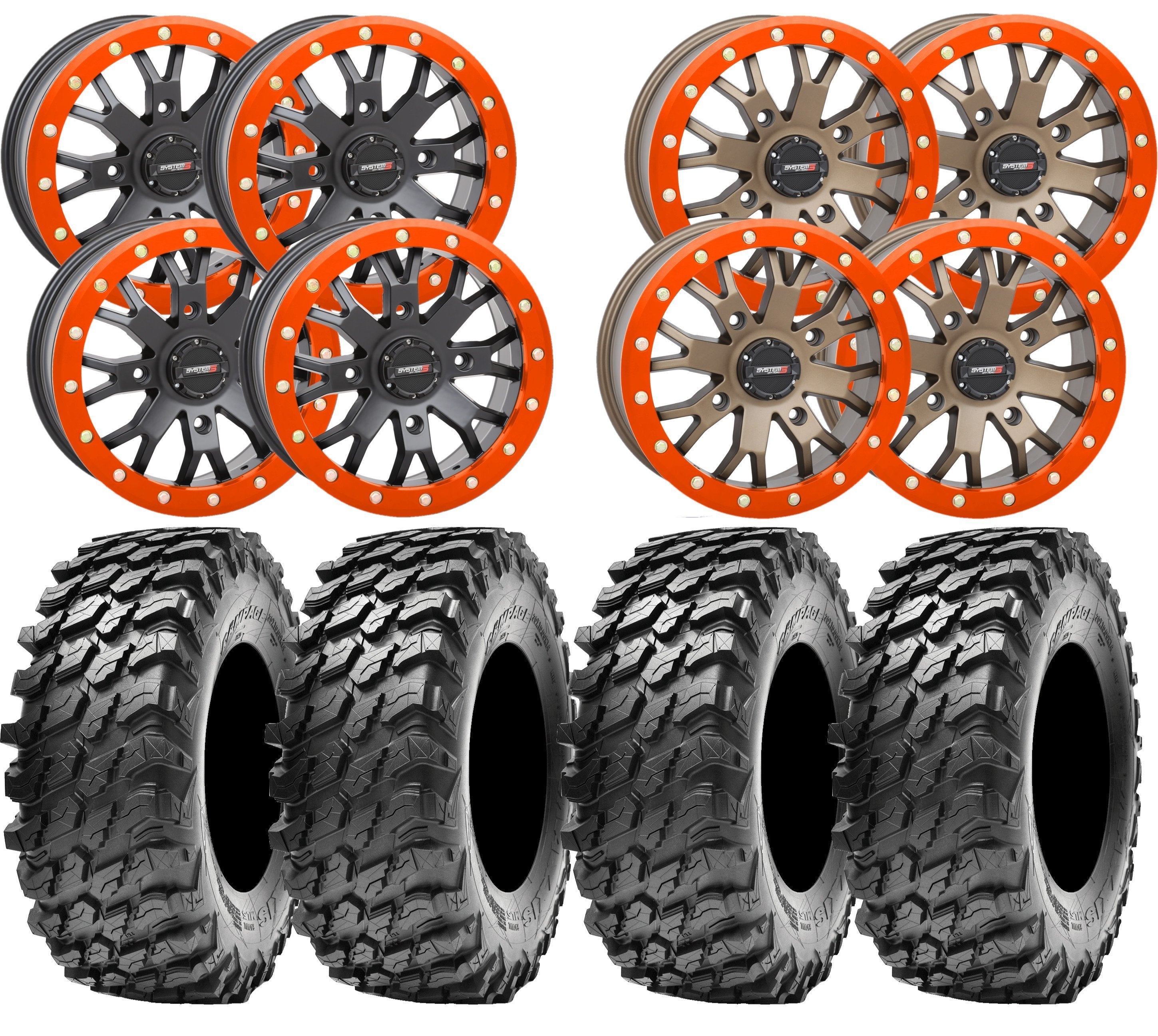

System3 SB 4 and Maxxis Rampage UTV Wheel and Tire Kit w/ custom Orange Rings

$1,944.37 USD $2,046.71 USD
5% off
SKU: 14S3-3137/TM00102900
Kit Includes 4 wheels / 4 tires / mounting / choice of lug nut color and shipping System 3 SB-4 UTV Wheels Feature: Available in 14x7 & 15x7 sizesMatte Black... Read More

View Bolt Pattern Chart

×

Bolt Pattern Chart

Bolt Pattern Chart

Pairs well with

System3 SB 4 and Maxxis Rampage UTV Wheel and Tire Kit
$1,944.37 USD
System3 SB4 14x7 ...
View Financing Options
×

PlanetsXS is proud to offer flexible financing solutions through two trusted providers, making it easier for you to get the products you want today. Whether you're upgrading your gear or making a big purchase, our financing options help you manage your budget while still enjoying the best we have to offer.

We currently offer financing via

BreadPay and Shopify's ShopPay

View more details about our financing providers HERE

View details
Kit Includes 4 wheels / 4 tires / mounting / choice of lug nut color and shipping

System 3 SB-4 UTV Wheels Feature:

Available in 14x7 & 15x7 sizes
Matte Black or Bronze finish choices
10mm billet ring with 20  5/16-inch grade 8 bolts
Styled like the popular ST-3 simulated beadlock
1,200-pound load rating
Bolt-in center cap

SB-4 14-inch Beadlock Specifications

SIZE  -  BOLT PATTERN  -  OFFSET  -  FINISH  -  PART #

14x7  -  4/137  -  6+1 (+45mm)  -  Matte Black  -  521730
14x7  -  4/137  -  4+3 (+15mm)  -  Matte Black  -  521731
14x7 - 4/156 - 6+1 (+45mm) - Matte Black - 521732

14x7  -  4/137  -  6+1 (+45mm)  -  Bronze  -  521733
14x7  -  4/137  -  4+3 (+15mm)  -  Bronze  - 521734
14x7 - 4/156 - 6+1 (+45mm) - Bronze - 521735



SB-4 15-inch Beadlock Specifications

SIZE  -  BOLT PATTERN  -  OFFSET  -  FINISH  -  PART #

15x7  -  4/137  -  6+1 (+45mm)  -  Matte Black  -  521736
15x7  -  4/137  -  4+3 (+15mm)  -  Matte Black  -  521737
15x7 - 4/156 - 6+1 (+45mm) - Matte Black - 521738

15x7  -  4/137  -  6+1 (+45mm)  -  Bronze  -  521739
15x7  -  4/137  -  4+3 (+15mm)  -  Bronze  - 521740
15x7 - 4/156 - 6+1 (+45mm) - Bronze - 521741

8-ply-rated light truck-inspired tire, engineered for performance as an all-terrain type tire.

  • 8-ply-rated radial construction
  • Exceptional tread wear
  • Specialized rubber compound for supreme traction and control
  • Light truck-based design
  • Aggressive all-terrain tread pattern

The Rampage is a true light truck-inspired tire, engineered for performance as an all-terrain type tire. Its 8-ply-rated radial carcass will exceed expectations on and off-road. The Rampage features a specialized rubber compound that provides excellent traction in west coast-style terrains as well as exceptional tread wear. With an aggressive all-terrain tread pattern and 8-ply-rated radial construction, the Rampage is built to handle abuse just like your SXS machine.



Specifications

Part Number Position Size Ply Rating Overall Diameter (in) Section Width (in) Tire Pressure/Load (psi/lbs) Rim Size (in) Tread Depth (in)
Rim Size (in) 14
TM01022100 Rear 30X10.00R14 8 30.8 9.8 546 14X7.0 19/32
TM00047600 Rear 32X10.00R14 8 32.2 10 617 14X7.0 20/32
Rim Size (in) 15
TM00068300 Rear 32X10.00R15 8 32.3 10 606 15X7.0 20/32

3-5 business days

Delivered pre-mounted and ready to install with basic tools

  • System3 SB 4 and Maxxis Rampage UTV Wheel and Tire Kit
