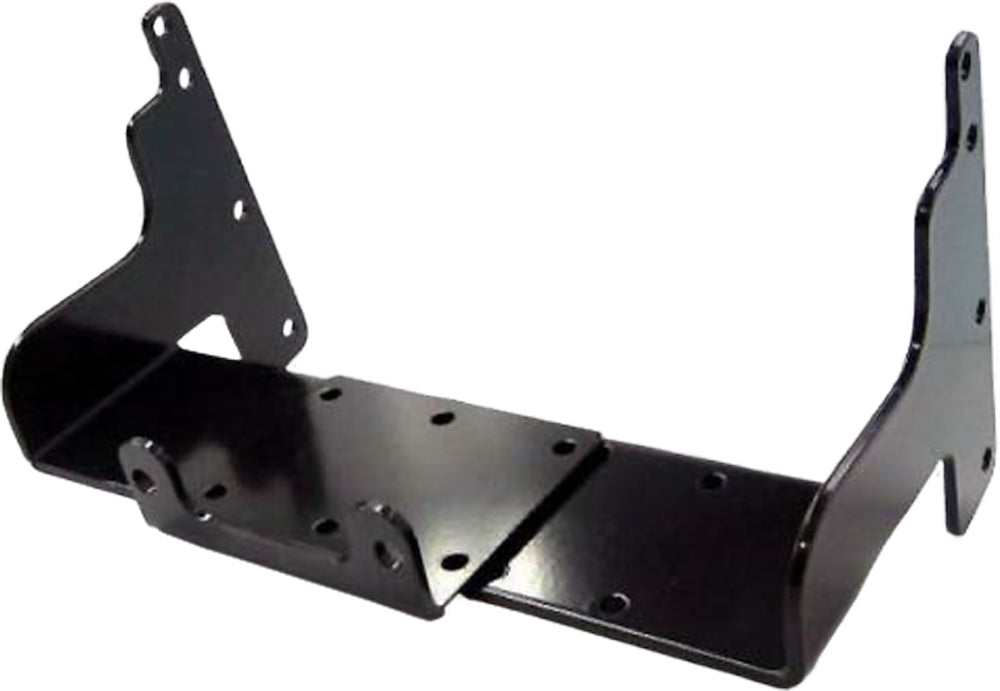

100430 Polaris Generation 4 Standard Winch Mount (Stock)

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: U45-R2 / SE45-R2
• KFI: AS-50x (requires purchase of ATV-MR)
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • Requires Roller Fairlead Bracket #101715
• WARN: AXON 35 / AXON 35-S / AXON 45RC
  • Requires Roller Fairlead Bracket #101715
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH:Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / LT2500 / LT3000 / UT3000 / LT4000ATV / LT4000 (SR)
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500lbs #2955AT
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Requires rrilling Two 3/8" holes in plate to fit this winch.
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500, 3500
• BADLAND: 2-Hole Winches : 68146 / 61258 / 61297 / 61840
• BADLAND: Standard Winches: (Click Here for Details)
• CHAMPION: 2-Hole Winches: (Click Here for Details)
• CHAMPION: ATV 4-Hole Winches: (Click Here for Details)
• CHAMPION: UTV 4-Hole Winches: (Click Here for Details)
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
• KEEPER CORP. TRAKKER: KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT: XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
  • 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
• Traveller: 1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
• QUADBOSS: RP25 / RP35

Specifications:

• 100% MADE IN USA.
• Constructed of 3/16" steel.
• Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Does NOT work with Polaris OEM Brush Guard or Double Tube Bumper.
• Works with the new OEM Deluxe Brushguard #2874785-067.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.
