Rockford Fosgate

Rockford Fosgate '17+ Can-Am X3 STG-3 Audio System(Gen-3) X317-STG3

Name: Rockford Fosgate '17+ Can-Am X3 STG-3 Audio System(Gen-3) X317-STG3
Brand: Rockford Fosgate
SKU: X317-STG3
Price: 1999.99 USD
Availability: InStock

$1,999.99 USD

SKU: X317-STG3

The easiest SXS kits to install and set up, optional Color Optix™ lighting control, and even higher performance, all to ensure an epic off-road audio experience. Features & Benefits: Plug-and-Play... Read More

Quantity:

Rockford Fosgate '17+ Can-Am X3 STG-3 Audio System(Gen-3) X317-STG3

$1,999.99 USD

View details

Description

Price Match Guarantee!

The easiest SXS kits to install and set up, optional Color Optix™ lighting control, and even higher performance, all to ensure an epic off-road audio experience.

Features & Benefits:

Plug-and-Play Design: No drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.

Element Ready™: Purpose built for the off-road environment, Rockford’s Element ReadyTM products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.

RF3 (Rockford Factory Fit & Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best in class fitment and look.

Connectivity Control: With Bluetooth connectivity, AUX and USB inputs, it’s easy to control your music or even charge your phone, no matter where the trail takes you.

Compatibility Chart: Please review below tab for fitment before purchasing.

Click to watch video New Audio Kits
Can-Am X3 Product Overview
Color Optix™ Controller
X317-STG3 Install Tutorial

Overview

STAGE-3 PERFORMANCE

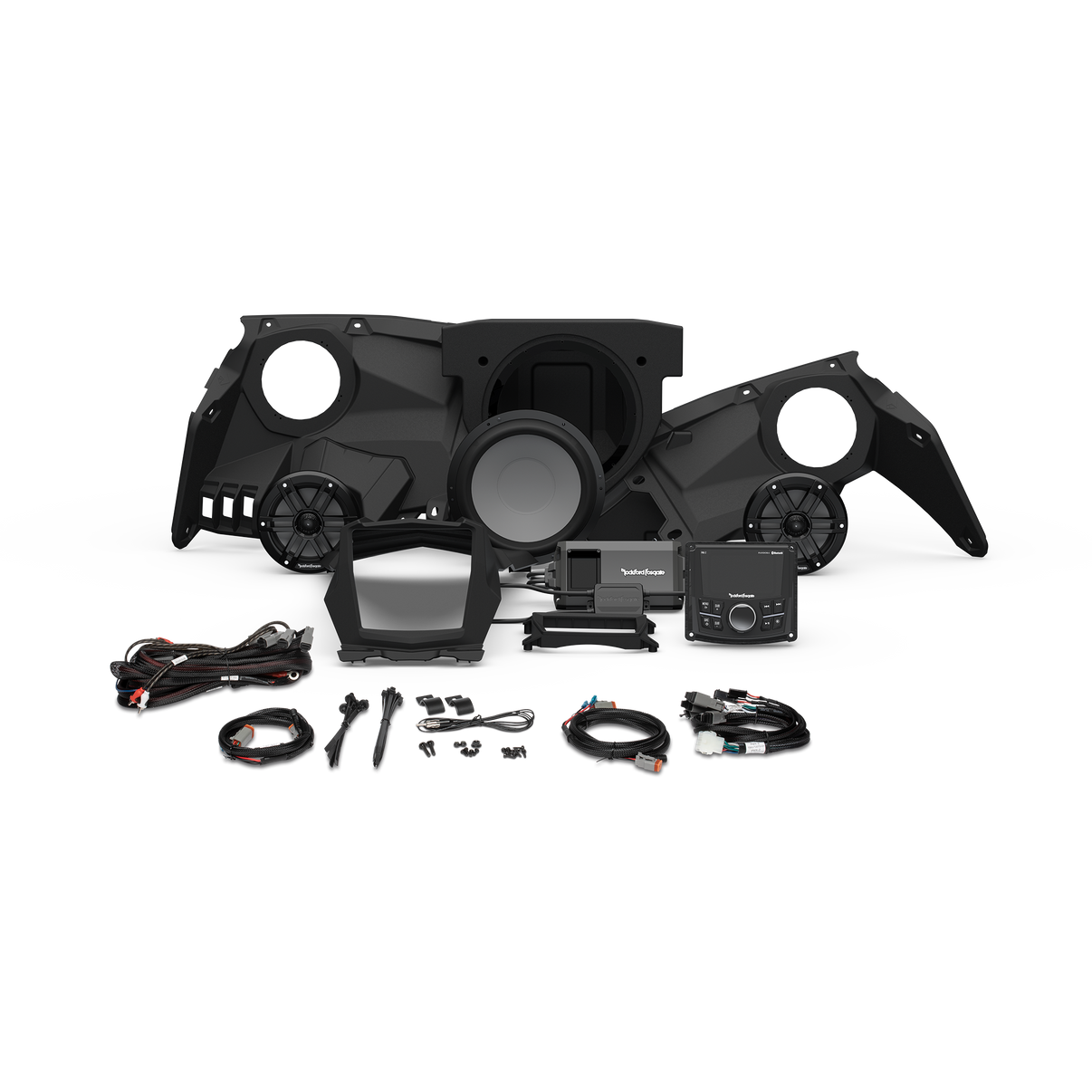

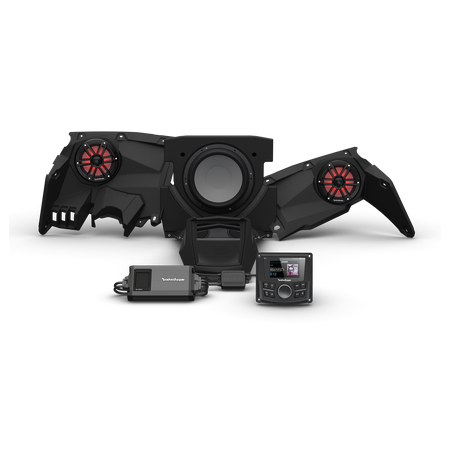

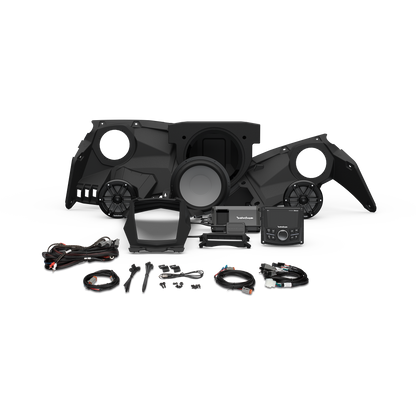

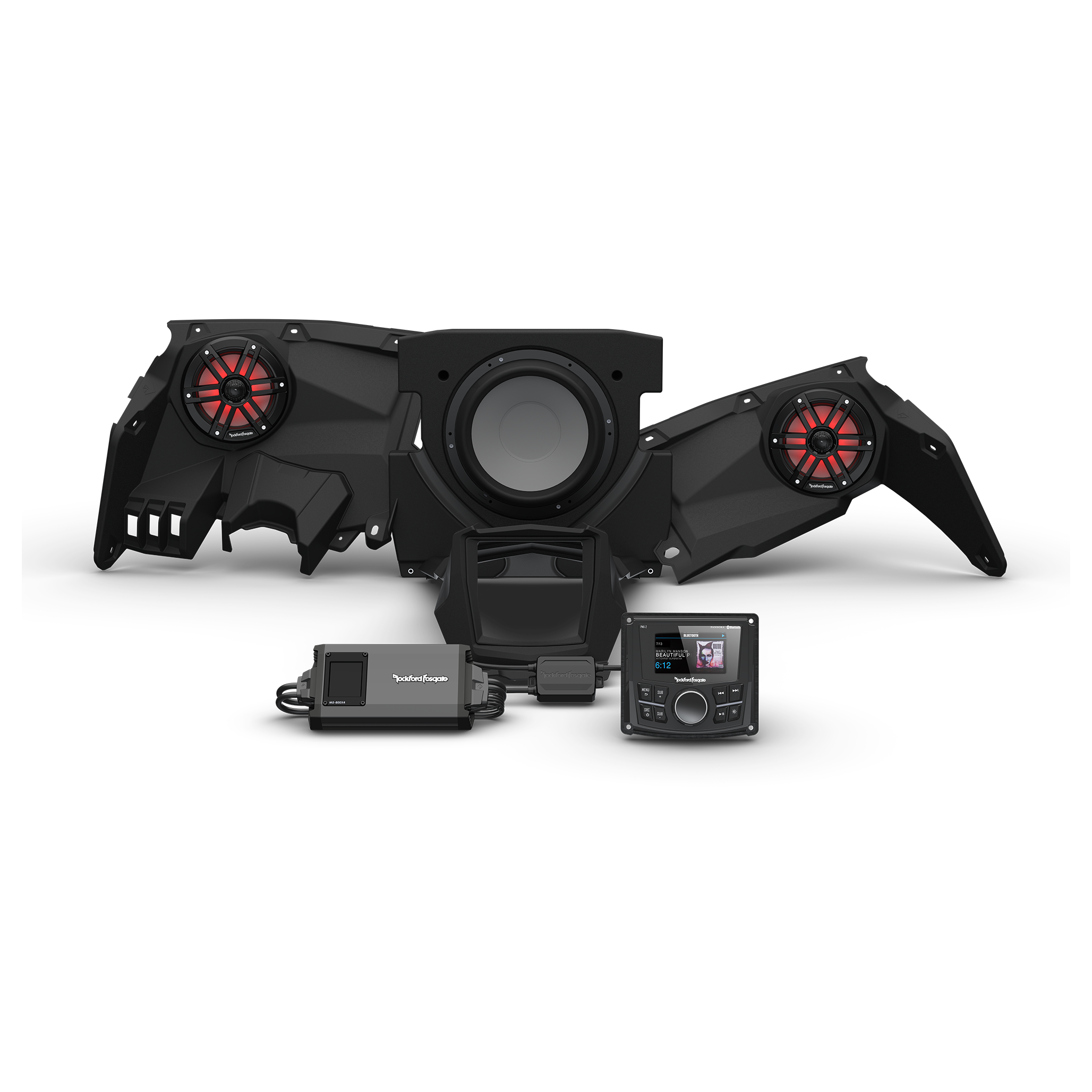

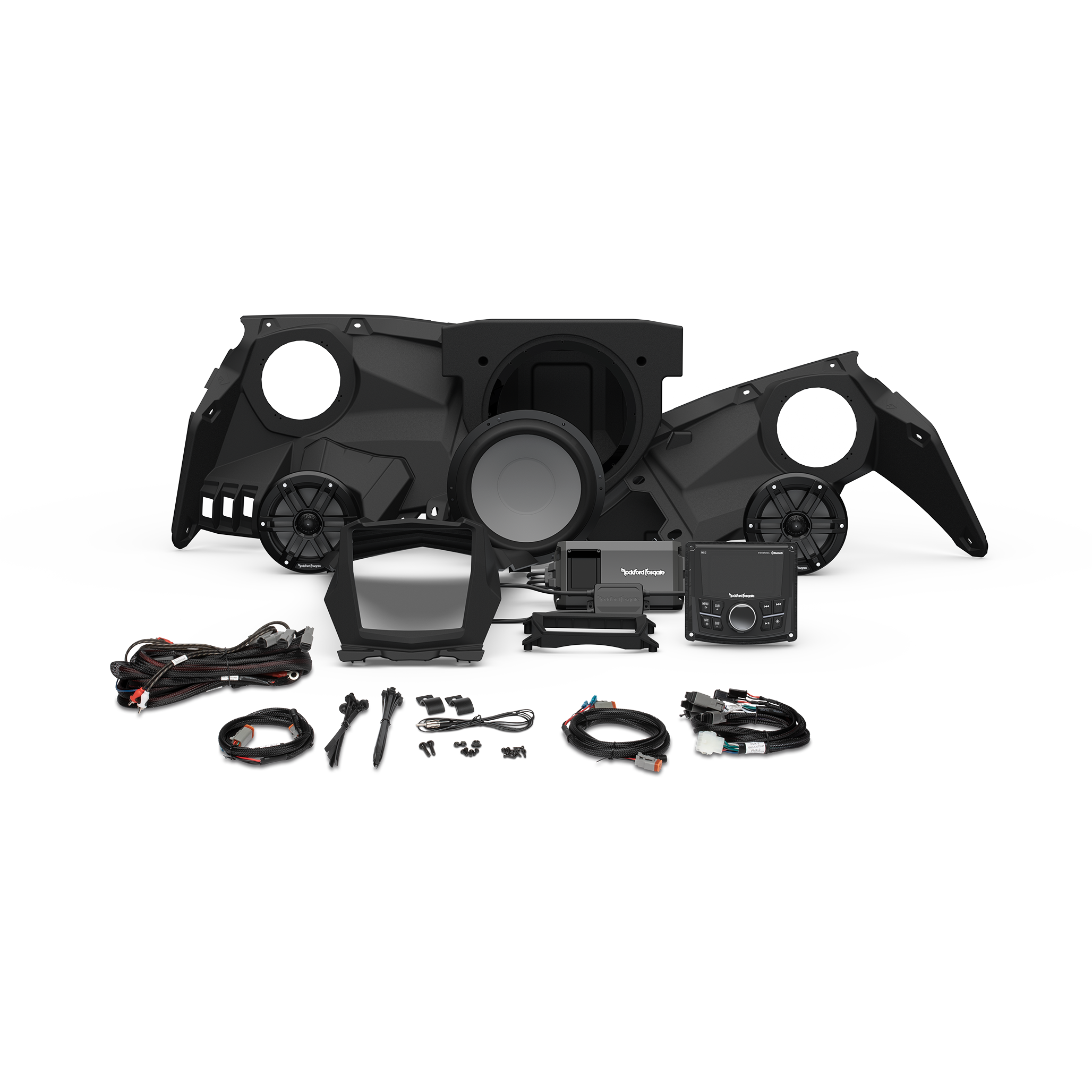

Our Gen-3 Stage 3 is boosted with bass so you can experience full spectrum audio when running the trails. System allows you to add front Color Optix™ speakers and subwoofer on select Maverick X3 models. Kit is equipped with a PMX-2 digital media receiver, upper dash kit, front speaker panels, M1 6.5” Color Optix™ speakers, 800-watt Element Ready™ amplifier, under-seat front subwoofer enclosure, M1 10” Element Ready™ subwoofer, 8-gauge wiring harness, and Color Optix™ controller. Kit supplied with all necessary mounting and installation hardware requiring minimal time and tools. Refer to our COMPATIBILITY chart to verify fitment before purchasing.

Download RF Connect™ to control the PMX-RGB:

FEATURES AT A GLANCE

Color Optix™ enabled
Complete Element Ready™ audio system
Direct connect wiring harnesses for Can-Am X3 models
PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display
Enclosures for speakers and/or subwoofer integrate with no loss of passenger space
Easy setup of audio system: amplifier preset for maximum performance without tuning
X317-DK: Dash Kit for PMX-1, PMX-2 or PMX-3 on Select Can-Am® Maverick X3 Models
X317-FSE: 6.5" Front Color Optix™ Speaker Panels with Smart-Lok for Select Can-Am® Maverick X3 Models
M1-65B: M1 6.5” Color Optix™ Marine 2-Way Speakers - Black
M5-800X4: 800-watt 4-channel IPX6 Element Ready™ amplifier
X317-M1FWE: M1 10" Element Ready™ Loaded Subwoofer Enclosure for Select Can-Am® Maverick X3 Models (no RGB Color Optix™)
X317-K8: 8 AWG Amp Installation Kit for Select Can-Am® Maverick X3 Models
PMX-RGB: Color Optix™ Light Controller with Optional App Interface
Includes wired antenna

Videos

New Audio Kits

Epic Elevated Performance! Introducing all new audio kits for select Polaris® RZR® and Can-Am® X3 models.

Can-Am X3 Product Overview

Check out the all new Rockford Fosgate Color Optix™ Audio Kits for select Can-Am® MAVERICK X3 models. This product overview will help you understand the difference between each stage kit. Which kit is the best fit for you?!

Color Optix™ Controller

The PMX-RGB Color Optix™ controller provides LED lighting control for your Can-Am Color Optix™ audio system. Pair this with our RF Connect™ smartphone app and give your system infinite control by customizing the color and lighting effects of your speakers.

X317-STG3 Install Tutorial

The 3rd generation installation tutorial on the Rockford Fosgate X317-STG3 motorsport audio installation kit for select 2017+ Can-Am® MAVERICK X3 models. Refer to our COMPATIBILITY chart to verify fitment before purchasing.

${{ product_video.title }}$

Technologies

Element Ready™ | Motorsports

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration. Learn more

Element Ready™ | Motorsports

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects. Learn more

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects.

Color Optix™ Control

Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play ... Learn more

Color Optix™ Control

Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (sold separately.)

Specifications

Speaker Qty

Amplifier Type

External

Total Power

800 Watts

Mounting Hardware

Yes

Grille/Trim Ring Included

Yes

Included In The Box

(1 ea) PMX-2
(1 ea) X317-DK
(1 pr) X317-FSE
(1 pr) M1-65B
(1 ea) M5-800X4
(1 ea) X317-M1FWE
(1 ea) X317-K8
(1 ea) PMX-RGB

Shipping Weight

48 Lbs (21.77 Kg) Compatibility

LEGEND

YES Can-Am model IS compatible with kit	NO Can-Am model NOT compatible with kit	NOT AVAILABLE Can-Am model not produced this year

FITMENT

YES 2-Seat	YES 4-Seat	YES Hi/Low Seat Level	COMPATIBLE Front Window (remove to install speakers)	POSSIBLE Rear Window (mount cans externally)	POSSIBLE Snorkel (mount cans externally)

MAVERICK X3 (2-SEAT)

MODEL	2017	2018	2019	2020	2021	2022
X3 900 HO [64]	—	✔	—	—	—	—
X3 Turbo [64]	—	✔	✔	✔	—	—
X3 Turbo R [64]	✔	✔	✔	—	—	—
X3 ds Turbo [64]	—	—	—	—	✔	✔
X3 ds Turbo R [64]	—	—	—	✔	✔	—
X3 ds Turbo RR 64	—	—	—	—	—	✔
X3 rs Turbo R [72]	—	—	—	✔	—	—
X3 rs Turbo RR 72	—	—	—	—	—	✔
X3 X ds Turbo R [64]	✔	✔	✔	—	—	—
X3 X ds Turbo RR [64]	—	—	—	✔	✔	✔
X3 X mr Turbo [64] ¹	—	✔¹ ³	✔¹ ³	✔¹	✔¹	—
X3 X mr Turbo R [72] ¹	—	✔¹ ³	✔¹ ³	—	—	—
X3 X mr Turbo RR 64	—	—	—	—	—	✔
X3 X mr Turbo RR [72]	—	—	—	—	✔	✔
X3 X mr Turbo RR [72] ¹	—	—	—	✔¹	✔¹	—
X3 X rc Turbo [64]	—	✔	✔³	✔	✔	—
X3 X rc Turbo R [72] ²	—	X²	X²	—	—	—
X3 X rc Turbo RR 64	—	—	—	—	—	✔
X3 X rc Turbo RR [72] ²	—	—	—	X²	X²	X²
X3 X rs Turbo R [72]	✔	✔	✔³	—	—	—
X3 X rs Turbo RR [72]	—	—	—	✔	—	✔
X3 X rs Turbo RR Smart-Shox [72]	—	—	—	—	✔	✔

MAVERICK X3 MAX (4-SEAT)

MODEL	2017	2018	2019	2020	2021	2022
Maverick X3 MAX Turbo [64]	—	✔	✔	✔	—	—
Maverick X3 MAX Turbo R [64]	✔	✔	✔	—	—	—
Maverick X3 MAX ds Turbo [64]	—	—	—	—	✔	✔
Maverick X3 MAX ds Turbo R [64]	—	—	—	✔	✔	—
Maverick X3 MAX ds Turbo RR 64	—	—	—	—	—	✔
Maverick X3 MAX rs Turbo R [72]	—	—	—	✔	✔	—
Maverick X3 MAX rs Tubro RR 72	—	—	—	—	—	✔
Maverick X3 MAX X ds Turbo R [64]	✔	✔	✔³	—	—	—
Maverick X3 MAX X ds Turbo RR [64]	—	—	—	✔	✔	✔
Maverick X3 MAX X mr Turbo RR [72] ¹	—	—	—	✔¹	✔¹	✔¹
Maverick X3 MAX X rs Turbo R [72]	✔	✔	✔³	—	—	—
Maverick X3 MAX X rs Turbo RR [72]	—	—	—	✔	✔	✔
Maverick X3 MAX X rs Turbo RR Smart-Shox [72]	—	—	—	—	✔	✔

Charts contain newer naming convention — started in 2022 — featuring 64" and 72" width models. Older models denote [width] in name to clarify make/model/year progression.
1 Snorkel prevents stages with rear moto-cans from being installed inside roll-cage, must be installed outside roll-cage.
2 Intrusion Bar introduced in 2018, causes (FSE) front speaker clearance issue.
3 Smart-Lok™ introduced in 2018, requires 2nd (RFX317-FSE) or 3rd generation (X317-FSE) front speaker panels. Support

Knowledge Base Articles

PMX source unit does not fit UTV dash kit - Advisory

Show all Knowledge Base topics

Ask Our Experts

Chat Currently Unavailable
Email Us
Return Authorization

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
- View Process
- Submit Warranty Claim
Return Authorization Process

Diagnose First

Prior to requesting an RA, try to diagnose the failure. Many products we receive are sent back with No Trouble Found, usually due to incorrect installation. Use our RFTECH:Knowledge Base for troubleshooting assistance.

Contact Customer Support

Please call us during normal business hours at 1-800-669-9899 (option #1) and be prepared with the following information:

First and Last Name with complete Shipping Address

Product Name (T0D415)

Serial Number (12 or 13 digit number)

Failure Diagnosis (no output, no power LED, etc.)

Scanned copy of Original Receipt emailed to cs.support@rockfordcorp.com (dealer name, purchase date, and item purchased must be legible)

Credit/Debit Card (if paying for out-of-warranty claims)

No money orders or checks.

Shipping Instructions

When shipping your product, your package MUST have the following information:

RA# Printed Outside of Box (as large as possible)

Copy of Original Receipt

Shipping Address

Ship your product (UPS or FedEx preferred) to the following:

Rockford/ AJR International
300 Regency DR
Glendale Heights, IL 60139
RA#:_______________________
