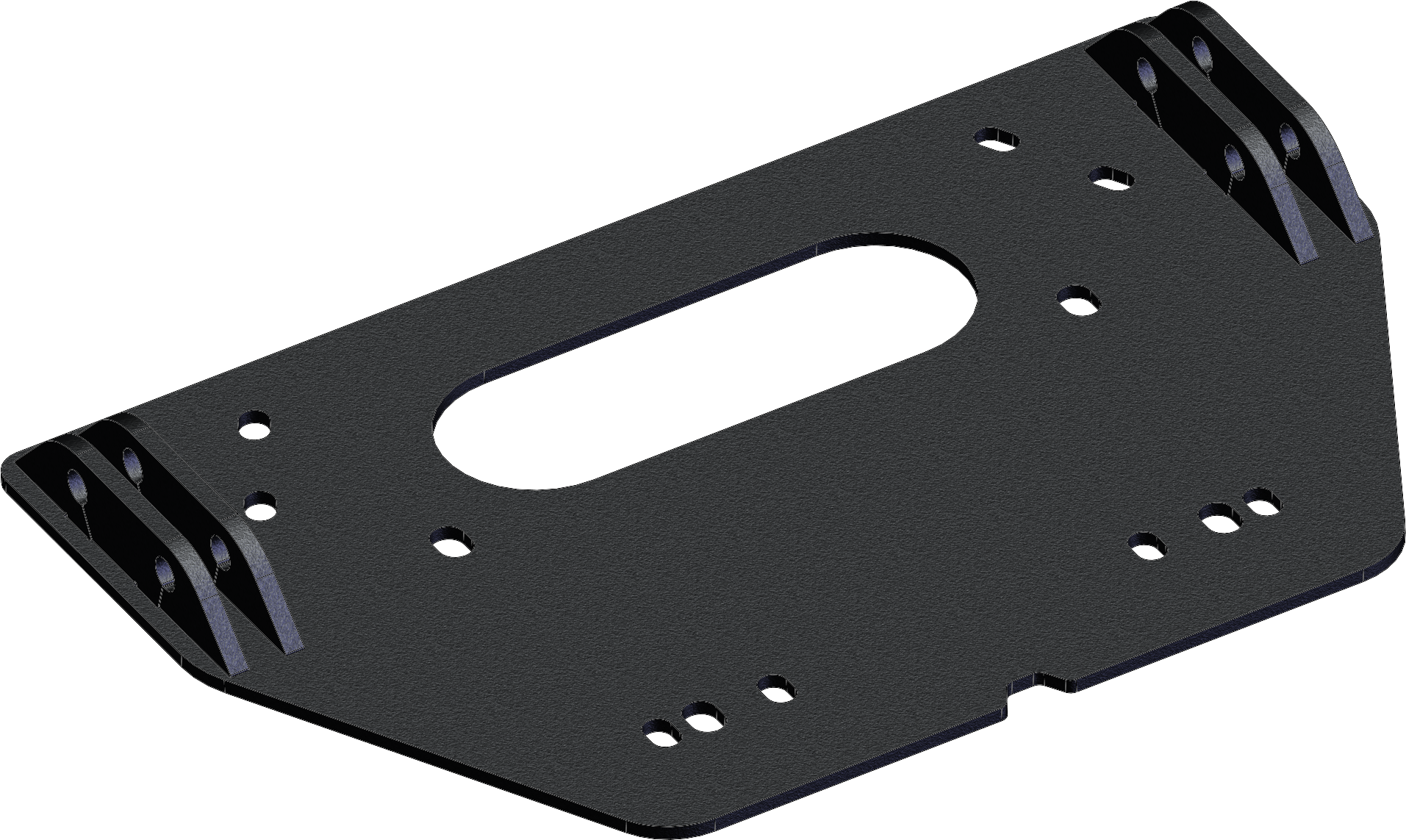

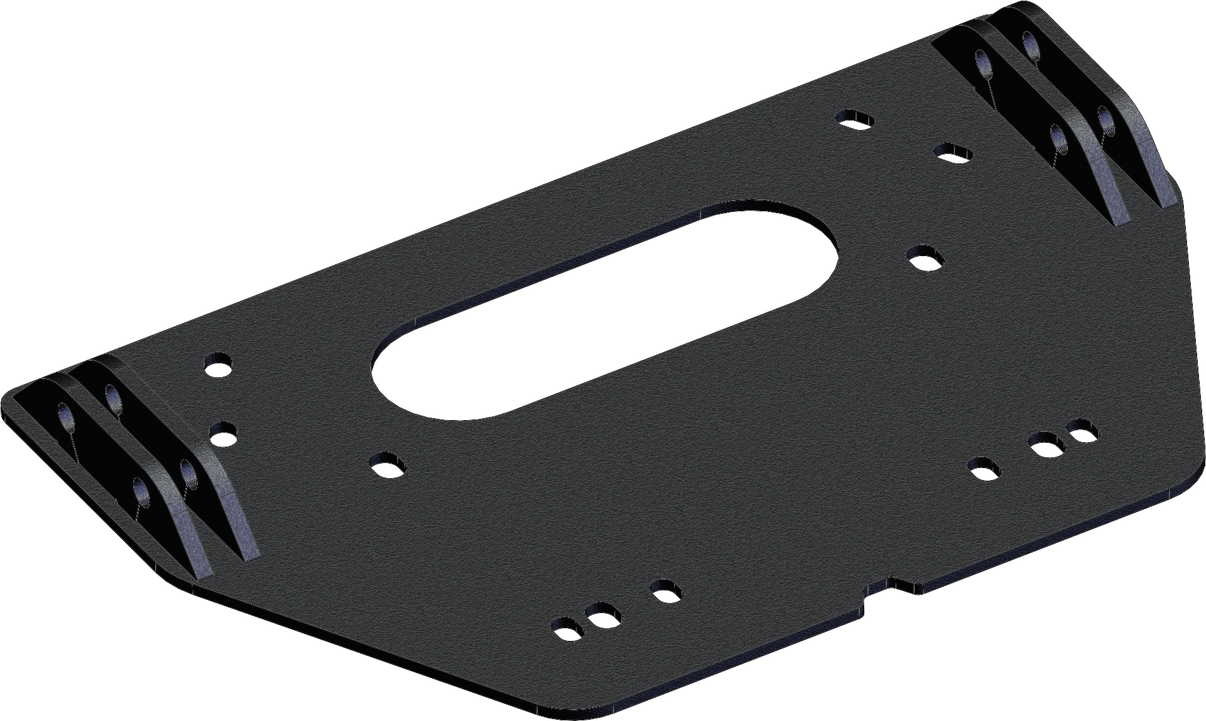

ATV Mid-Mount Plow Mount:
NOTE: This Mount is designed to use the #105000 ATV push tubes.
The figures below show the critical dimensions of the ATV MID-Mounting System.
Most mounts will not have the same shape or design as the mount shown below, but the listed dimensions stay the same.
KFI ATV Plow Mount Application Chart
| Arctic Cat ATV Model * | Year |
|---|---|
| 500 ALTERRA 4x4 | 2016 |
| 500 XR (ALTERRA) 4x4 | 2015 |
| 550 ALTERRA 4x4 | 2016 |
| 550 XR (ALTERRA) 4x4 | 2015 |
| 570 ALTERRA (XT / EPS) | '19-20 |
| 700 ALTERRA (XT) 4x4 | '16-21 |
| 700 XR (ALTERRA) 4x4 | 2015 |
| Tracker ATV Model * | Year |
|---|---|
| 570 (EPS) | ‘20-21 |
| 700 EPS | ‘20-21 |
Specifications:
- 100% MADE IN USA
- Designed for the #105000 ATV push tube with pin up widths of 14.50" (Center on Center) using 3/8" Pin (see image example)
- Constructed of 3/16" and 1/4" Grade 50 steel
- Unlike all other competitors mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- All mounting hardware included.
- Complete installation instructions included.
- Satisfaction guaranteed.

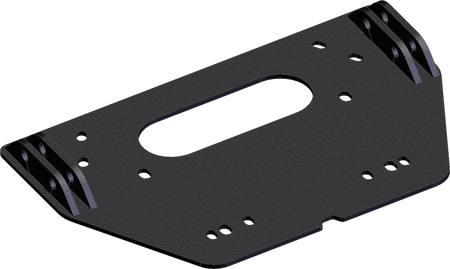

106410 Plow MNT ATV- Arctic...
