Can-Am Defender HD11 6" Portal Gear Lift

Enhance Your Defender HD11 with GDP Portals
Looking to get more out of your Can-Am Defender HD11 SuperATV's 6" Portal Gear Lift gives you 6" of lift and built-in gear reduction for extra torque, better clearance, and the ability to run bigger tires without stressing your ride. You can pick 30% or 45% gear reduction depending on how you like to ride, and if you want it really tough, go with the billet aluminum housing over cast housing.

Tackle Tough Trails
Choosing the right gear reduction is the most important thing when getting portals. A 30% gear reduction gives you faster speeds and solid torque, while a 45% reduction is perfect for bigger tires and tough trails, giving you the extra power and control to dominate any terrain.

No Stress on Your Drivetrain
GDP Portals shift gear reduction to the wheel hubs, taking the pressure off your Defender HD11's drivetrain. Less strain on your axles, driveshaft, differential, and transmission means less wear and fewer expensive repairs down the road.

Strength that Can't Be Beat
Our GDP Portals are built to take a beating. You can choose from cast or billet aluminum housing with rugged 5/16" steel alloy backing plates. Ready for abuse and backed by a lifetime warranty, they're engineered to last.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Top-Tier Customer Service
Not sure which portals are right for your ride Don't worry we've got the best customer service in the business ready to help. Call us, and we'll get you dialed in.

6" Portal Gear Lift Includes:

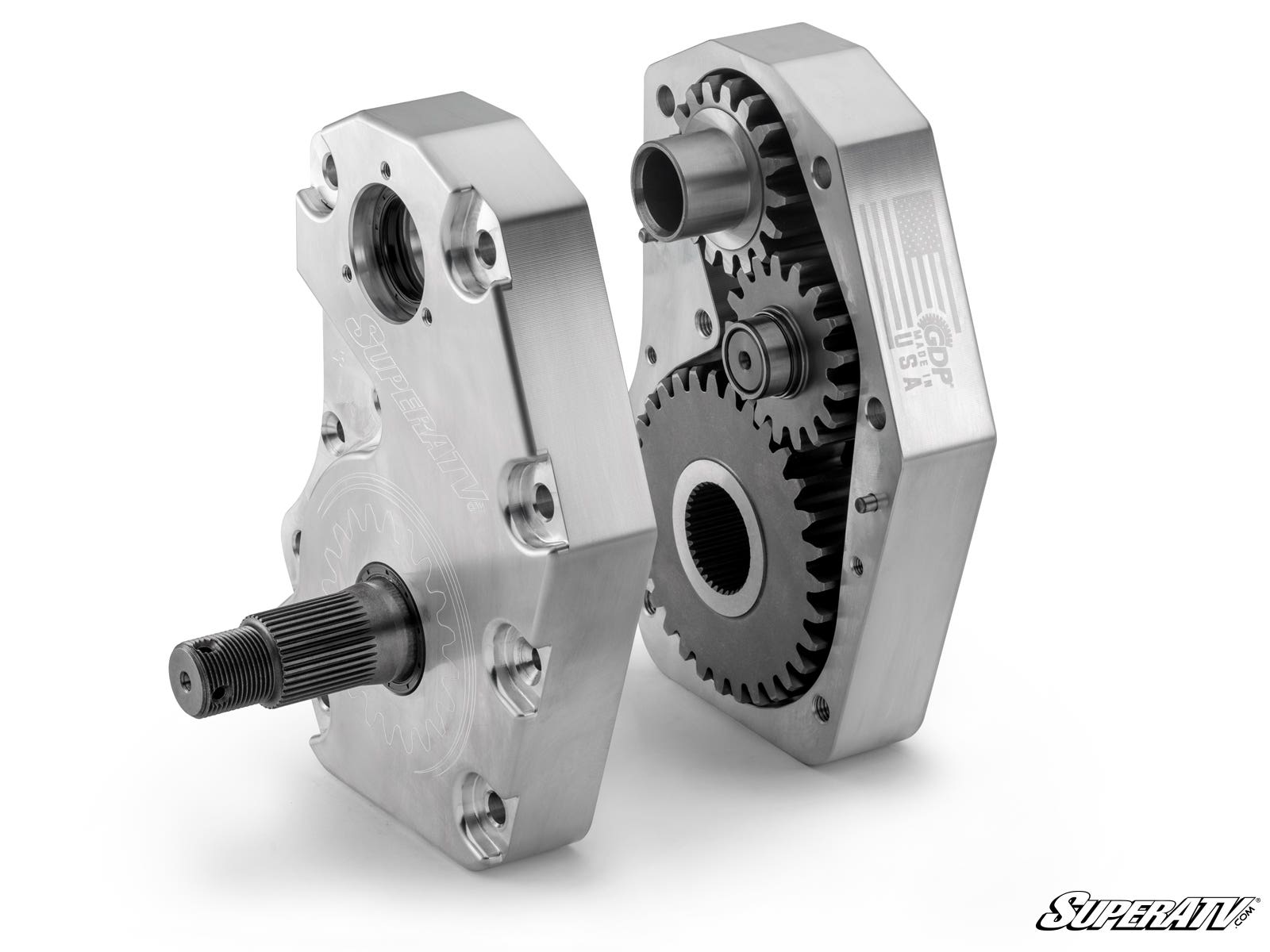

• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, Thermo-Tork gaskets, and thrust bearings
• (4) Universal hubs and stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates
• (6) Brake caliper mounts
• (12) Bushings
• (6) Steel sleeves
• (16) Shims
• Extended brake lines with parking brake and brake cable brackets
• All required hardware, including recessed castle nut socket

Max Tire Size Recommendations for 6" Portal Gear Lift
Max Tire Size	Required Suspension Setup with 6" Portals
34"	Stock
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator .			Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Patent # 11,299,042

Patent # 11,318,787

Fitment
