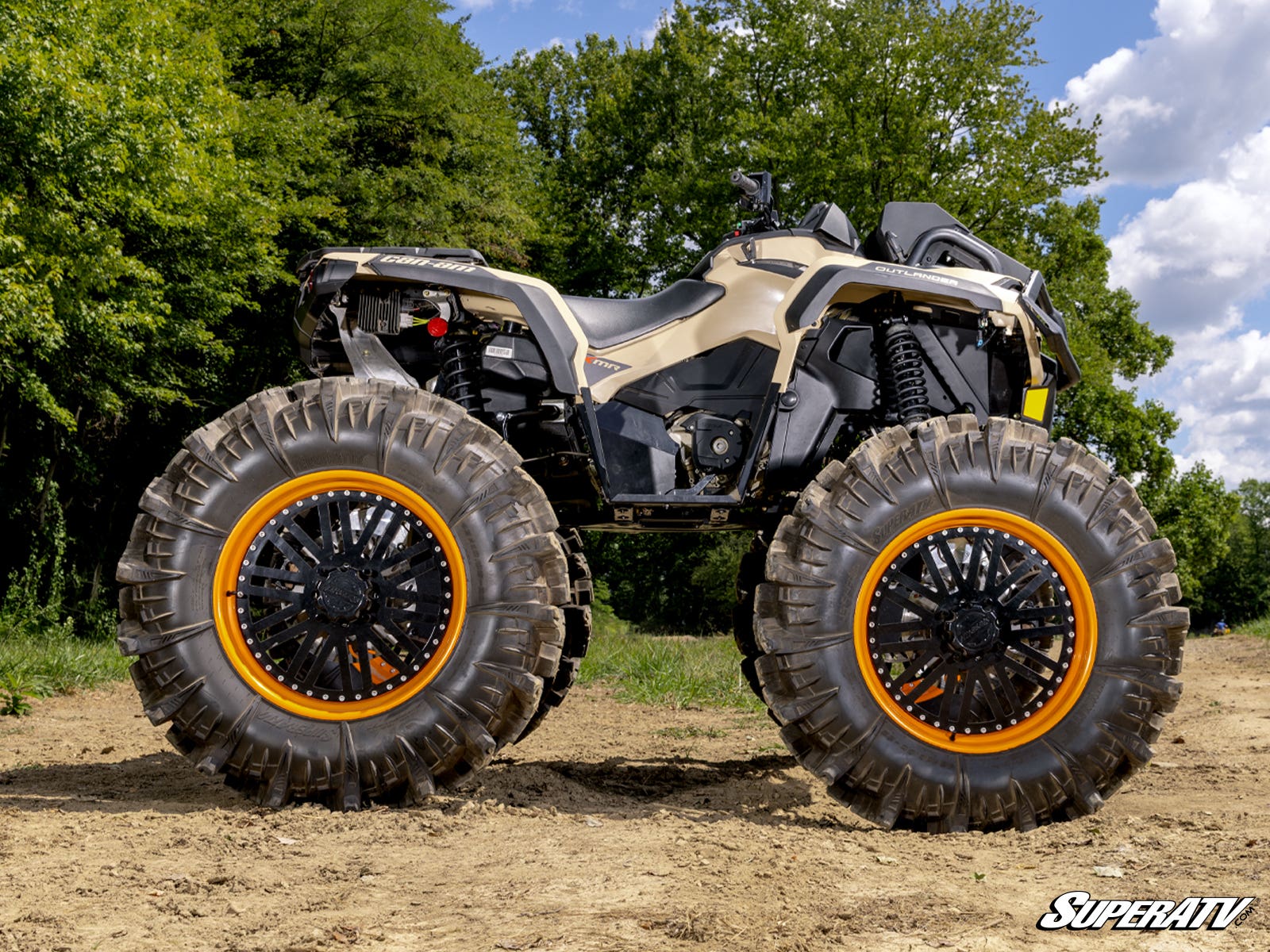

8" GDP Portals for the Can-Am RenegadeTransform your four-wheeler into an absolute monster with SuperATV's Can-Am Renegade 8" Portal Gear Lift. You'll be able to dominate mud, rocks, and other obstacles with strength and lift that seem almost impossible. And the muscular 60% gear reduction paired with your preference of a cast or billet housing will make you completely unstoppable.
An Incredible Upgrade with a 60% Gear ReductionWhen you're diving into deep, thick mud, you can't sacrifice power. Our 60% gear reduction restores the low-end power that big tires typically take away. That means your Renegade will have the power to plow through the deepest mud even when cranking huge, heavy tires.
Protects Your DrivetrainWith the gear reduction built into the wheel hub, our GDP portals take the load off the rest of your drivetrain. They take on the tough work, protecting parts like your axles, differential, driveshaft, and transmission from straining to move large tires.
GDP Portals are UnmatchedOur GDP 8" Portals are built to handle any abuse you put them through. You can choose between cast or billet aluminum. They're both ultra-strong and ready to take a beating. Plus, the strong steel alloy plates give them extra armor.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good we know because we tested them
Advanced Gaskets, Seals, and BearingsOur portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
The Customer Service You DeserveWe have unbeatable customer service. They're here to help you decide which 8" Portal Gear Lift works best for you and your riding style. Go ahead give us a call today.
Can-Am Renegade 8" Portal Gear Lift Includes:
- (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting brackets
- (16) Shims
- (12) Rear A-arm bushings
- (6) Steel sleeves
- Extended brake lines
- All required hardware, including recessed castle nut socket
| Can-Am Renegade Max Tire Size |
|---|
| Max Tire Size | Required Suspension Setup with 8" Portals |
| 32" | Stock suspension |
| 35" | Can-Am Renegade Footwells |
| 39" | Can-Am Renegade 5" Lift Kit |
| 45" | Footwells + Lift Kit |
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator . |
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
Patent # 8,985,264, 11,015,681, 11,299,042, 11,554,662, 12,005,776
Fitment
- Can-Am Renegade 570 : 2019+
- Can-Am Renegade 650 XMR : 2022+
- Can-Am Renegade 850 : 2019+
- Can-Am Renegade 850 XXC : 2019+
- Can-Am Renegade 1000 XMR : 2019+
- Can-Am Renegade 1000 XXC : 2019+
NOTE: This portal kit requires the use of SATV rear trailing arms
Wheel Requirements:
- 22" or larger wheel required
- Wheels cannot exceed 4" backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
