Cognito 22-24 Toyota Tundra (w/ Rear Coil Springs) Standard 3-Inch Leveling Kit

We then brought in a customer/friend’s truck that was a 2WD 2022 Tundra SR5 with TRD Off-Road package including the red Bilstein shocks and the coil sprung rear end. This truck already had a competitor’s leveling lift kit on it, I won’t call them by name but it sure seems like everyone with a new Tundra is using them, it is one of those kits that has a ½” thick strut spacer along with a taller billet preload collar, and in the rear has a ¾” thick coil spacer. That company has great reviews for this product, and I am about to tell you why I am surprised they did. This type of lift is commonly called a “Preload Collar Lift Kit”. This truck did not ride very good, in fact it rode worse than stock in the front. The reason is, this type of kit increases preload while decreasing droop travel, which deteriorates ride quality. This truck had only 1-3/4” of droop travel, no wonder it didn’t ride very good, plus it was only about 1-3/4”-2” taller than stock in the front. We removed the previous lift kit by removing the taller preload collars from the front Bilstein struts/shocks and used the stock collars instead, then removed the ½” thick strut spacer and replaced it with the Cognito strut spacer which is significantly taller. We went ahead and left the rear end alone that already had the 3/4" coil spacers. The result was 2.5” of front lift over stock, and a ride that was night and day better. I believe this truck only yielded 2.5” of front lift rather than 3” like my truck, because it was a 2wd. This truck with the Bilstein shocks rode even better than my truck that had the AVS shocks. Anyone can make parts or have parts made, but it is important to understand suspension if you are going to manufacture and brand suspension parts, please choose a brand that knows what they are doing (wink wink) so you can make sure you are getting value in return for your money.

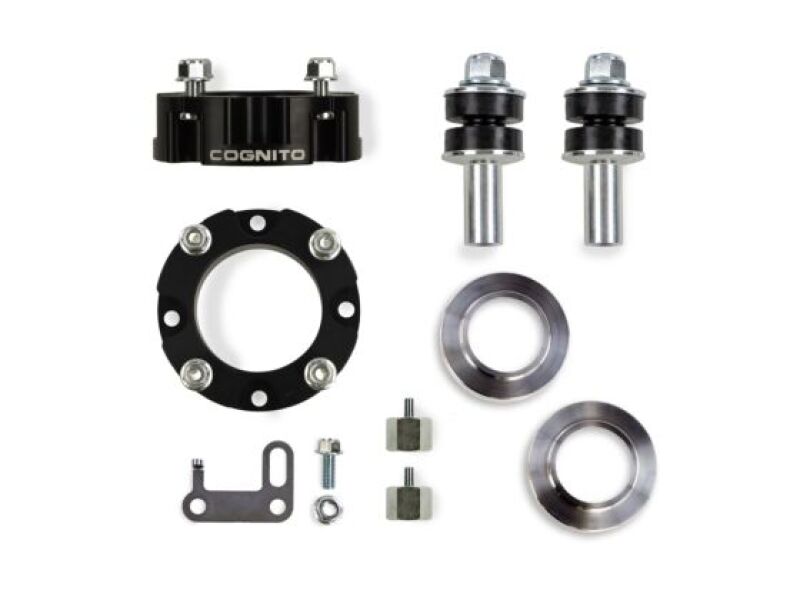

• Maintains proper amount of droop travel to ride as good or better than stock
• 3" of front lift via anodized billet aluminum strut spacers
• Added 1/4" of front droop travel from the geometry change
• Increase in wheel travel over stock: 5% front, 30% rear
• 1" of rear lift via billet aluminum coil spacers
• Rear brake line extension bracket
• Rear shock stem extensions
• Front bump stop spacers
• 4-hour DIY install time
• Uses the OEM shocks

Fits:
Toyota Tundra 1794 Edition 2022
Toyota Tundra 1794 Edition 2023
Toyota Tundra 1794 Edition 2024
Toyota Tundra Capstone 2022
Toyota Tundra Capstone 2023
Toyota Tundra Capstone 2024
Toyota Tundra Limited 2022
Toyota Tundra Limited 2023
Toyota Tundra Limited 2024
Toyota Tundra Platinum 2022
Toyota Tundra Platinum 2023
Toyota Tundra Platinum 2024
Toyota Tundra SR 2022
Toyota Tundra SR 2023
Toyota Tundra SR 2024
Toyota Tundra SR5 2022
Toyota Tundra SR5 2023
Toyota Tundra SR5 2024
