CANAMX3  |  Can-Am X3 2017+ Billet Aluminum 3-PC Radius Rod Plate Kit

Product #30010RR91200

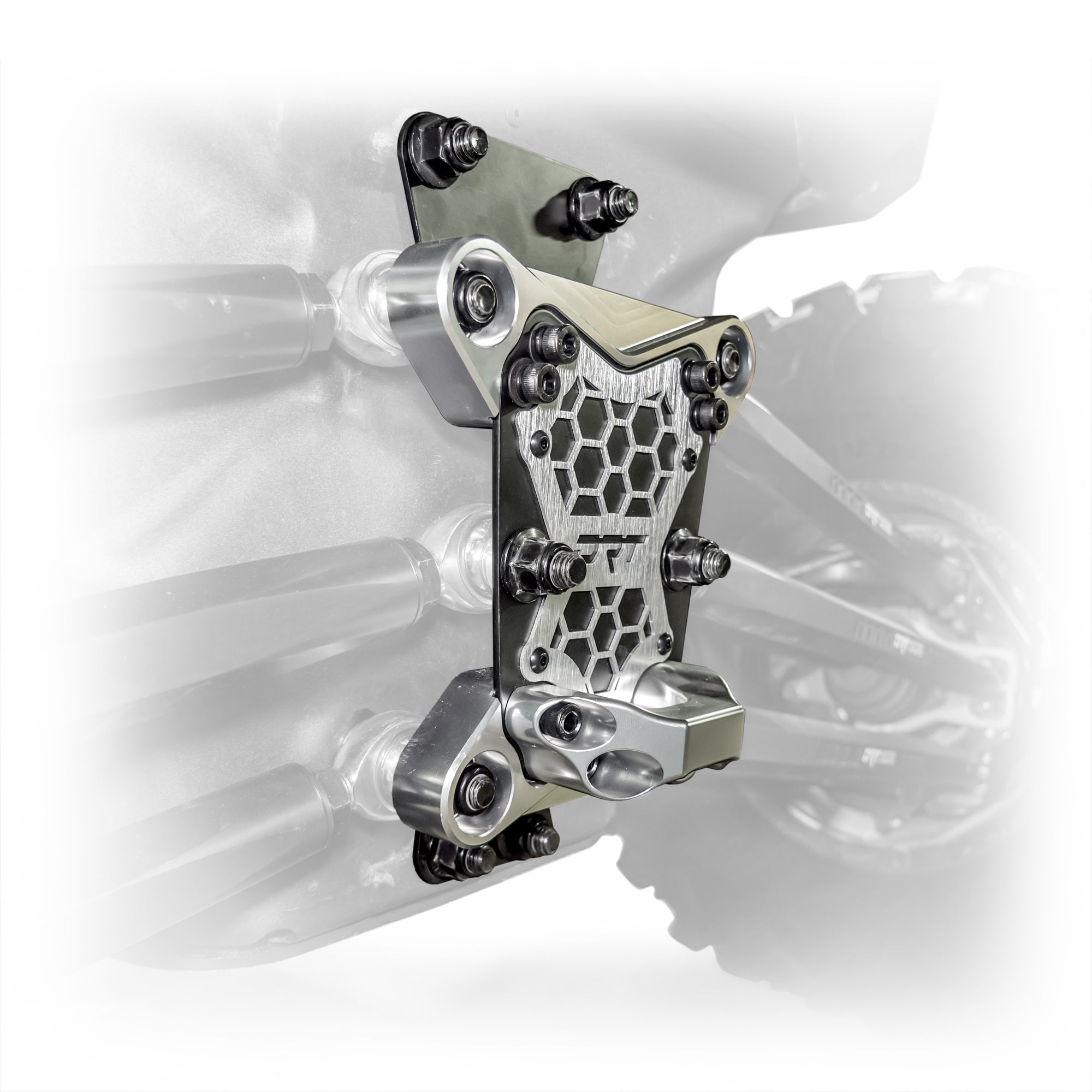

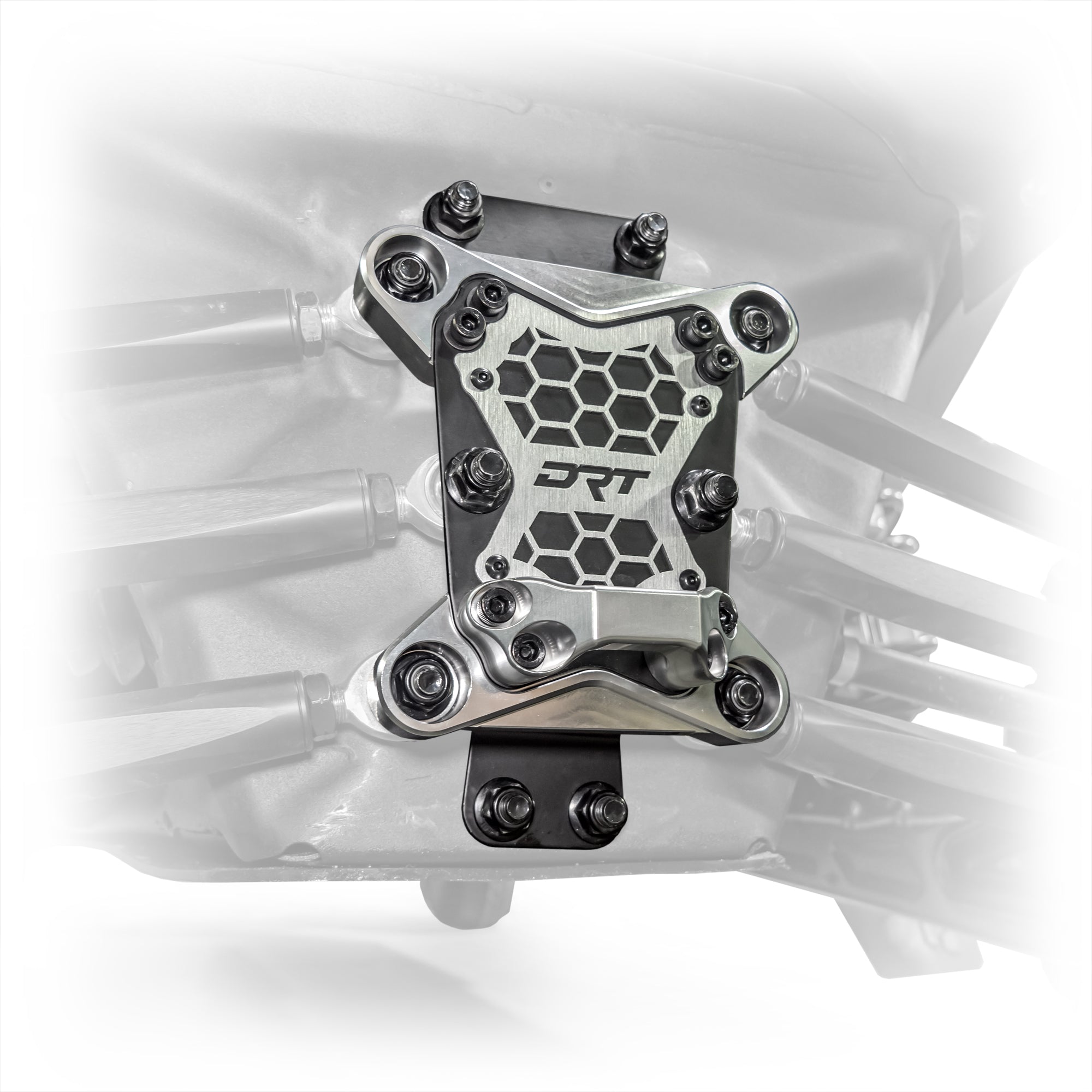

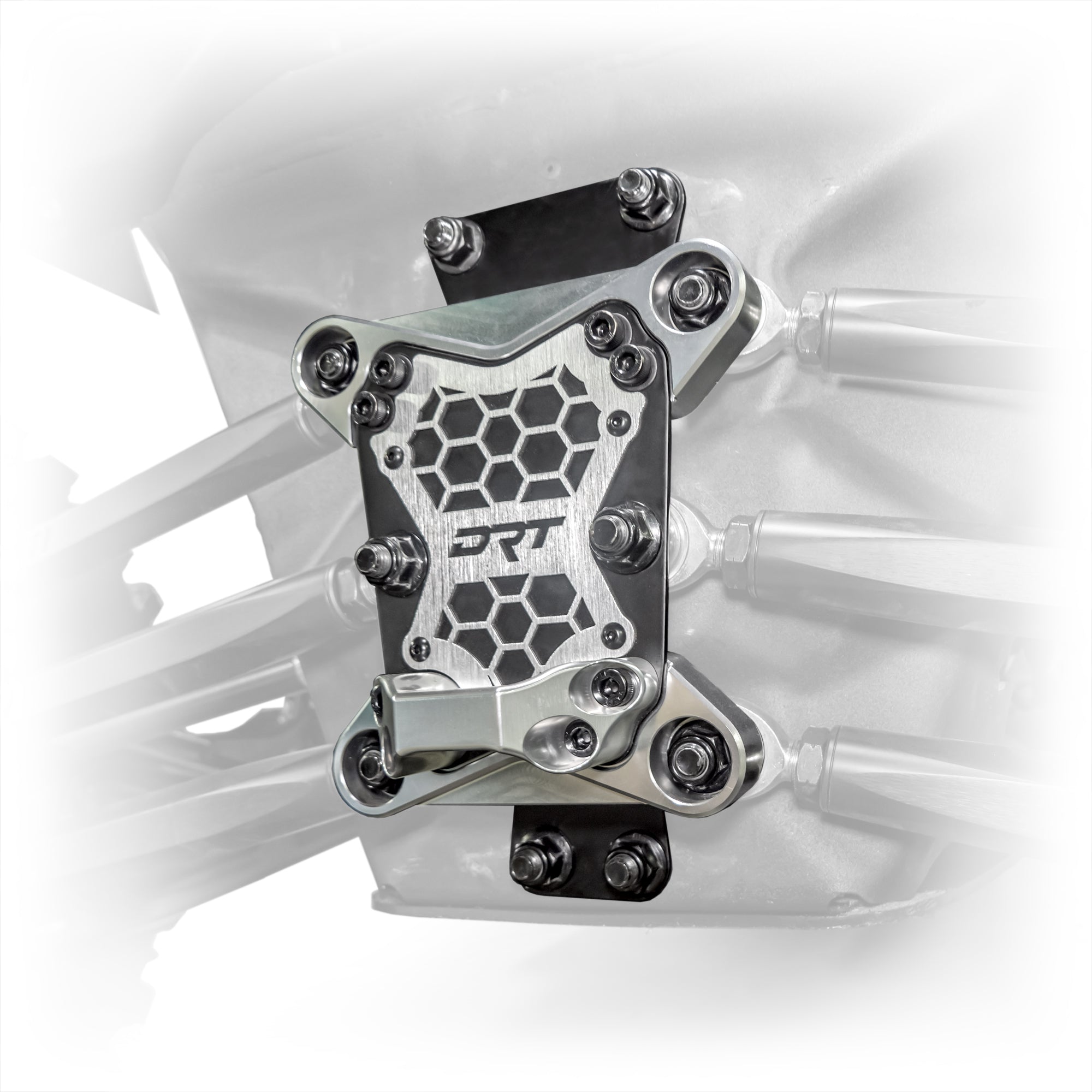

The DRT Motorsports Can-Am Maverick X3 Billet Aluminum 3 PC Radius Rod Plate Kit adds strength, reliability, and serviceability to your side-by-side all in a stylish package.

The upper and lower braces are made of thick aerospace-quality 6061-T6 billet material. The 3D machined hook point also starts from a billet aluminum block of 6061-T6 material. A thick steel sheet metal plate locks the unit together and features a laser-cut contrast trim plate.

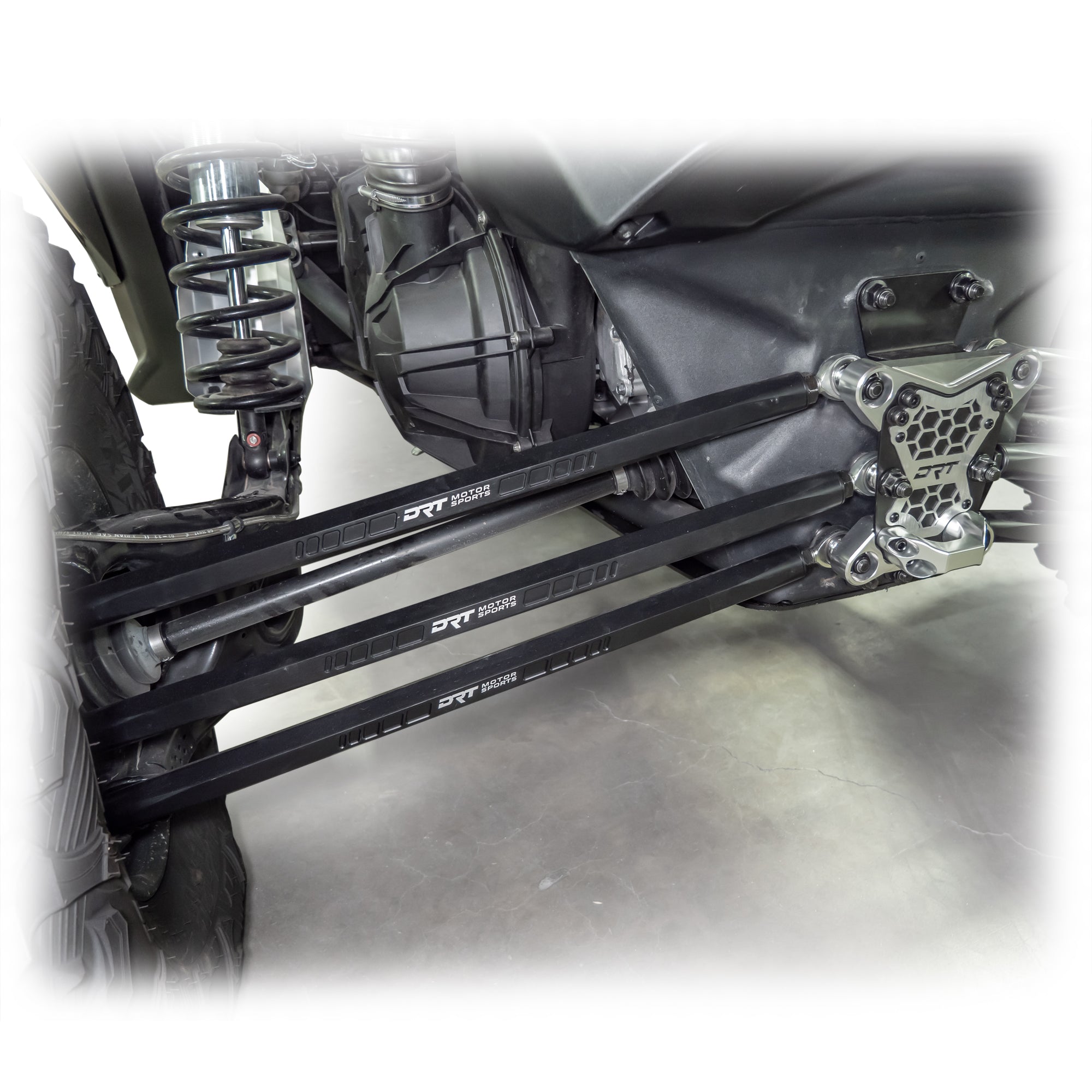

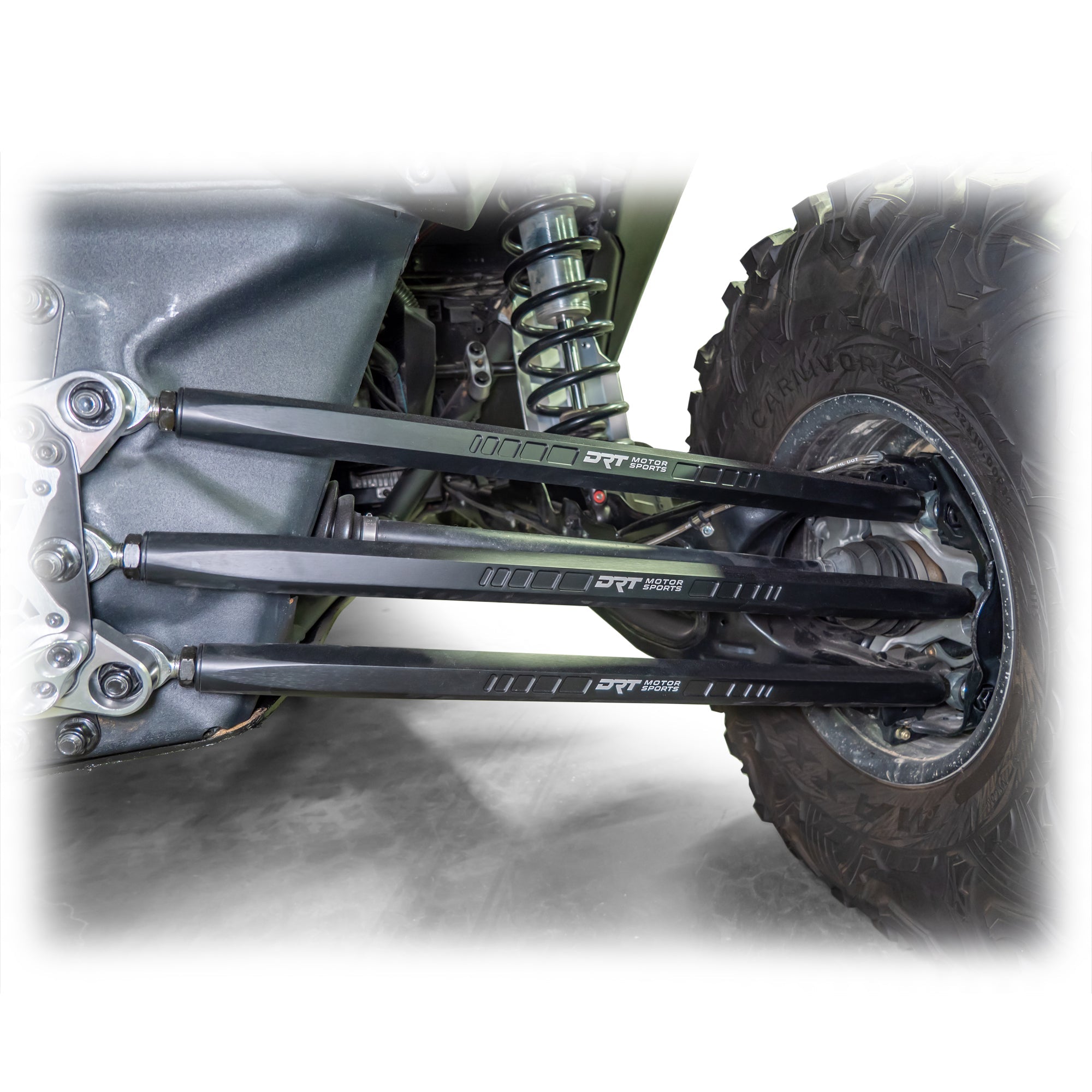

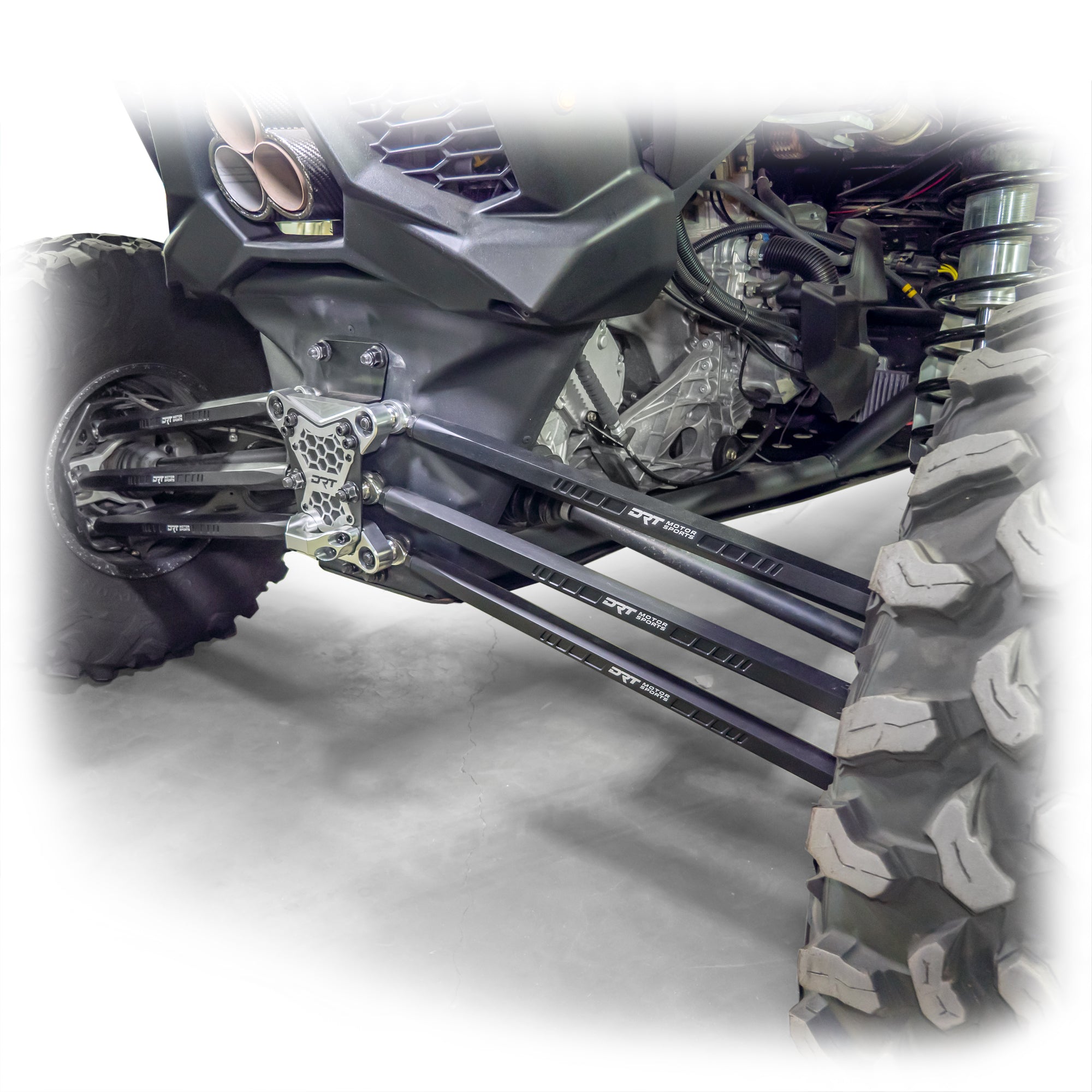

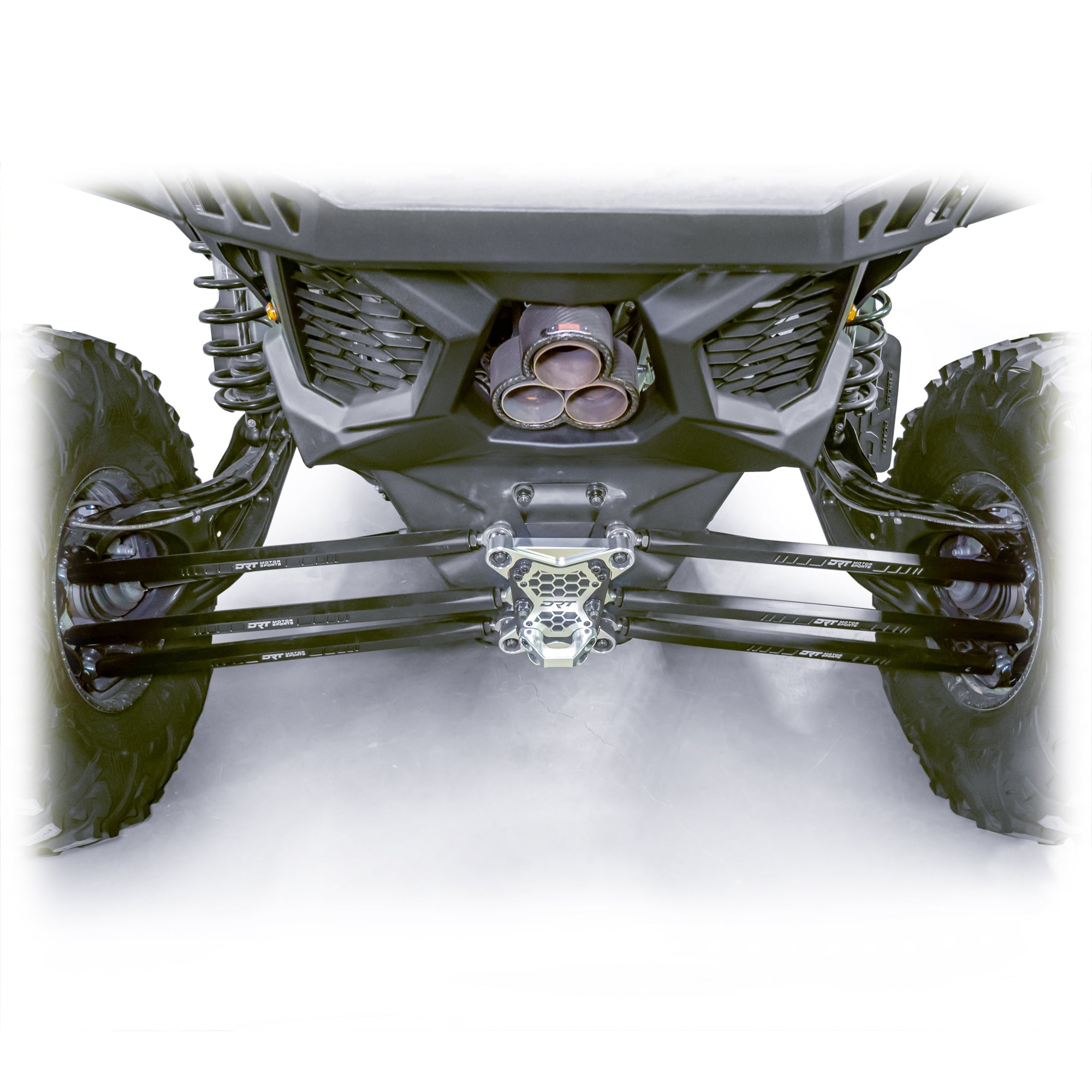

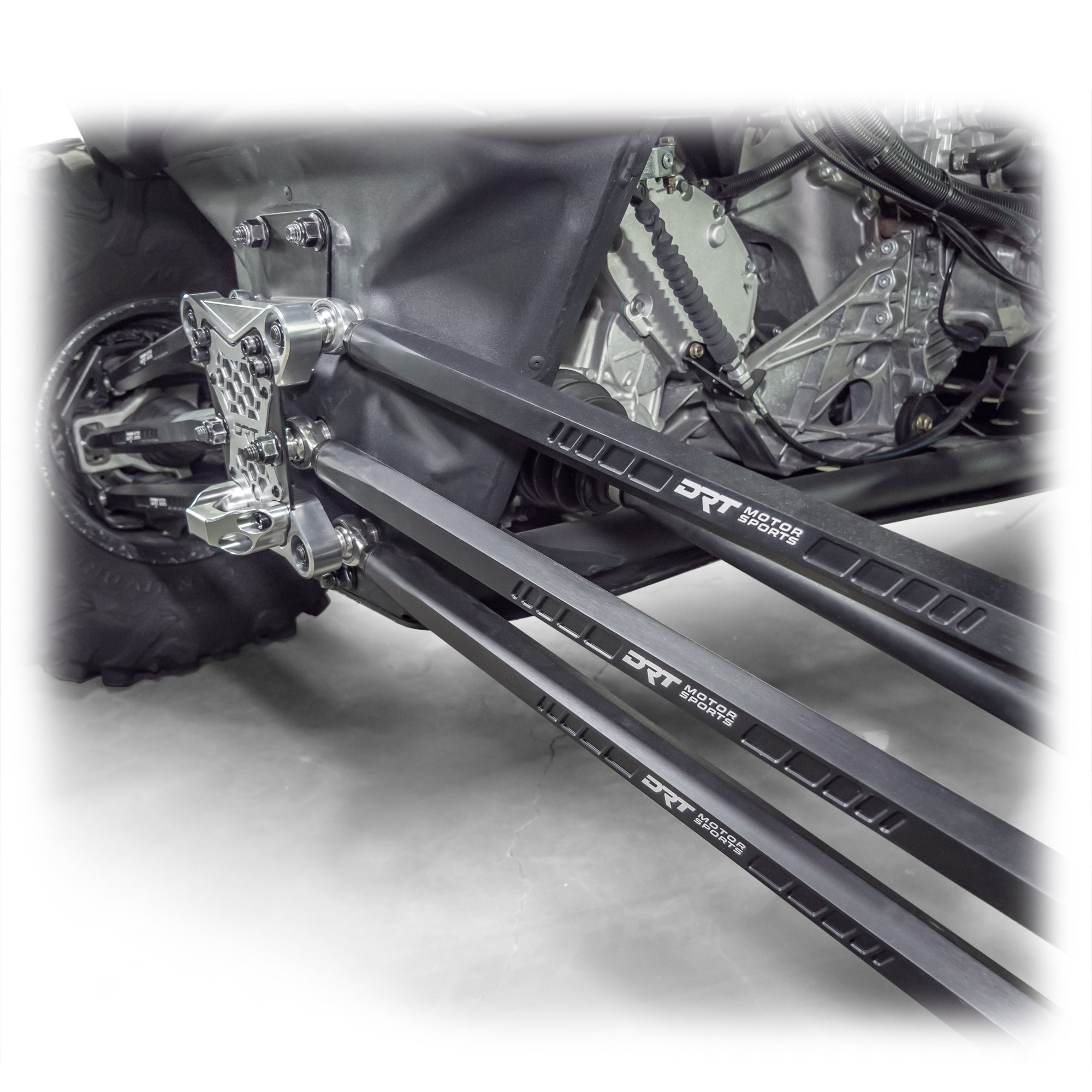

The upper and lower radius rod attachment points with the connecting steel plate keep your suspension components locked down while the removable center steel plate allows access for servicing of center radius rods when needed. All aluminum components are finished in mil-spec anodize clear bright finish while steel components are finished in premium black powder coat. We use zinc-plated alloy steel hardware to keep everything locked in place.

The DRT Motorsports Can-Am Maverick X3 Billet Aluminum 3 PC Radius Rod Plate Kit also has provisions, via laser cut and bent steel brackets, for use of the additional OEM studs in the chassis that came into play on the 2022+ models.

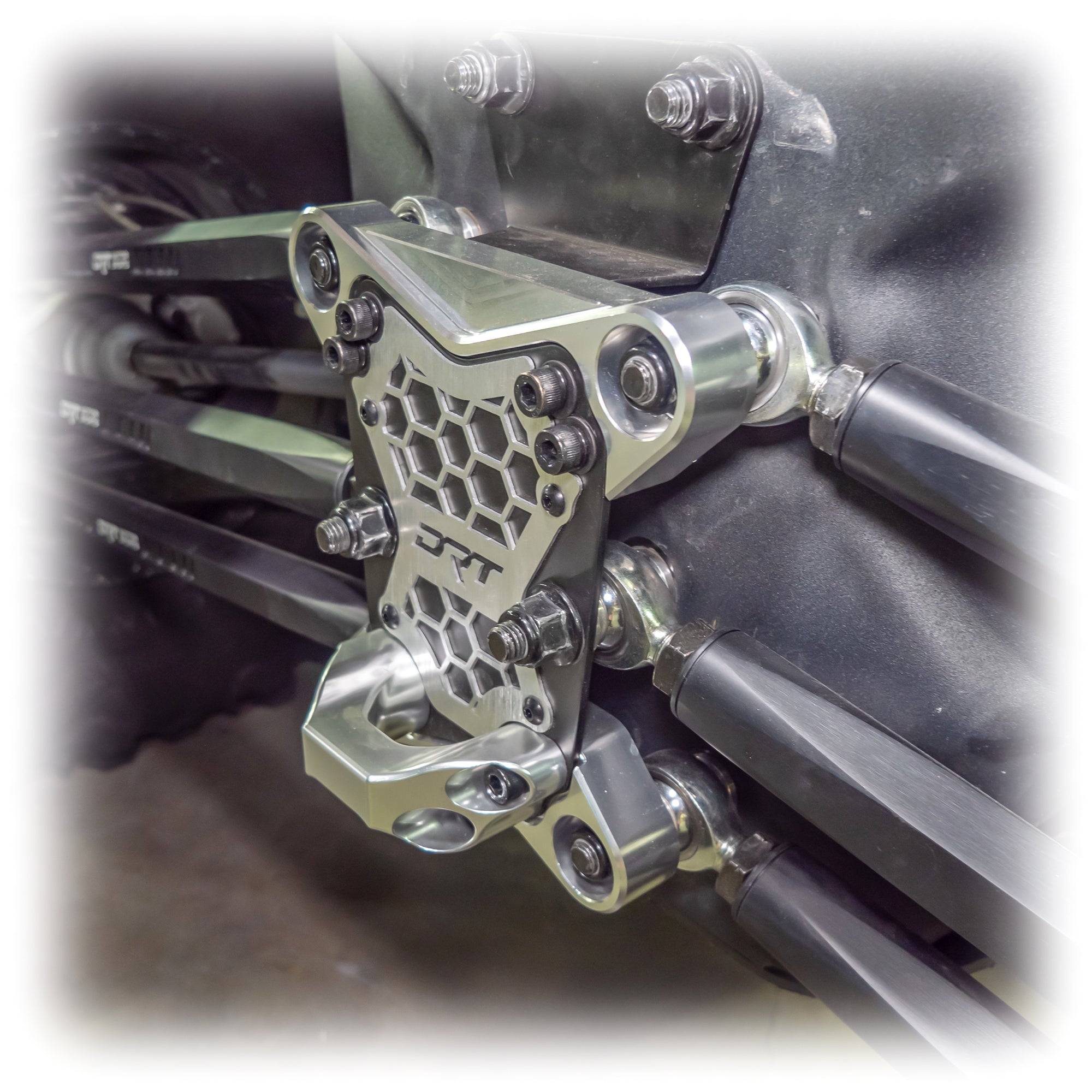

The DRT Motorsports Can-Am Maverick X3 Billet Aluminum 3 PC Radius Rod Plate Kit includes a 3D Billet machined hooking point which is not provided by OEM at this location from 2017-2019. The DRT Motorsports P/N 30010RR91200 replaces OEM P/N 705205750 (2017-2021), 705207750 combined with 715004450 (2019-2021), and 715008492 (2022-current).

• Designed for Can-Am Maverick / X3 2017-current; all models
• Machined from aerospace grade 6061-T6 aluminum
• 3D Precision machined hook point is included
• Military Specification clear anodized finish
• Steel portion is finished in premium-quality powder coat
• Provision for 2022+ model revisions
• Direct bolt-in installation

2017+ Can-Am
Maverick X3, 2 and 4 door models

 PATENT PENDING
