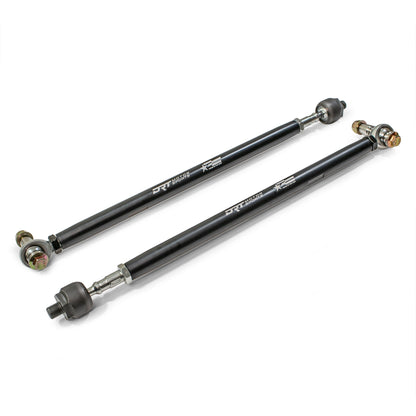

KAWKRX1000  |  Kawasaki KRX 1000/4 HD Billet Aluminum Tie Rod Kit

Product # 50010TR01201

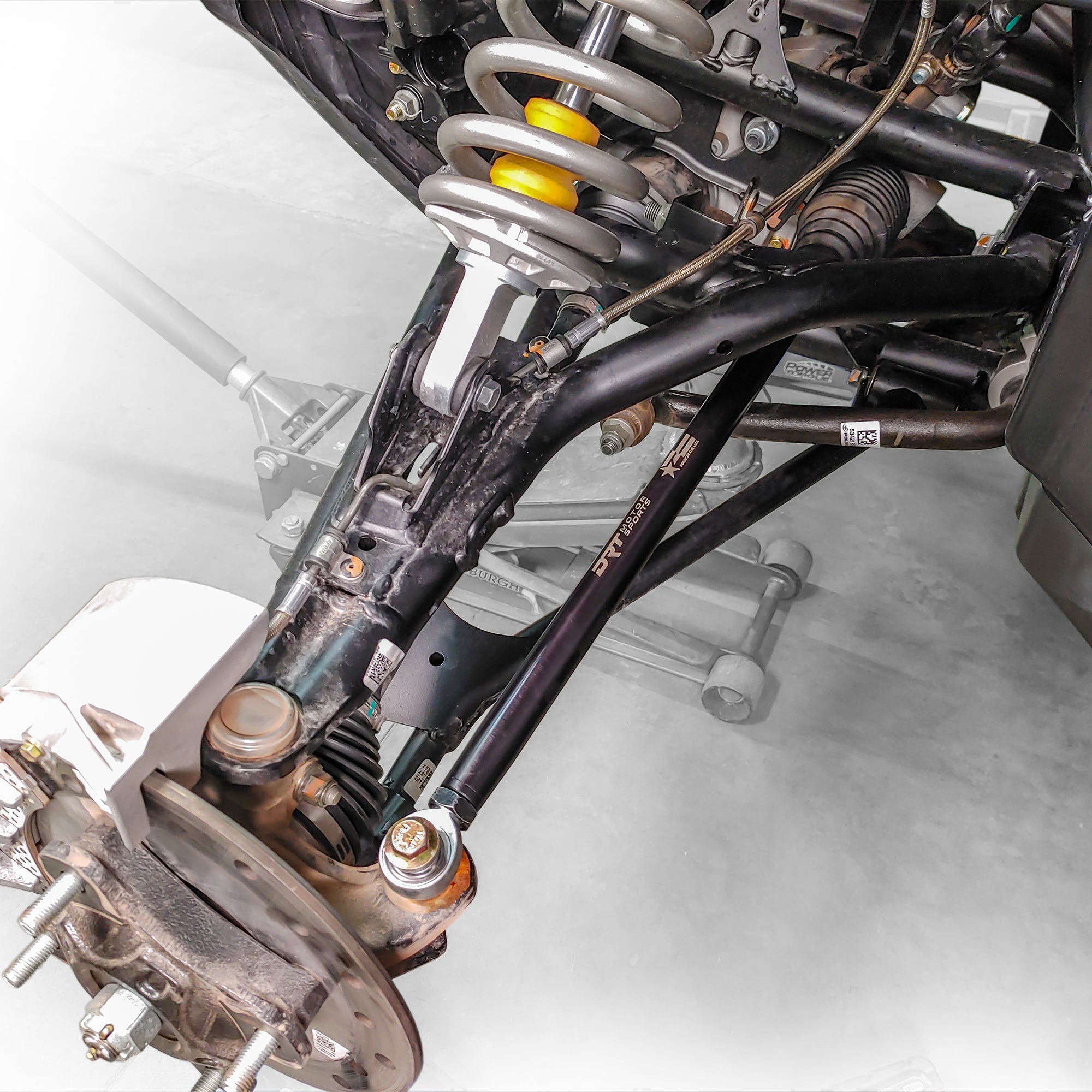

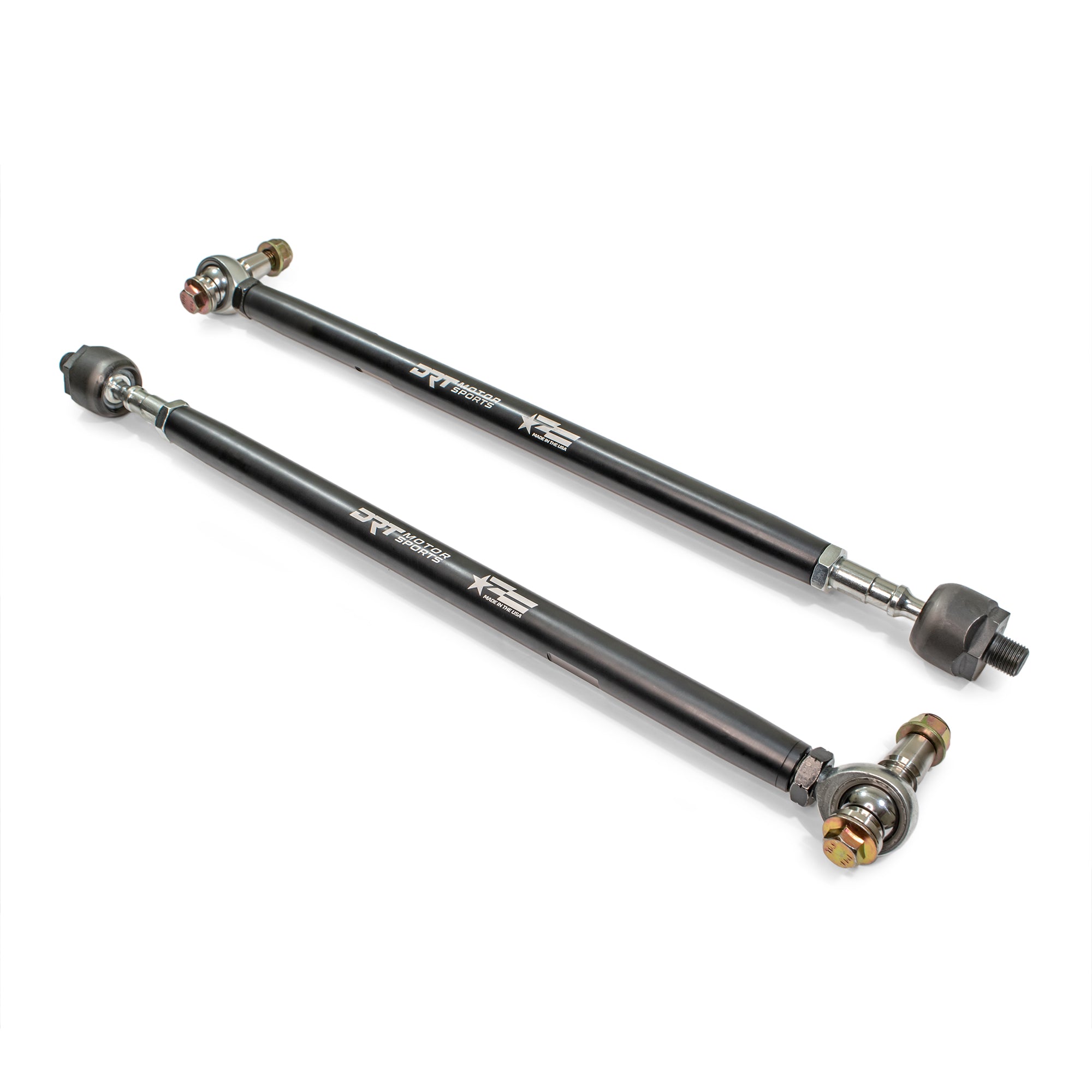

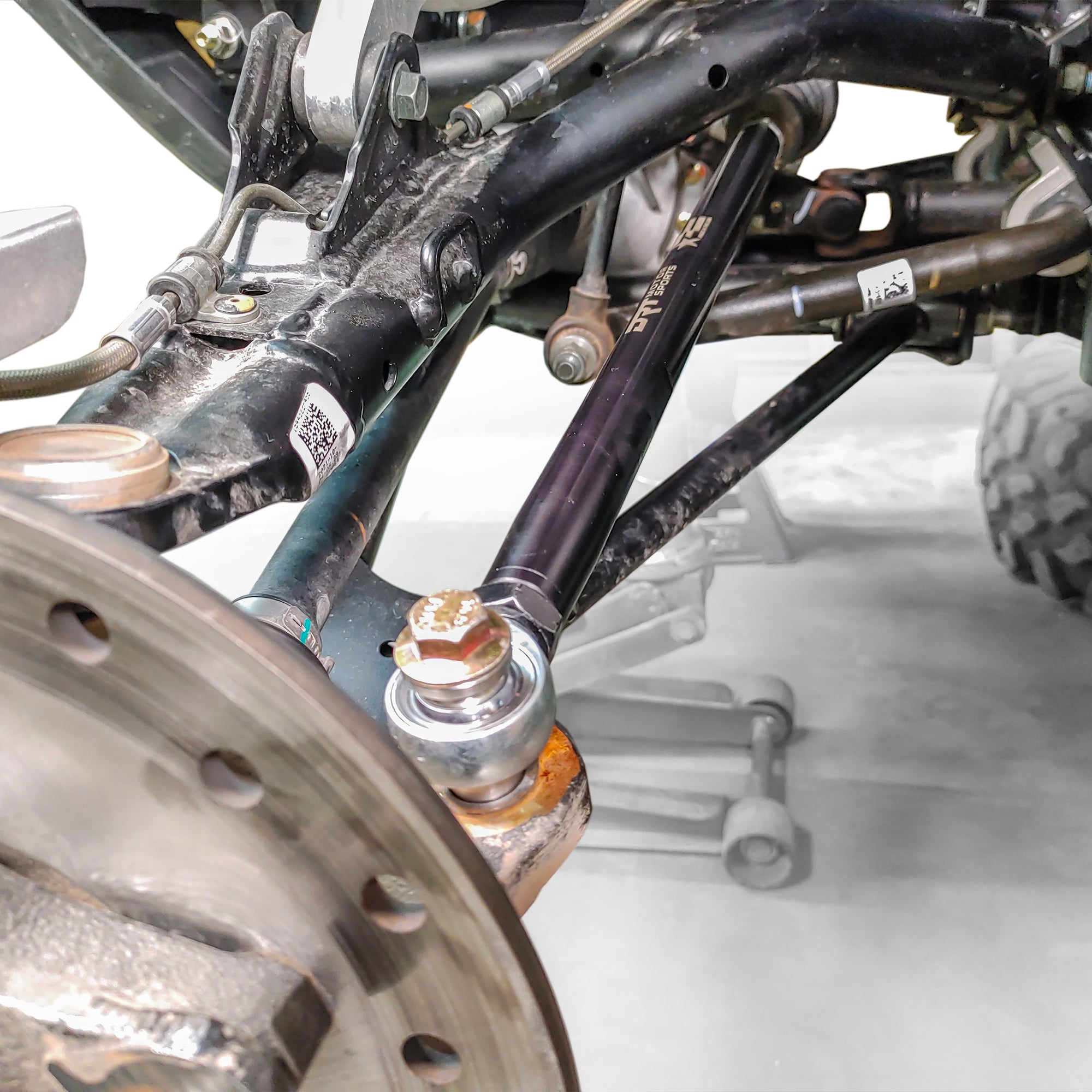

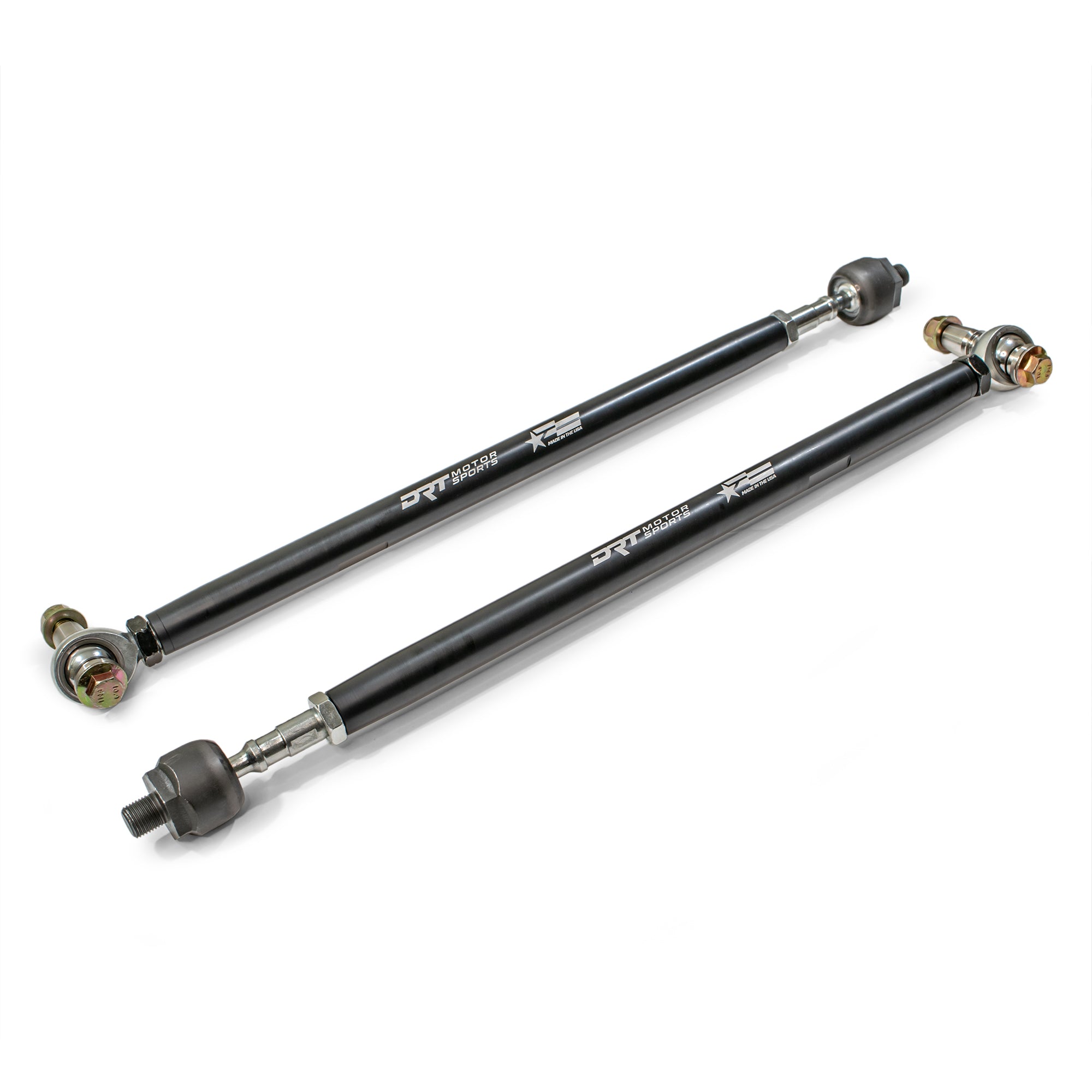

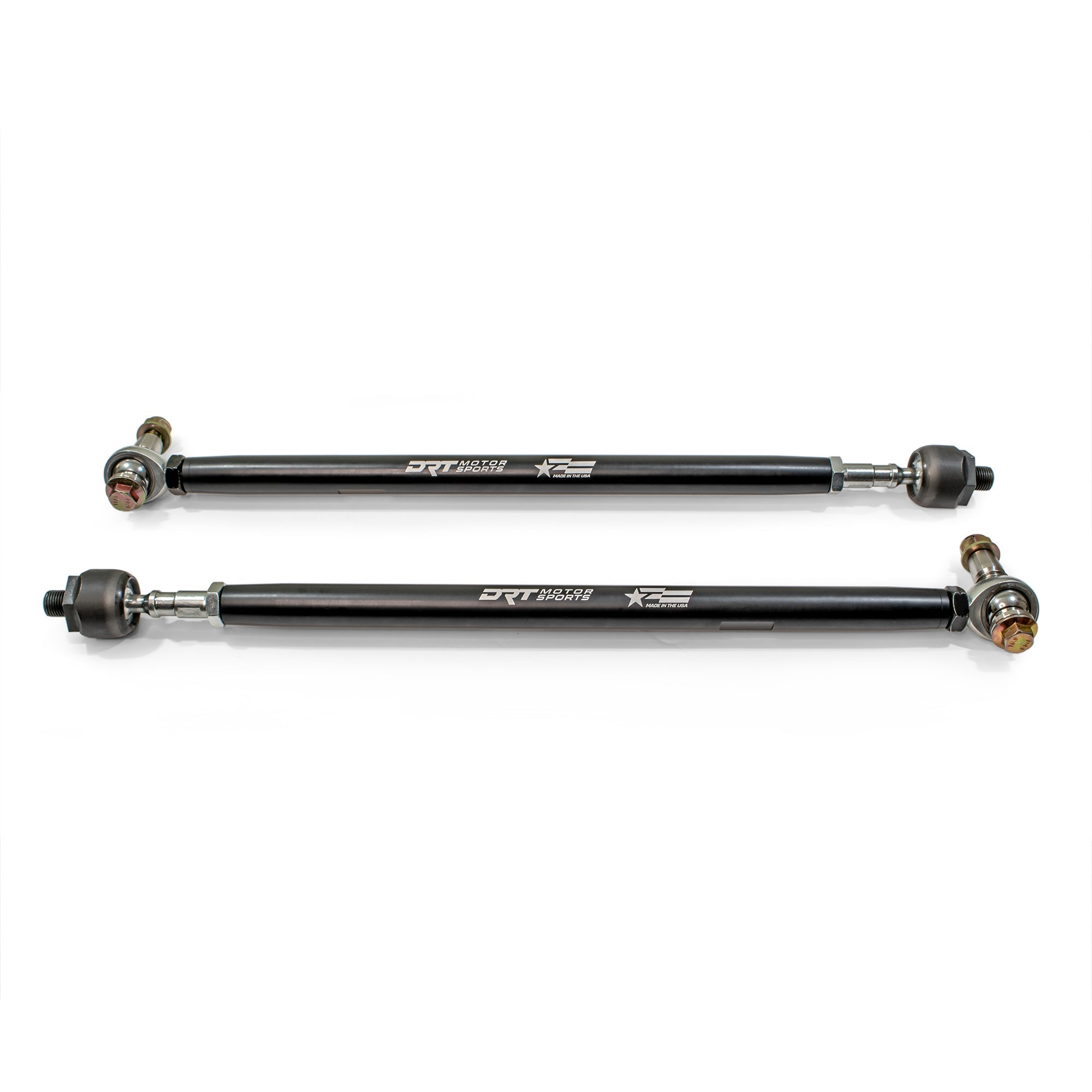

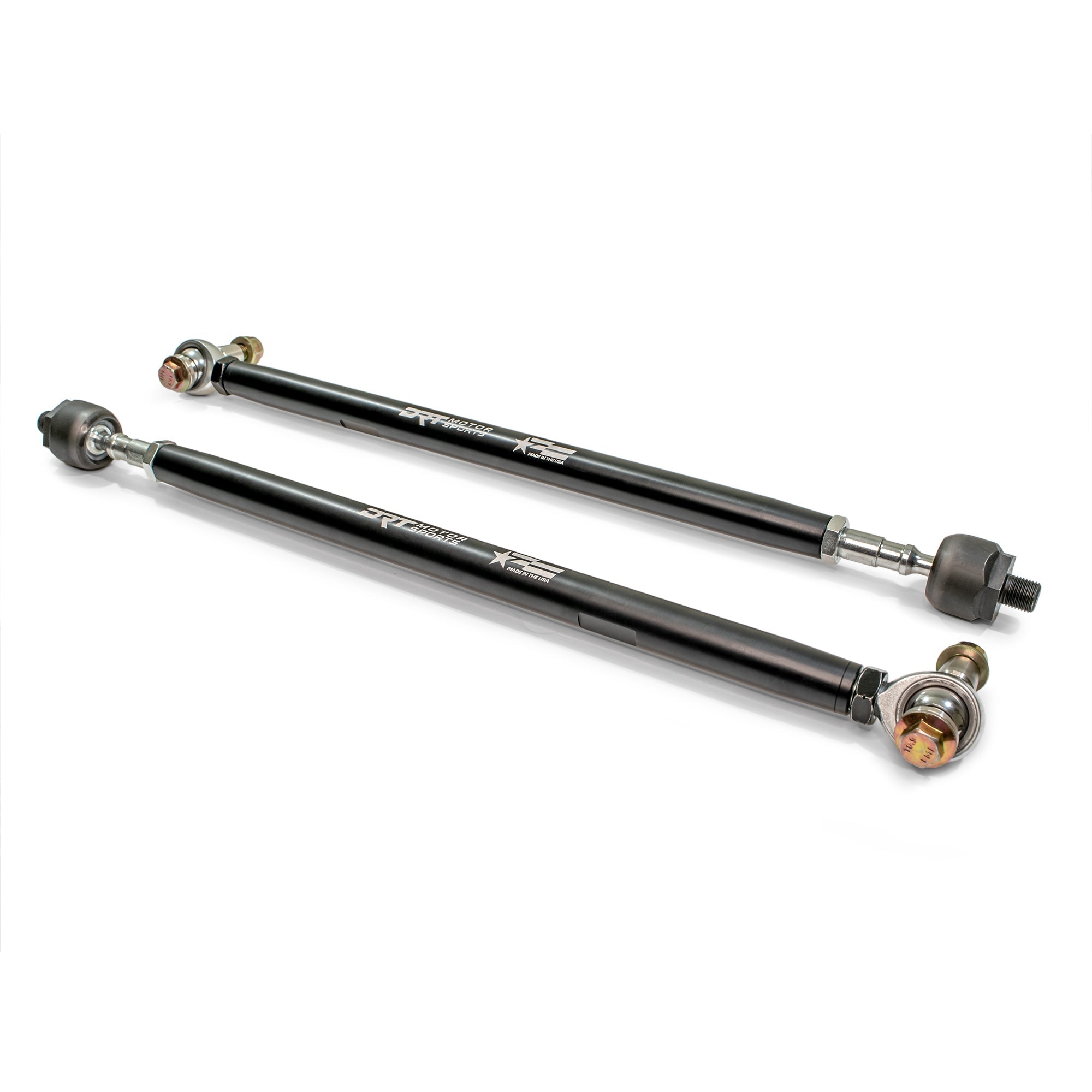

The DRT Motorsports HD Billet Aluminum Tie Rod Kit for the Kawasaki Teryx 1000 KRX/4 (M16 Steering Rack) is designed to strengthen and add reliability to this great vehicle platform.

Made of Aerospace grade 6061-T6 billet bar stock, this DRT tie rod kit is much stronger than OEM, lighter in weight without sacrificing strength, and will clear all components through the entire range of motion. Even at full droop or compression, this tie rod set will clear all suspension and steering components at any point in the steering range so you can ride with confidence.

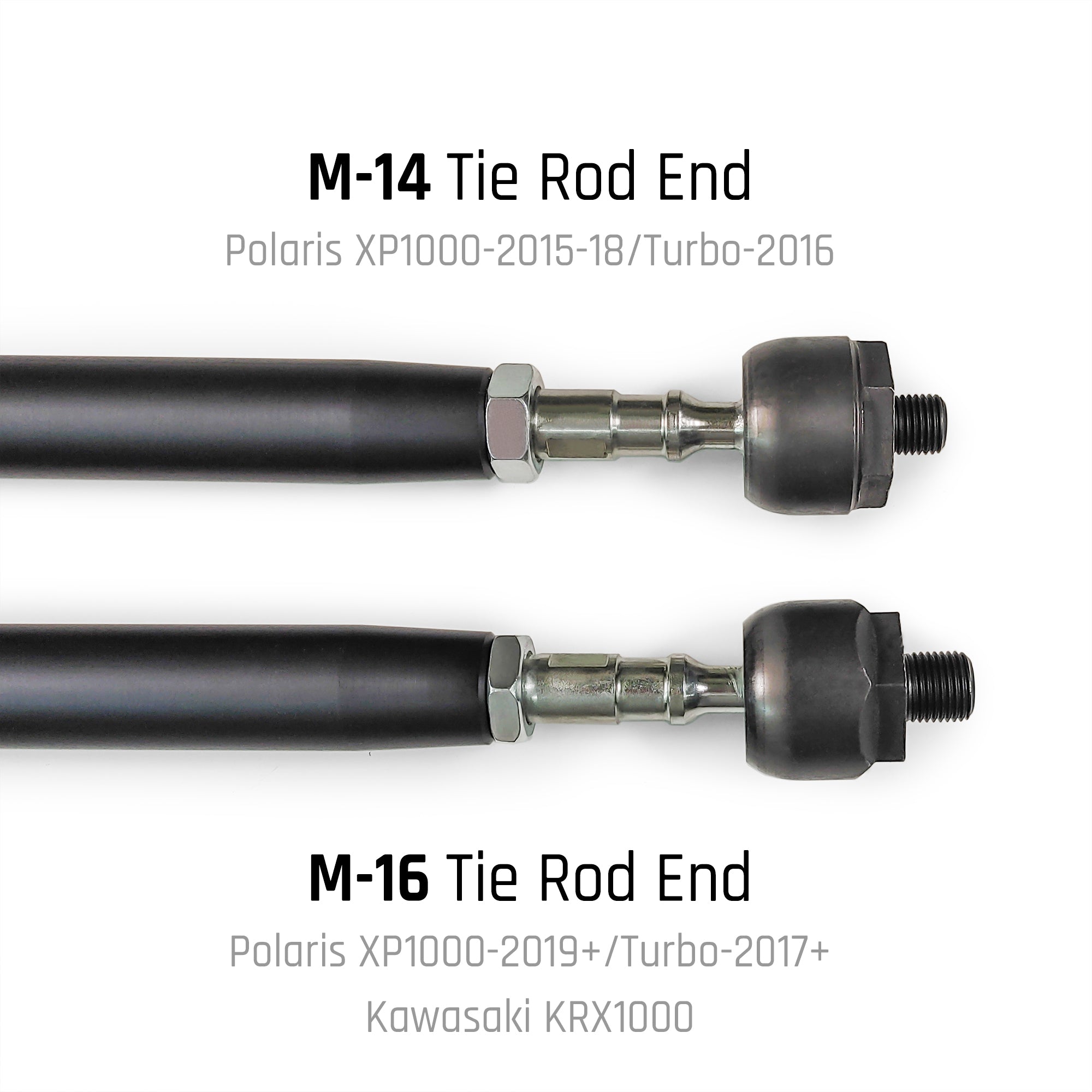

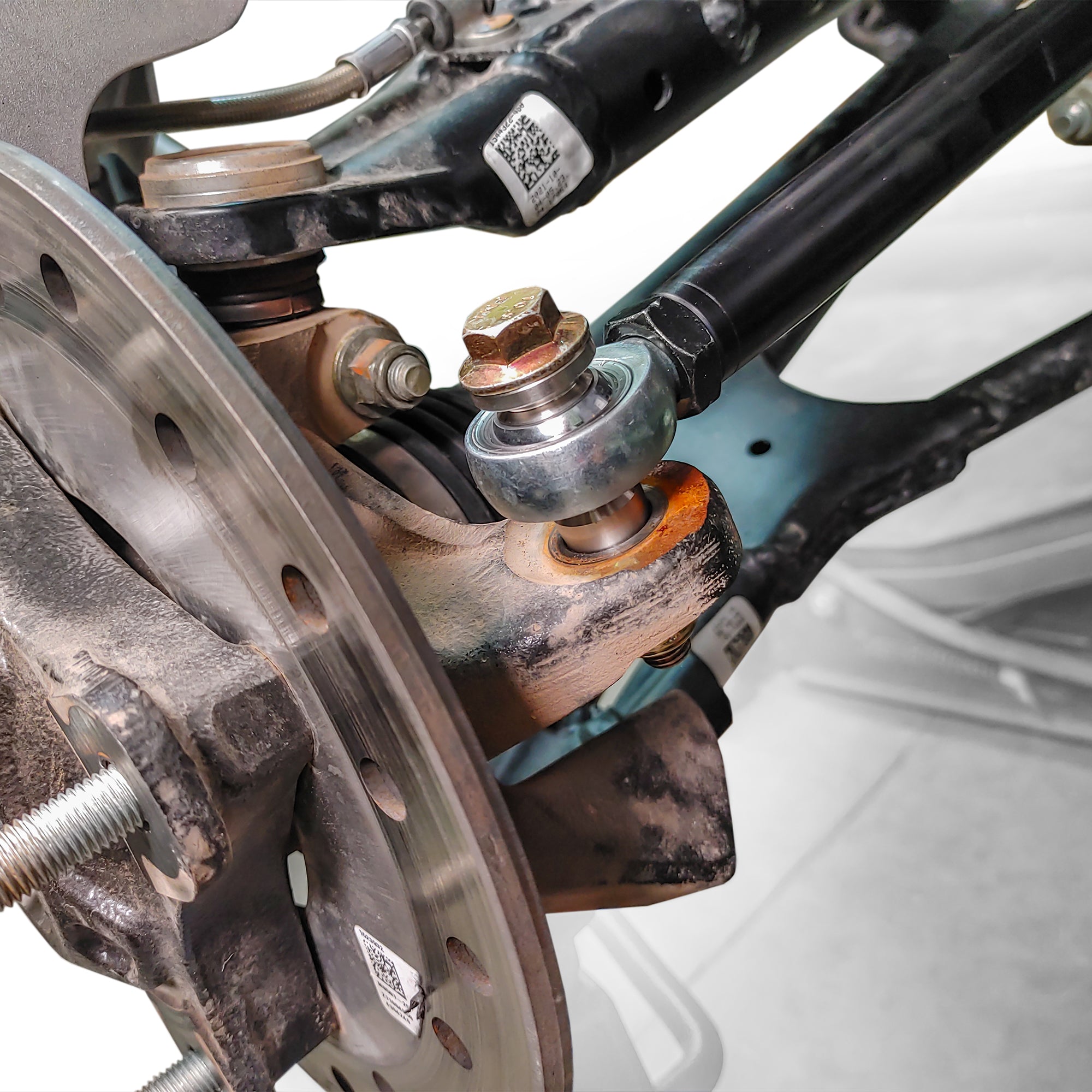

The Tie Rod Kit works in conjunction with the OEM M16 steering rack and replaces the OEM Rod Ends. The DRT KRX Tie Rod Kit uses 3 piece PTFE lined 5/8" Chromoly rod ends and our proprietary inner ball joint to provide sealing of the OEM bellow and protect the steering rack from the intrusion of water, dirt, and sand. DRT spec stainless steel misalignment spacers and class 10.9 hardware is used to provide the required clamping force to keep you on the trail.

The DRT Tie Rods are finished in Military Grade anodized black and marked with the DRT Motorsports; proudly made in the USA.

Note: Verify jam nuts are tight and installed with tread locker. The use of paint check to visually verify movement is recommended. Jam nuts should be inspected before each ride to make sure everything is tight and secure. These radius rods are Left/Right adjustable.

• Designed for Kawasaki Teryx 1000 KRX/4
• Machined from aerospace grade 6061-T6 aluminum
• Military Specification Anodized finish
• Laser engraved branding
• 3 pieces PTFE lined Left/Right hand 5/8" Chromoly rod ends
• Machined wrench notch areas for adjustability
• 303 Stainless Steel rod end spacers
• Made in the USA

Kawasaki Teryx 1000 KRX/4
2 and 4 door models

This installation video for the Tie Rod Kit was installed on a Polaris Pro XP. Although it still applies as the process is very similar for the KRX1000. If there are any questions during the install, please call Customer Service.
