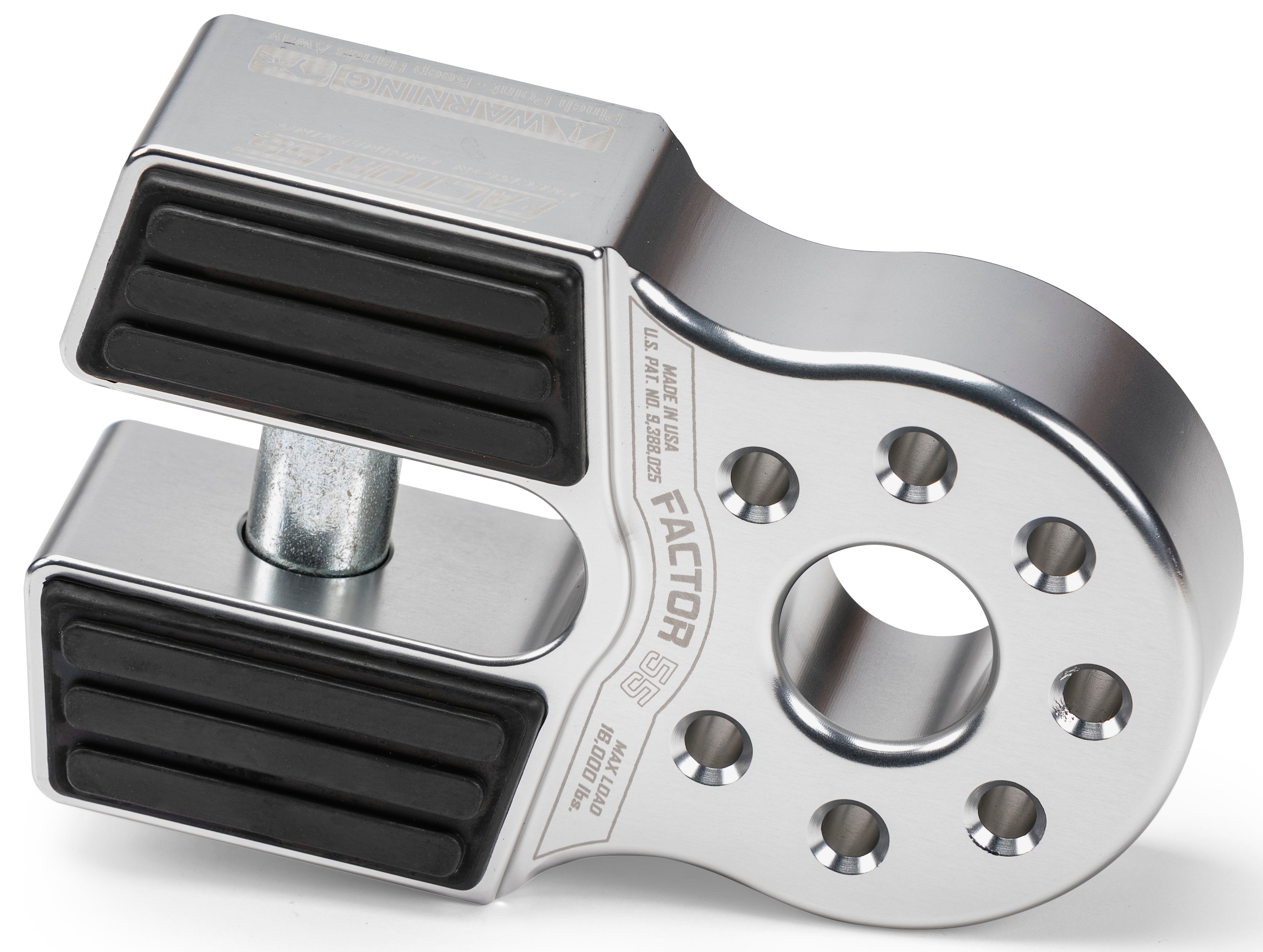

FACTOR 55 FlatLink XTV Winch Shackle - 00070-05

The FlatLink XTV allows replacement of the conventional winch hook with a safer and stronger shackle/D-Ring. Winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The FlatLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches. The cable eye is retained in the FlatLink XTV by a 7/16 inch diameter titanium double shear pin and internal snap ring. It is easily installed in minutes. The EPDM Rubber Guards protects alloy fairleads and is securely attached to the FlatLink XTV with 4 barbed tips. The FlatLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard ? * 5/8 inch shackles. MADE IN THE USA, the FlatLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized/powder coated in 5 different colors. The FlatLink XTV has a max load rating of 8000 pounds and an ultimate failure of 28,000+ pounds.
Upgrade your winching experience with the FACTOR 55 FlatLink XTV Winch Shackle. This innovative design replaces conventional winch hooks with a safer and stronger shackle/D-Ring, ensuring secure and reliable recovery operations. Unlike traditional winch hooks that can cut and fray recovery straps, the FlatLink XTV prevents strap loops from escaping thanks to its secure screw pin attachment. Compatible with both steel cables and synthetic ropes up to 5/16 inches, it provides versatility in any situation.

Installation is quick and easy, taking just minutes to set up. The FlatLink XTV features a titanium double shear pin and internal snap ring that securely retain the cable eye, ensuring durability even under extreme conditions. The included EPDM Rubber Guards protect alloy fairleads and are firmly attached with barbed tips, making it an ideal choice for both roller and Hawse type fairleads. Proudly made in the USA from high-quality 6000 series billet aluminum and 6Al-4V titanium, this winch shackle is available in five stunning anodized/powder-coated colors. With a maximum load rating of 8,000 pounds and an ultimate failure strength of over 28,000 pounds, the FlatLink XTV is your reliable partner for all recovery needs.

Features:
* Safer alternative to conventional winch hooks
* Secure screw pin attachment prevents strap loops from escaping
* Compatible with steel cables and synthetic ropes up to 5/16 inches
* Easy installation in minutes
* Durable titanium double shear pin and internal snap ring
* EPDM Rubber Guards protect alloy fairleads
* Designed for use with standard ? * 5/8 inch shackles
* Constructed from 6000 series billet aluminum and 6Al-4V titanium
* Available in five anodized/powder-coated colors
* Maximum load rating of 8,000 pounds with ultimate failure strength over 28,000 pounds
