Honda Pioneer 700 8" Portal Gear Lift

Upgrade Your Honda Pioneer 700 with Huge 8" Portals
Get more out of your machine with SuperATV's 8" Portal Gear Lift for the Honda Pioneer 700. These beefy portals give you a huge lift and a gear reduction all in one convenient package. Whether you tackle creeks, mud, trails, rocks, or a bunch of different terrain types, these portals will help you get more out of every ride.

• Gives you an 8" lift and a gear reduction in one package
• 45% or 60% gear reduction
• Maintains OEM suspension angles
• REQUIRES aftermarket suspension to clear 22" wheels and matching tires

45% or 60% Gear Reduction
Transform your Pioneer into a torquey tank with a 45% or 60% gear reduction. A gear reduction takes your power back when you add huge tires or other weighty upgrades. If you're plowing through deep mud or taking on tricky trails, you need portals and you want a gear reduction.

GDP Portals Save Your Drivetrain
GDP Portals put the gear reduction directly in the hub. This protects your entire drivetrain from unnecessary wear and tear. Your axles, diff, prop shaft, and transmission will be protected instead of slowly destroyed.

Honda Portals That Are Built Tough

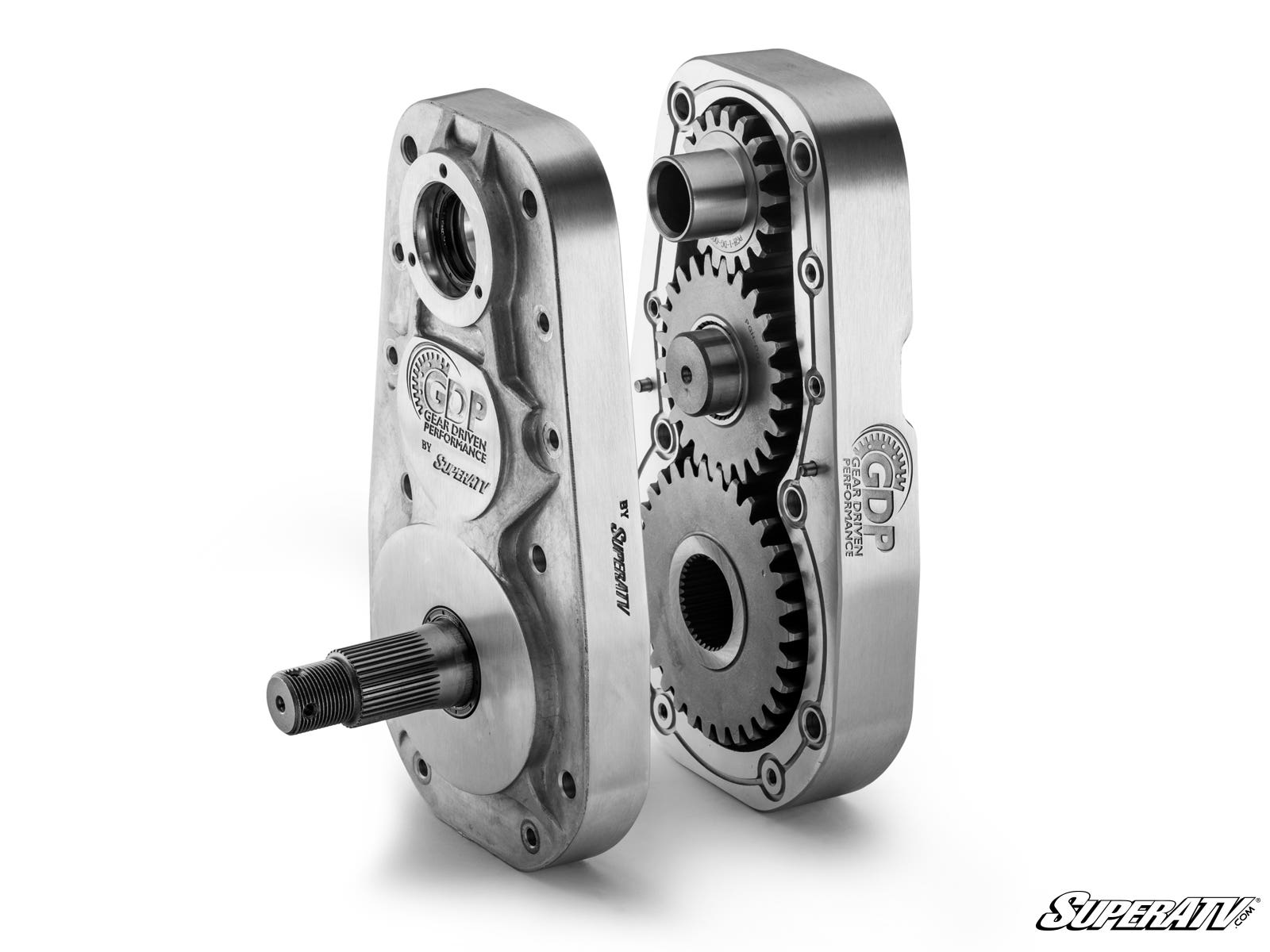

GDP Portals are built to be the toughest. They use 5/16" advanced steel alloy backing plates and precision-engineered aluminum housings so you can ride the way you want.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:
• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Top-Rated Customer Service
Still need a little help getting exactly what you need No worries we've got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

8" Portal Gear Lift Includes:
• (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
• (4) Specialized steel alloy backing plates
• (2) Steel caliper mounting plates
• (4) Caliper adapter plates
• Steering stop kit
• Extended brake lines
• All required hardware, including recessed castle nut socket



Max Tire Size Recommendations
Max Tire Size	Required Suspension Setup with GDP Portals
32"	Stock
35"	1.5" Forward Offset A-Arms
42"	6" Lift Kit
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.		Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.


Patent # 8,985,264, 11,015,681, 11,299,042, 11,554,662, 12,005,776



Fitment

• Honda Pioneer 700 : 2017+
• Honda Pioneer 700 4 : 2017+

Wheel Requirements:
• 22" or larger wheel required. Therefore, it is NOT compatible with stock suspension and REQUIRES aftermarket suspension
• Wheels cannot exceed 4.5" backspacing
• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1" wheel spacer
