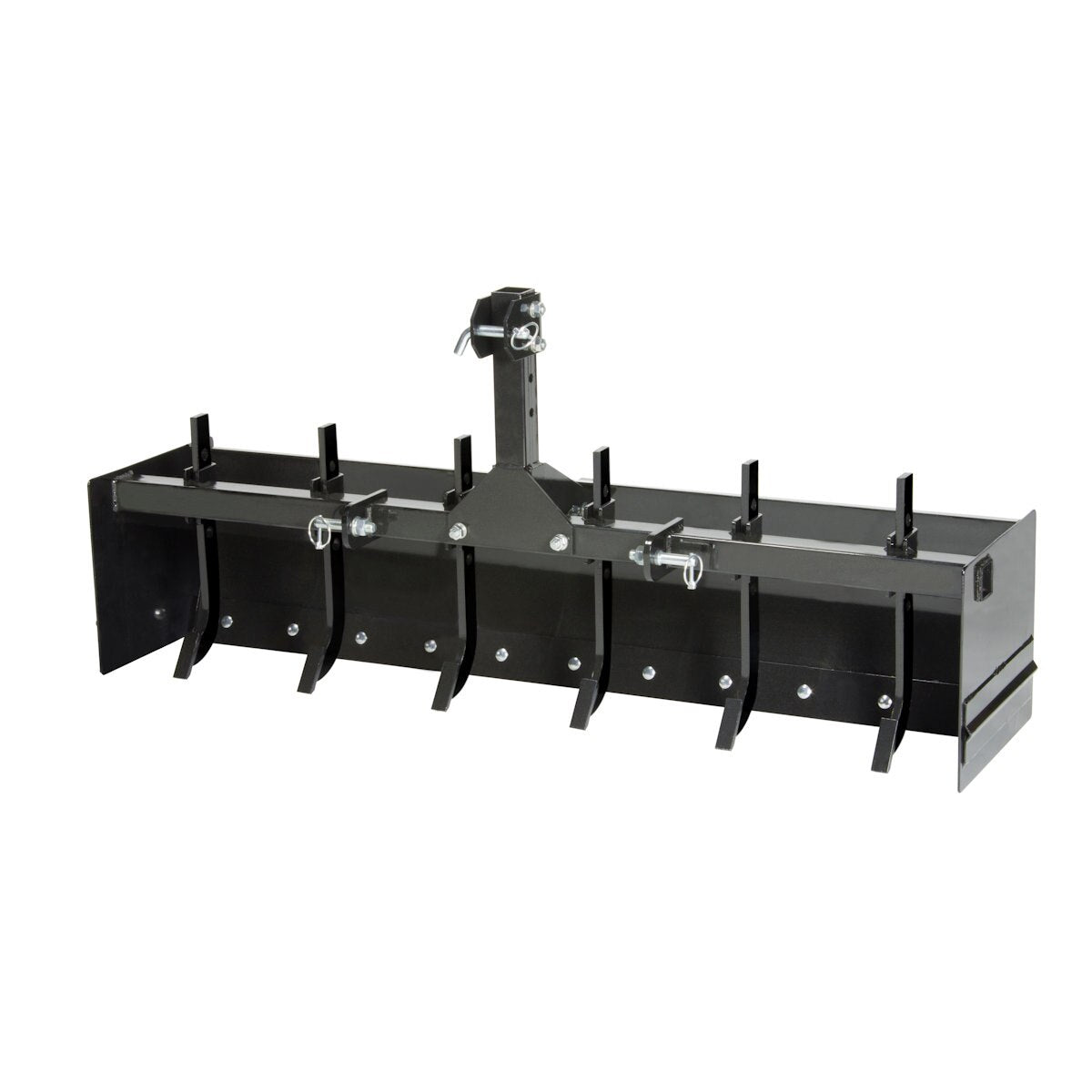

IMPACT IMPLEMENTS® 55" Three-Point Box Scraper for Cat-0 Tractors

The Impact Implements Cat 0 55" Three-Point Box Scraper is specially designed for the spacing of a Cat-0 tractor and is rugged for grading, land leveling, scraping, back filling, and other field projects necessary for planting and preparation.

Height adjustable, heavy-duty shanks with replaceable steel cutting edges break up hard ground. Attaches to Cat-0 Systems with the included adapter.



Specs:

• Blade: 55″ (W) x 12″ (H) x 12″ (D)
• Tines: .5″ (W) x 16″ H x 1.5″ (D)
• Tine Cutting Edge: 1″ (W) x 3″ (H) x .5″ (D)
• Box ends: 12″ (W) x 12″ (D)
• 8-gauge steel 3-point frame
• 10-gauge steel main frame tube
• 10-gauge steel formed back blade
• Weight: 135 lbs

Features:

• Six (6), replaceable and height adjustable cutting (ripper) edge tines
• Five (5) inches of adjustability on the cutting tines
• Reversible and replaceable blade wear bar
• Integrated 3 Point Cat-0 quick mount
• Assembly Required
