IMPACT IMPLEMENTS® Three-Piece Hydraulic Kit

The IMPACT IMPLEMENTS® Three-Piece Hydraulic Kit includes key pieces in the planting and field preparation process in clearing debris and leveling the soil.

Quick-attach, durable accessories go on and off easily with a single hitch pin. The powerful hydraulic lift system is wired through the onboard electrical system and operates with an up/down control switch to apply down-force for ground engagement. Easily installs into a 2-inch hitch style receiver already installed on the ATV, UTV or lawn tractor.

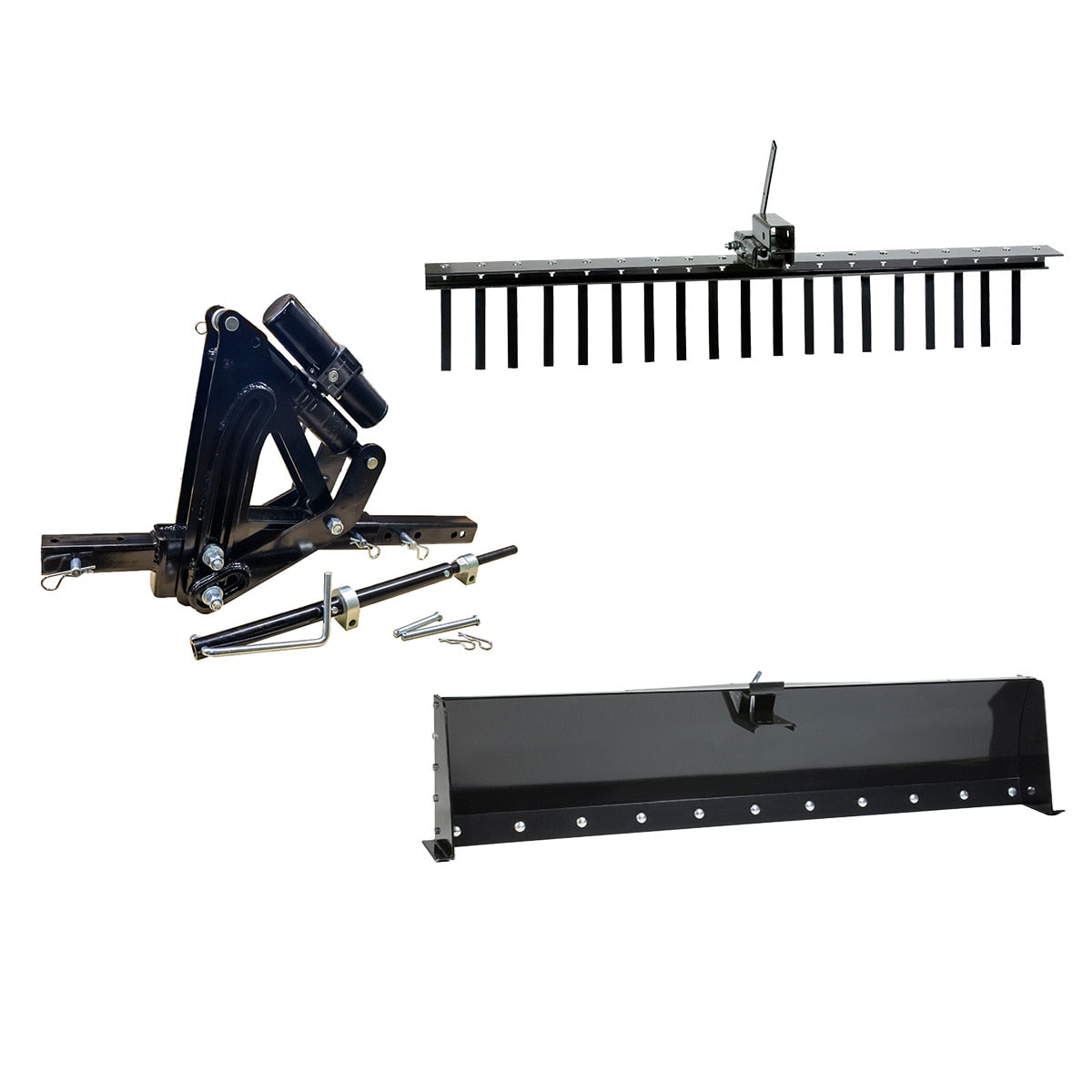

Kit Contents:
- IMPACT IMPLEMENTS Patented One-Point Hydraulic Lift System
- IMPACT IMPLEMENTS 3-Position Blade with Box Ends
- IMPACT IMPLEMENTS Landscape Rake with Latch

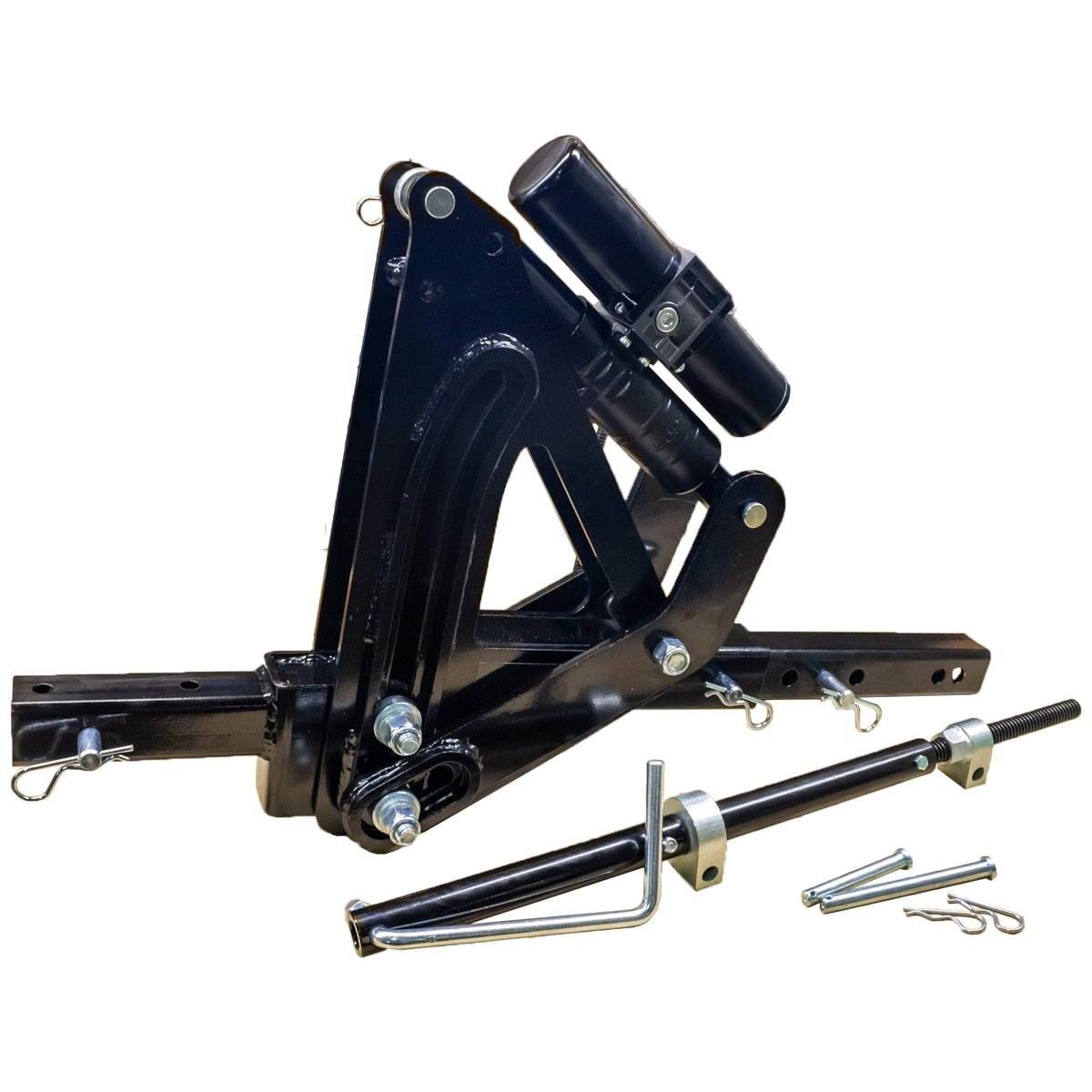

1-Point Hydraulic Lift System
- Heavy Duty, 14-gauge tube steel construction
- Approximately 1,100lbs of pushing force and 800lbs of pulling force
- Hydraulic lift for an additional 10" of fine adjustments
- Amp draw of pump 5A-30A, depending on load
- Fits 2″ hitch receiver (not included)
- Weight: 52 lbs

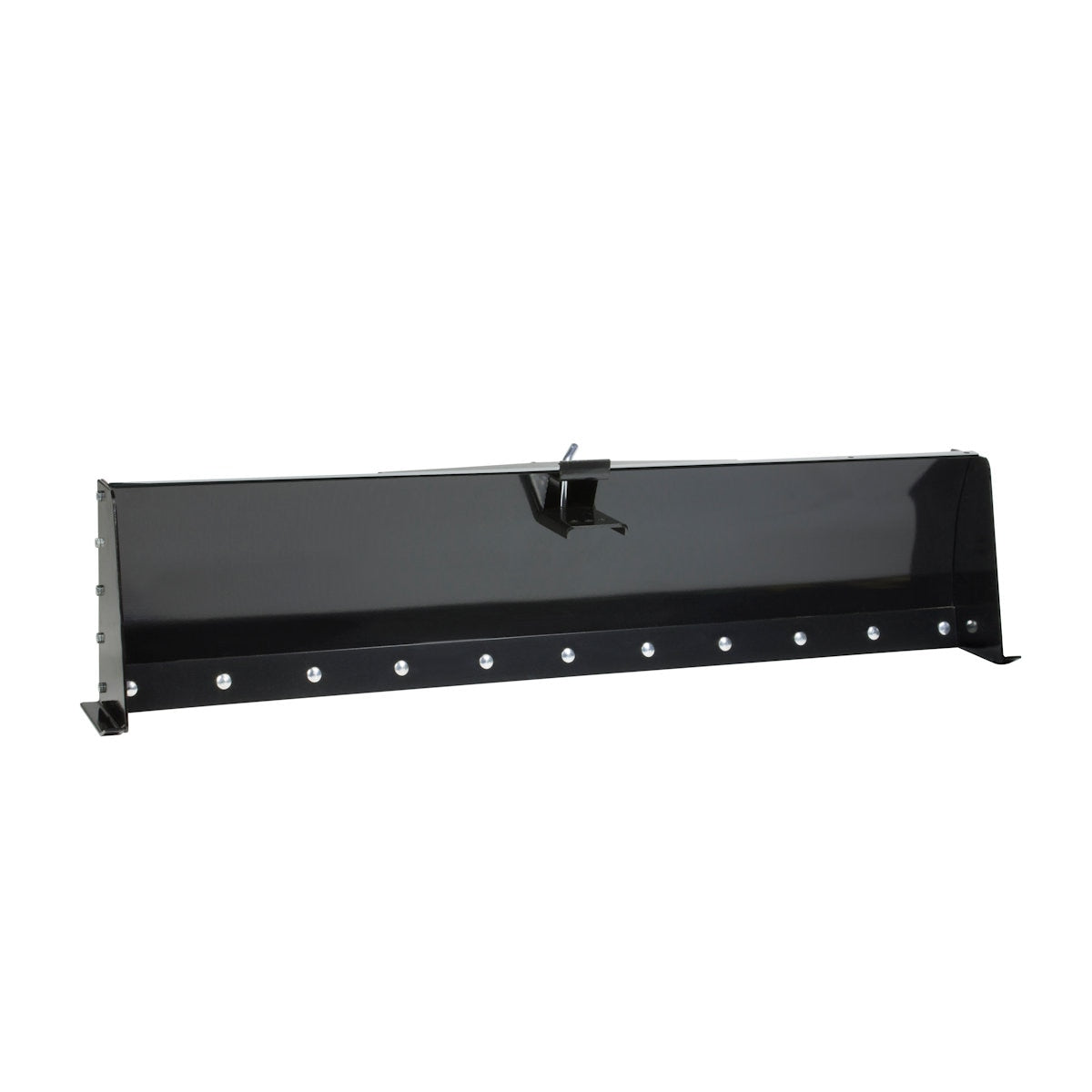

3-Position Blade with Box Ends
- Three (3) position blade with 12° angle adjustment in either direction
- Reversible / Replaceable cutting edge
- Dimensions:
- Blade: 52″ (W) x 12″ (H)
- Weight: 42 lbs

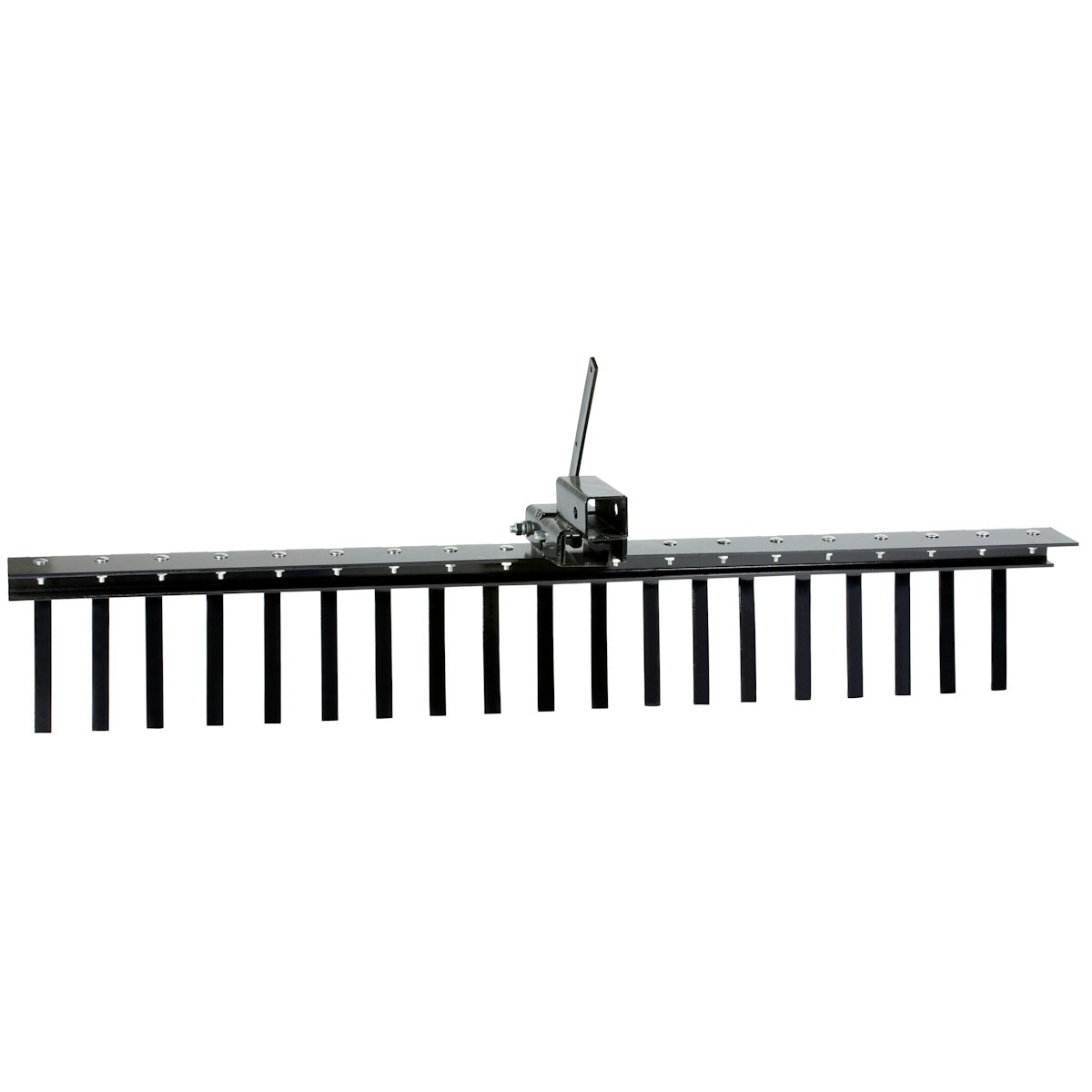

Landscape Rake with Latch
- Nineteen (19), replaceable spring steel rake tines
- Dimensions:
- Rake: 62″ (W) x 10.75″ (H) x 7.75″ (D)
- Tines: 10″(H) x 1″ (W)
- Weight: 32 lbs
