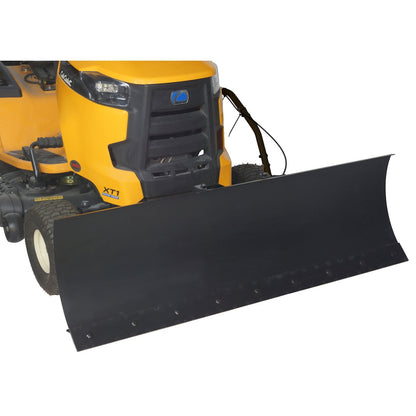

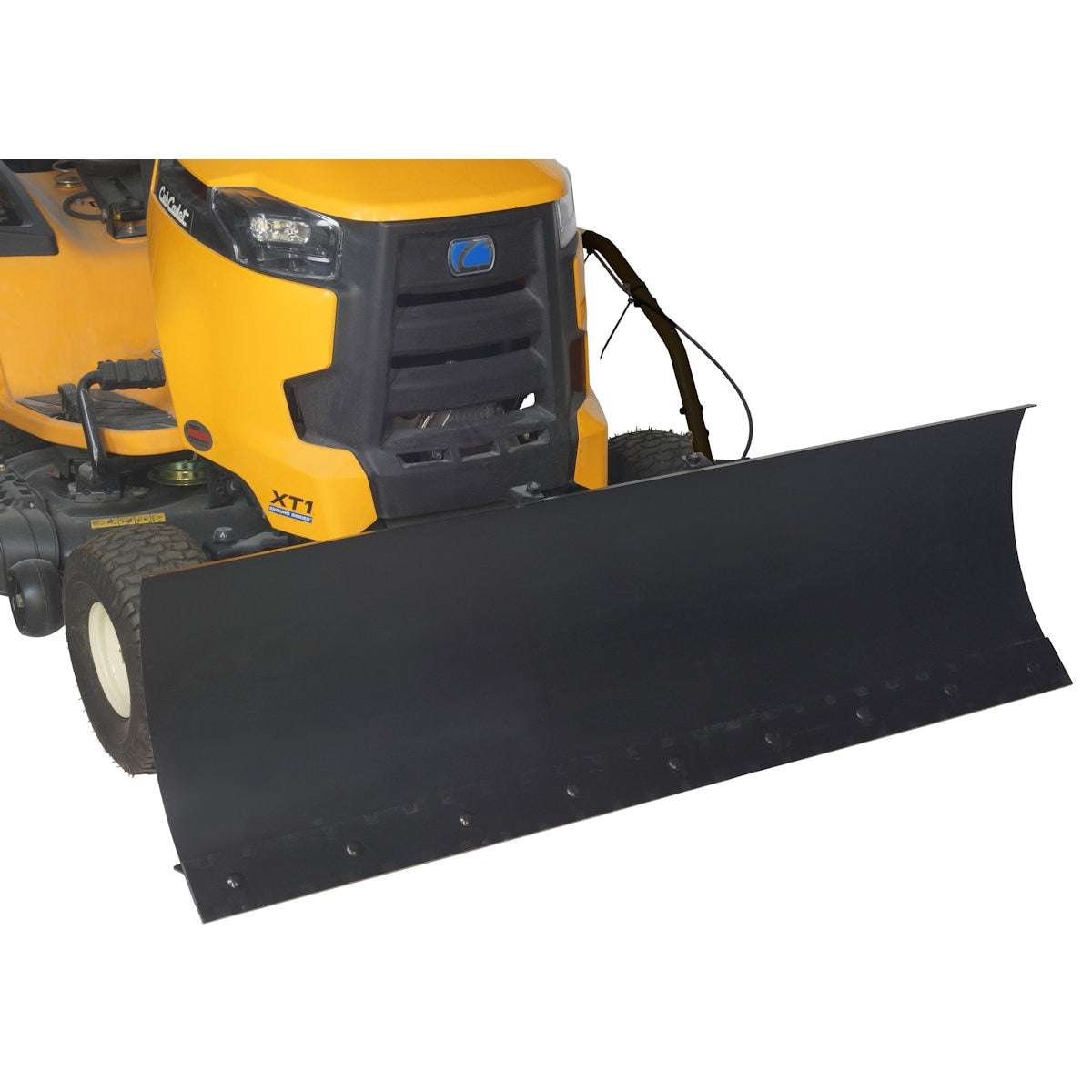

Impact Pro 46" Garden Tractor Plow (PL46AG) Replacement Parts

IMPACT Implements Impact Pro 46" Garden Tractor Plow (PL46AG) Replacement Parts

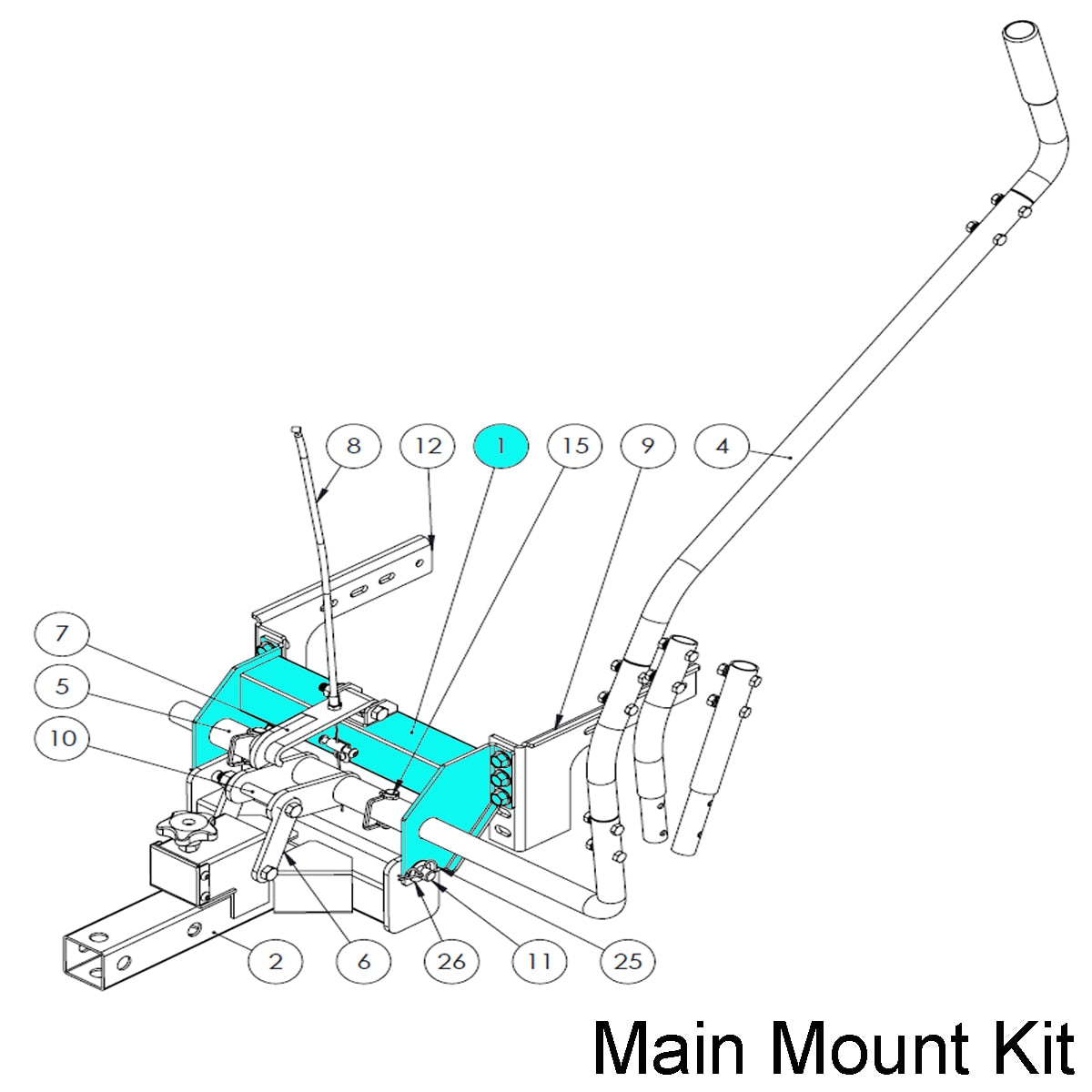

Main Mount (part 1):
• #1 - Main Mount Assembly (qty 1)
• Pinch Bolt (qty 1)

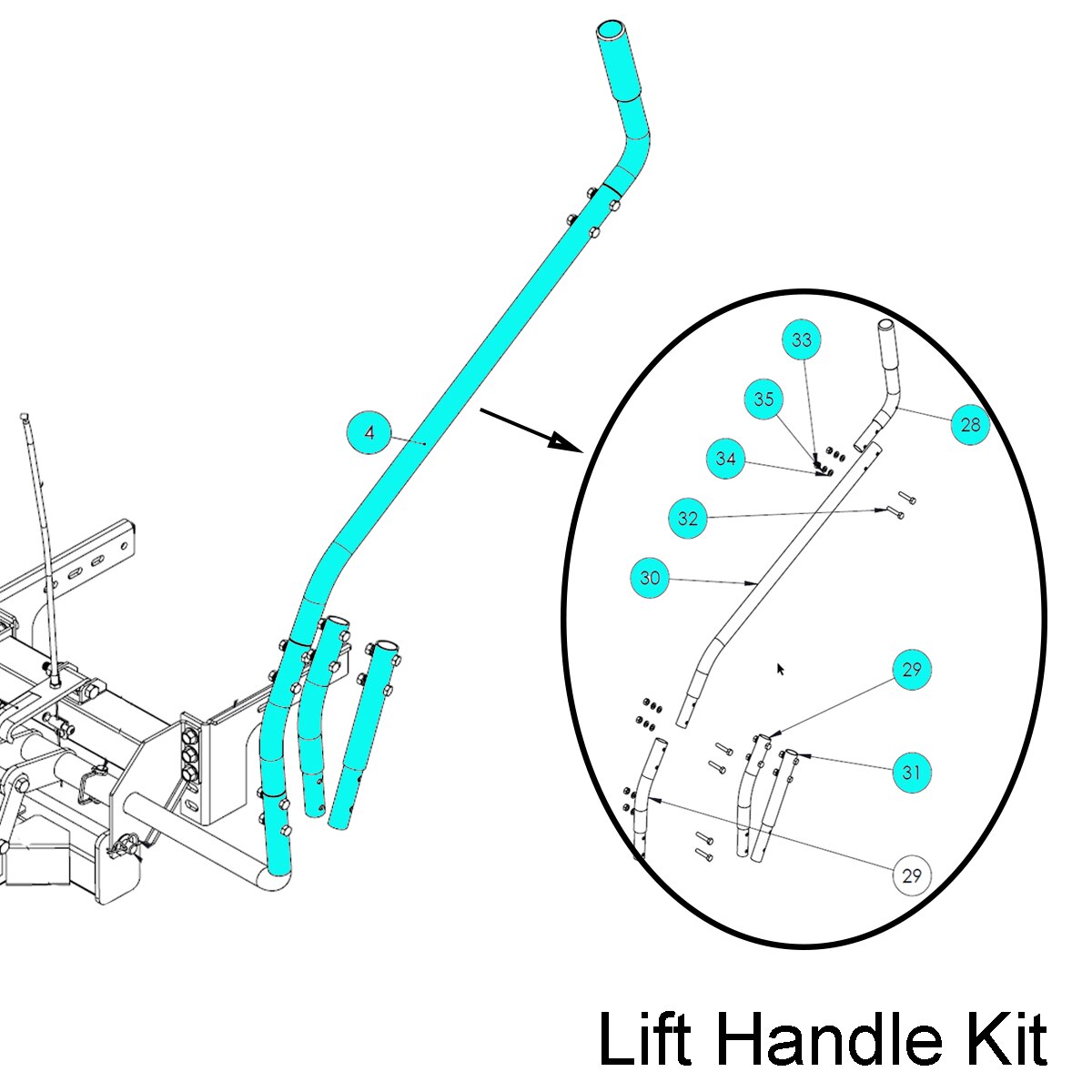

Lift Handle Kit (part 4, 28-35):
• #4 - Lift Handle Assembly (qty 1)
• #28 - Handle with Cap (qty 1)
• #29 - Handle Tube 1 (qty 2)
• #30 - Handle Tube 2 (qty 1)
• #31 - Handle Tube 3 (qty 1)
• #32 - HBOLT 0.2500-20x1.37x0.75-N (qty 10)
• #33 - HNUT 0.2500-20-D-N (qty 10)
• #34 - Narrow FW 0.25 (qty 10)
• #35 - Regular LW 0.25 (qty 10)

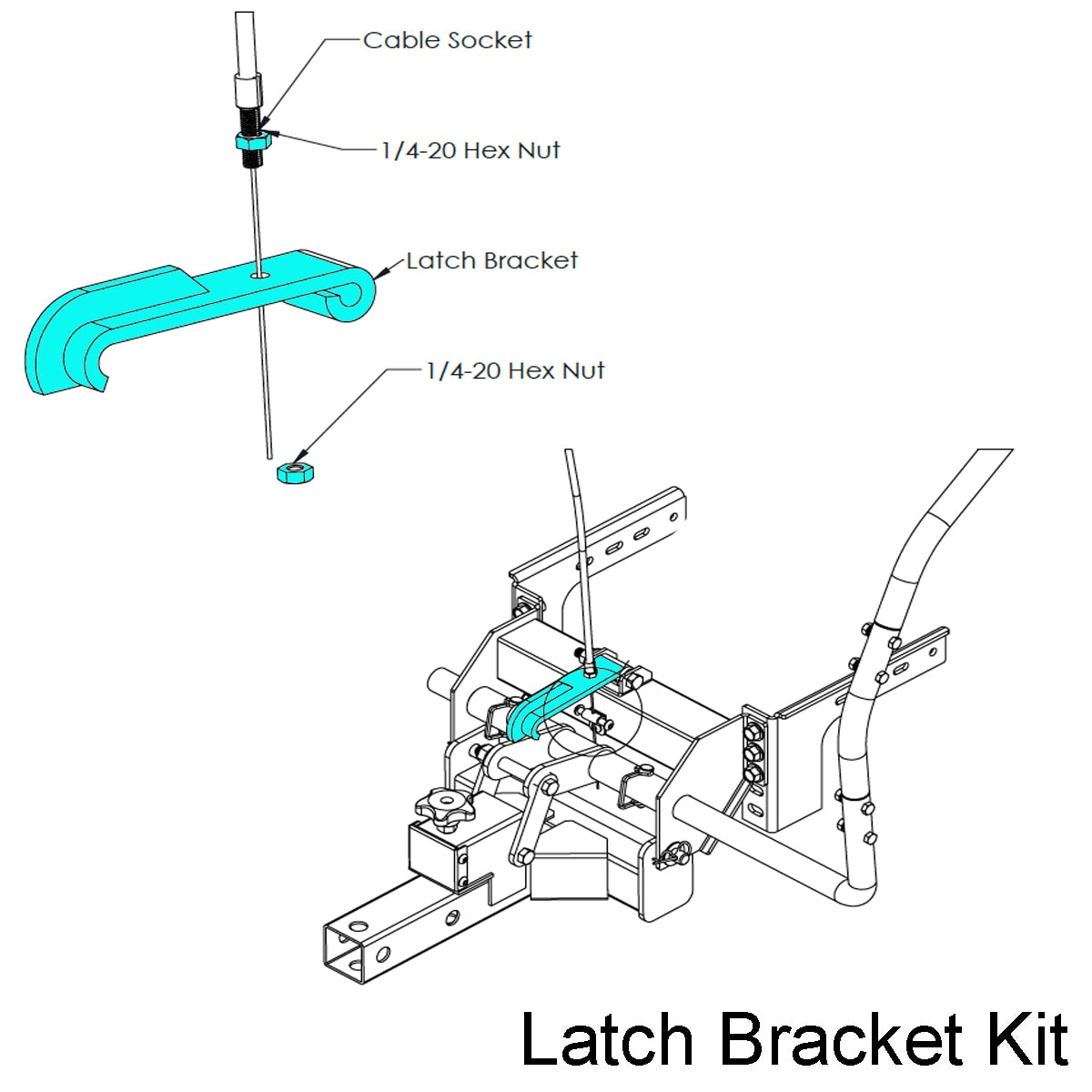

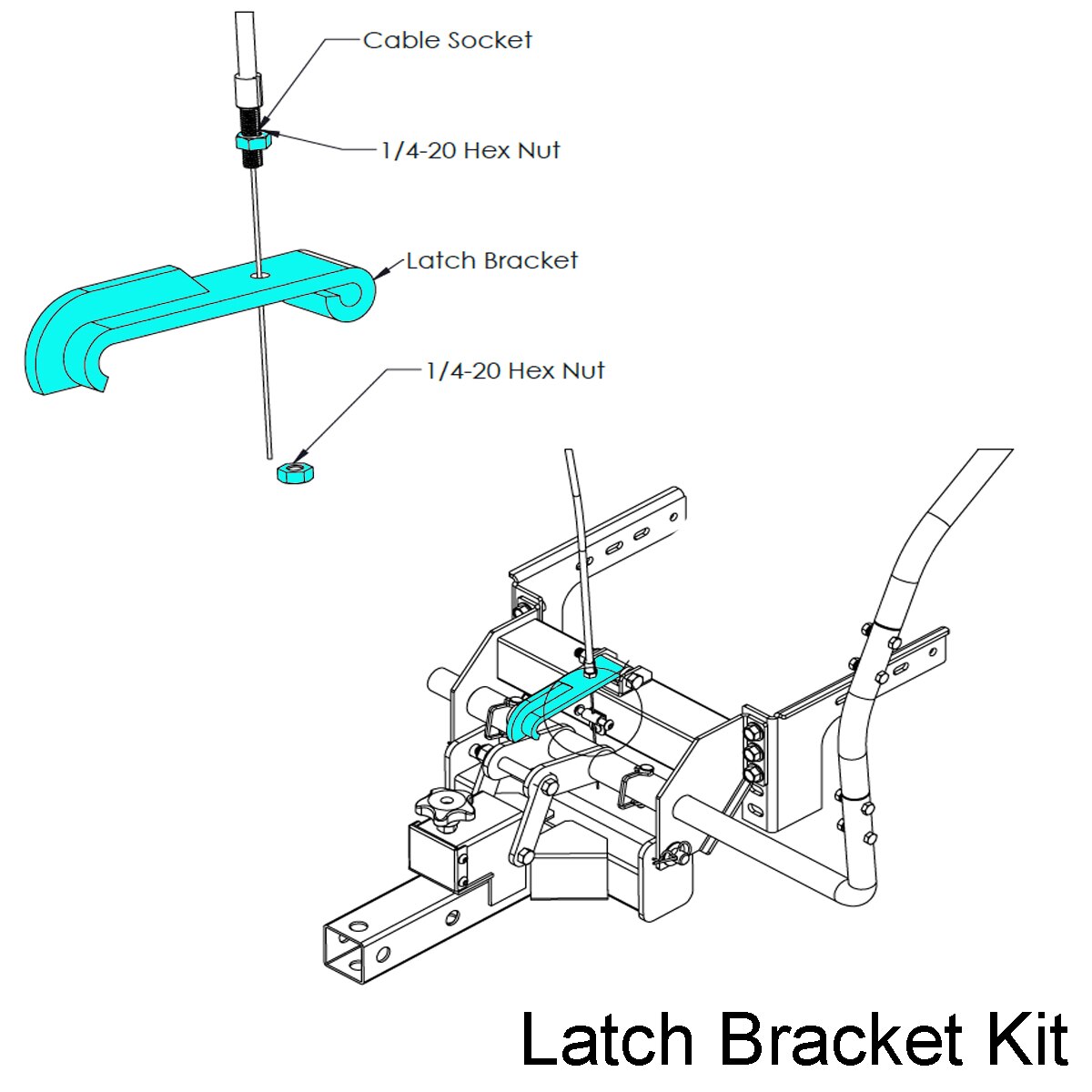

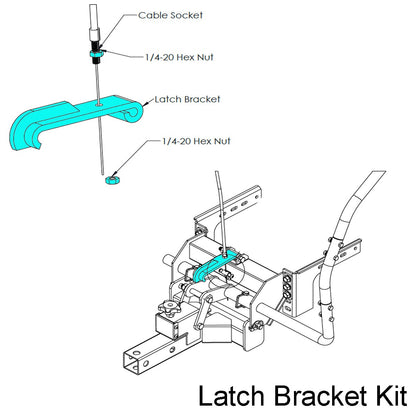

Latch Bracket Kit (part 7, Cable Socket, Hex Nut)
• #7 - Latch Bracket (qty 1)
• Cable Socket(qty 1)
• 1/4-20 Hex Nut (qty 2)
• Compression Spring (qty 1)
• Compression Spring Bolt (qty 1)

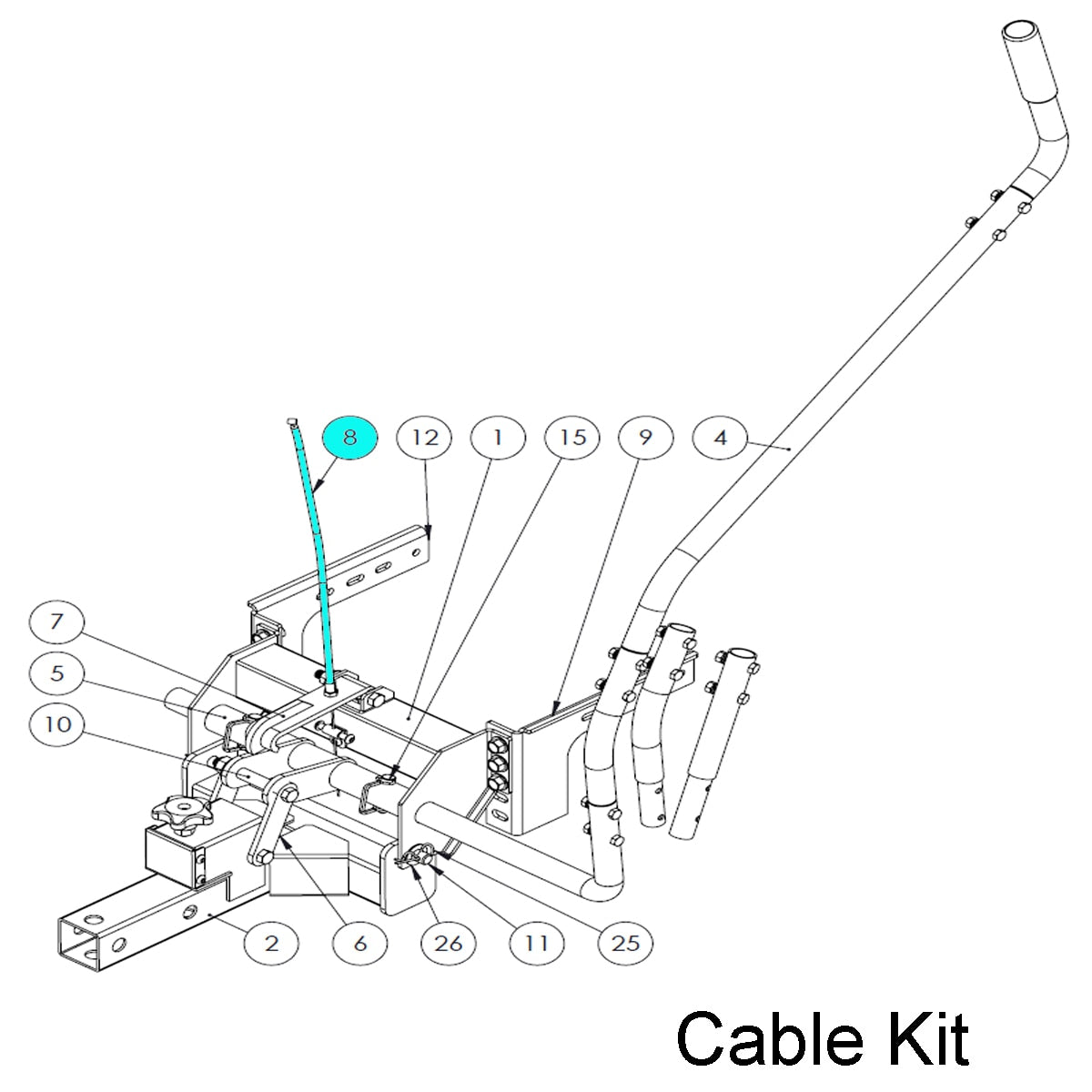

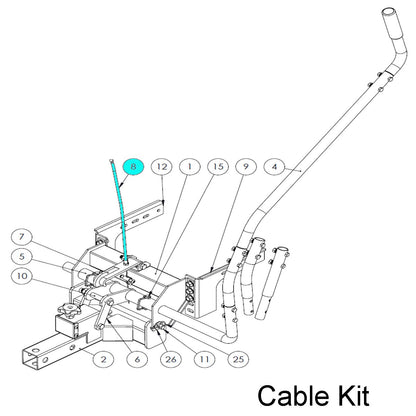

Cable (# 8)
• #8 - Cable Assembly (qty 1)

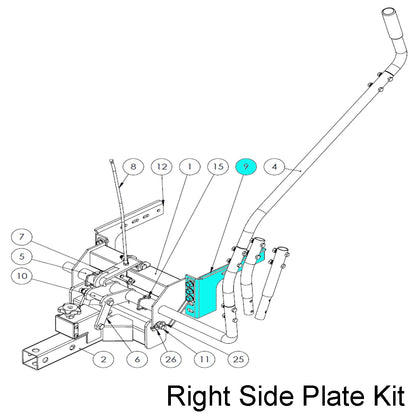

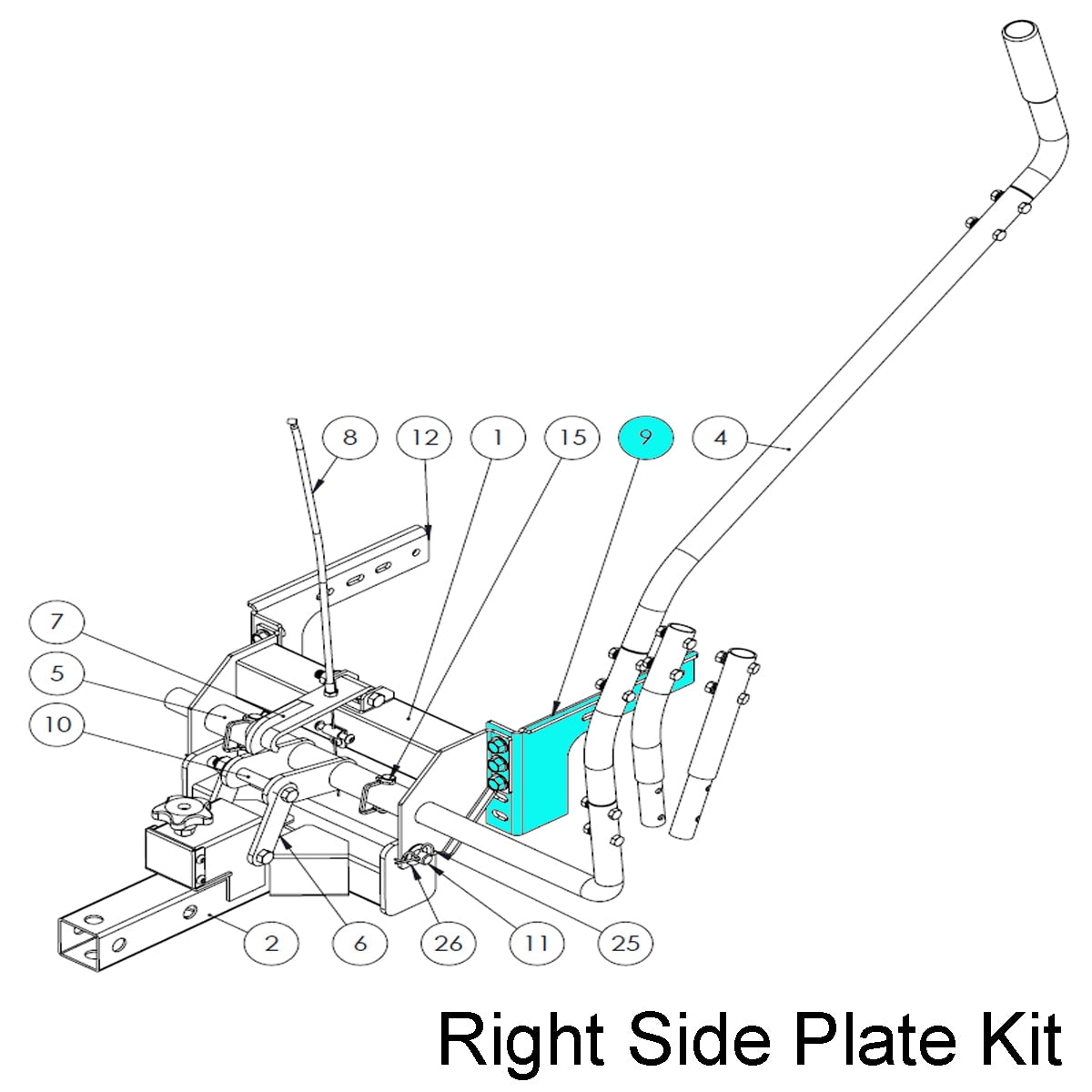

Right Side Plate (#9, #37-44)
• #9 - Side Plate Right (qty 1)
• #37 - HBOLT 0.3125-18x1x0.875-S (qty 4)
• #38 - Narrow FW 0.3125 (qty 4)
• #39 - Regular LW 0.3125 (qty 4)
• #40 - HNUT 5/16-18 (qty 4)
• #41 - HBOLT 0.2500-20x1x.075-S (qty 4)
• #42 - Narrow FW 0.25 (qty 4)
• #43 - HNUT 1/4-20 (qty 4)
• #44 - Regular LW 0.25 (qty 4)

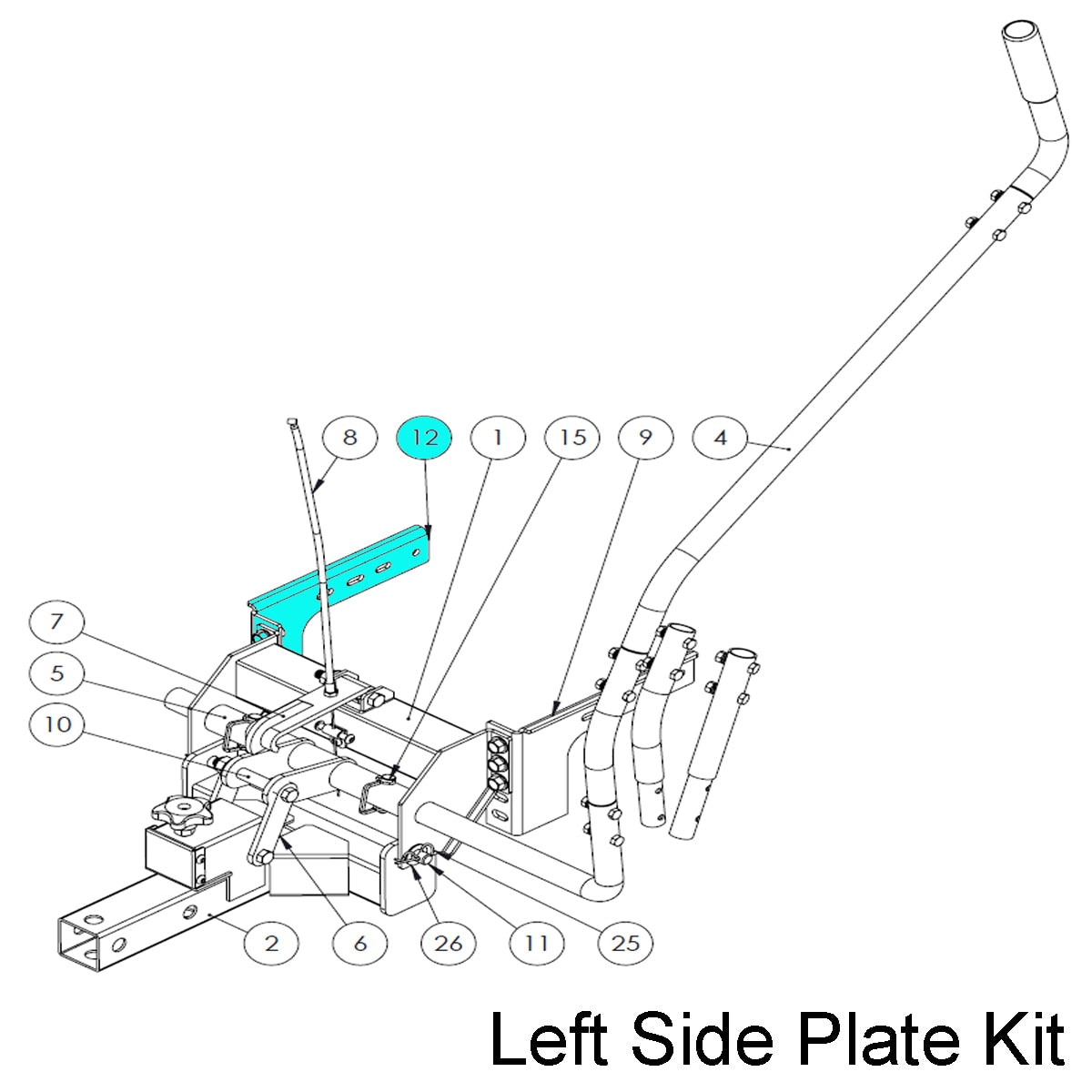

Left Side Plate (#9, #37-44)
• #12 - Side Plate Left (qty 1)
• #37 - HBOLT 0.3125-18x1x0.875-S (qty 4)
• #38 - Narrow FW 0.3125 (qty 4)
• #39 - Regular LW 0.3125 (qty 4)
• #40 - HNUT 5/16-18 (qty 4)
• #41 - HBOLT 0.2500-20x1x.075-S (qty 4)
• #42 - Narrow FW 0.25 (qty 4)
• #43 - HNUT 1/4-20 (qty 4)
• #44 - Regular LW 0.25 (qty 4)

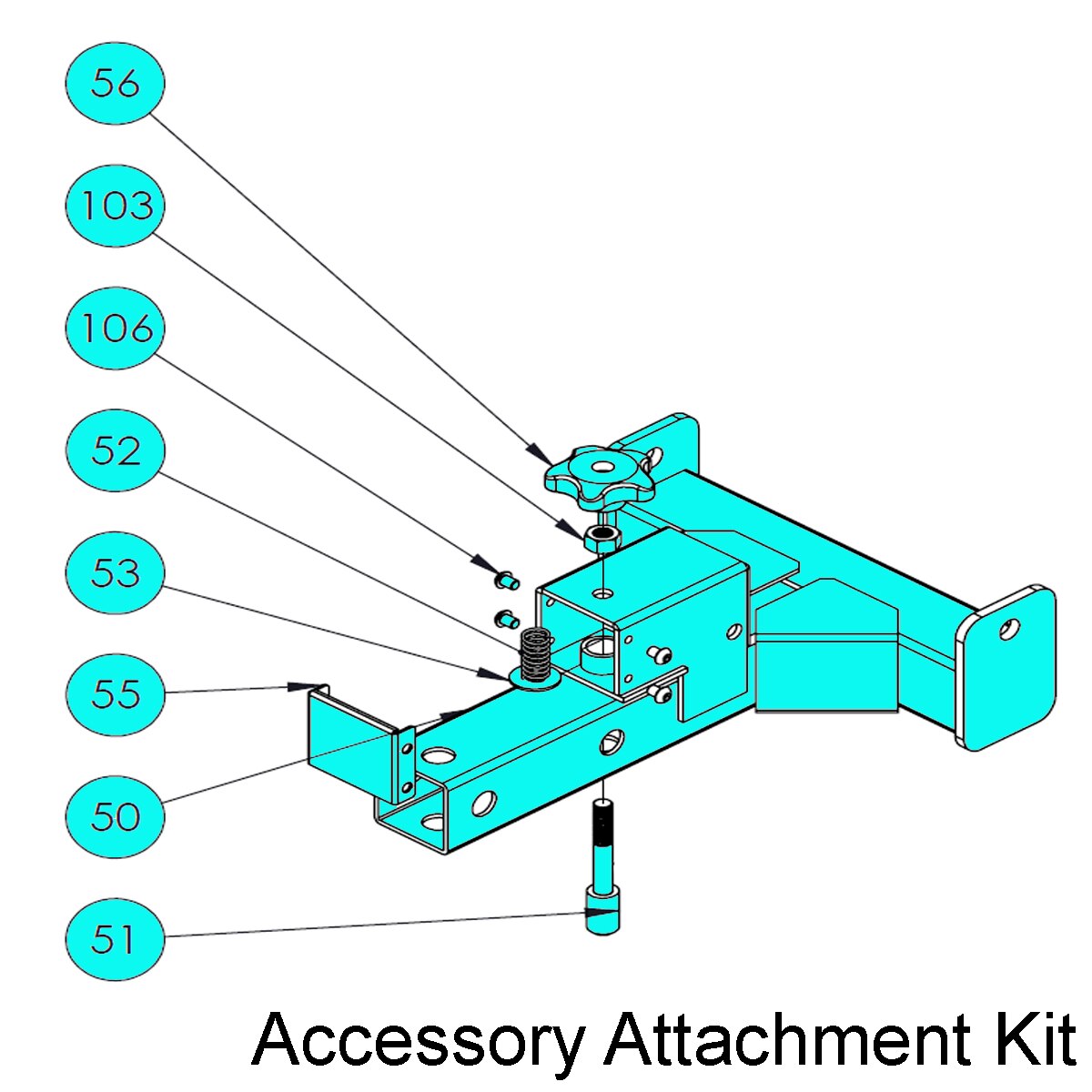

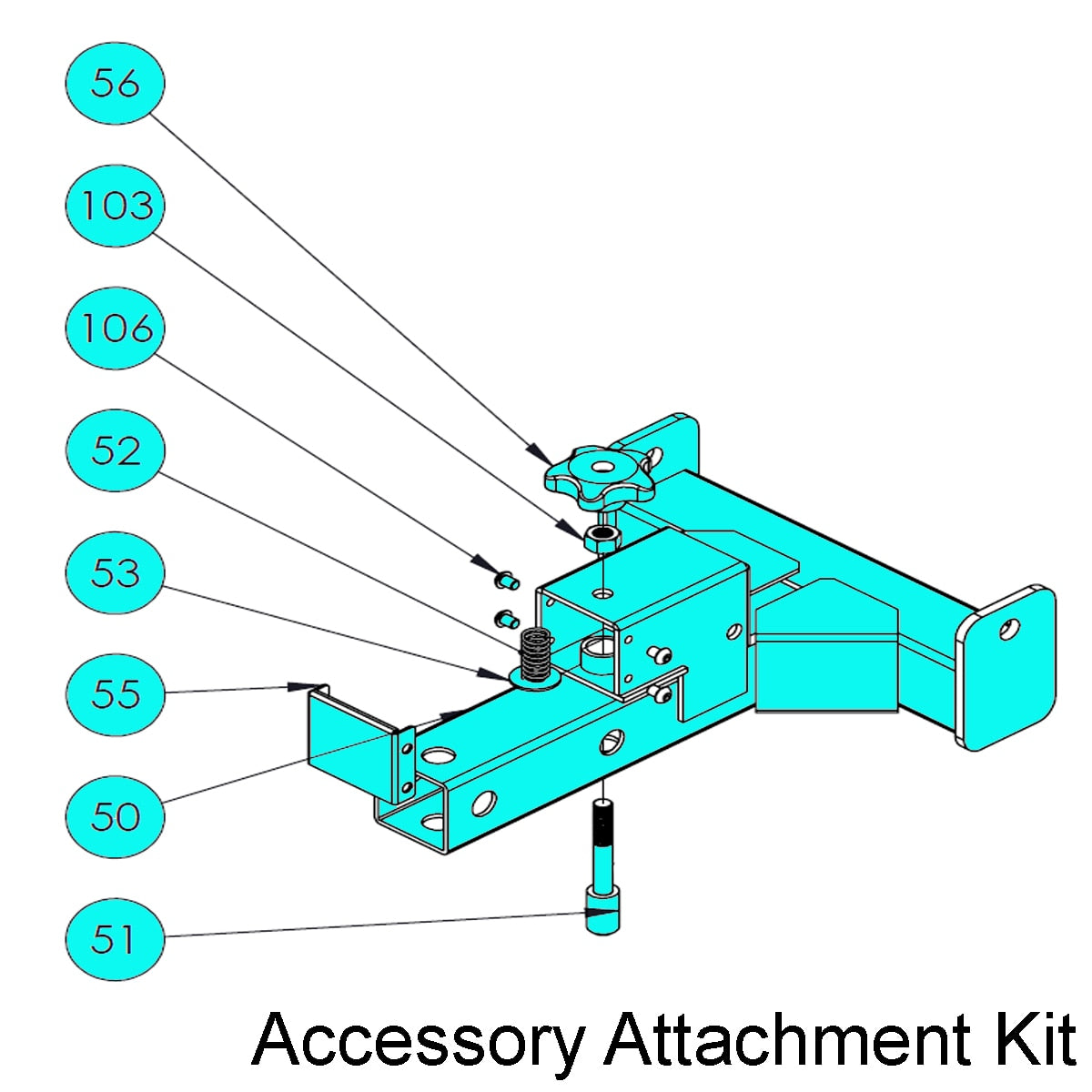

Accessory Attachment Kit (#50-53, 55-56, 103, 106)
• #50 - Accessory Attachment Weldment (qty 1)
• #51 - Plunger Rod (qty 1)
• #52 - Plunger Spring (qty 1)
• #53 - Regular FW 0.375 (qty 1)
• #55 - Plunger Cover Plate (qty 1)
• #56 - Five Arm Knob Threaded Through Hole M10 internal (qty 1)
• #103 - B18.2.4.2M - Hex nut, Style 2, M10 x 1.5, with 16mm WAF --D-S (qty 1)
• #106 - M6 Screw (qty 4)

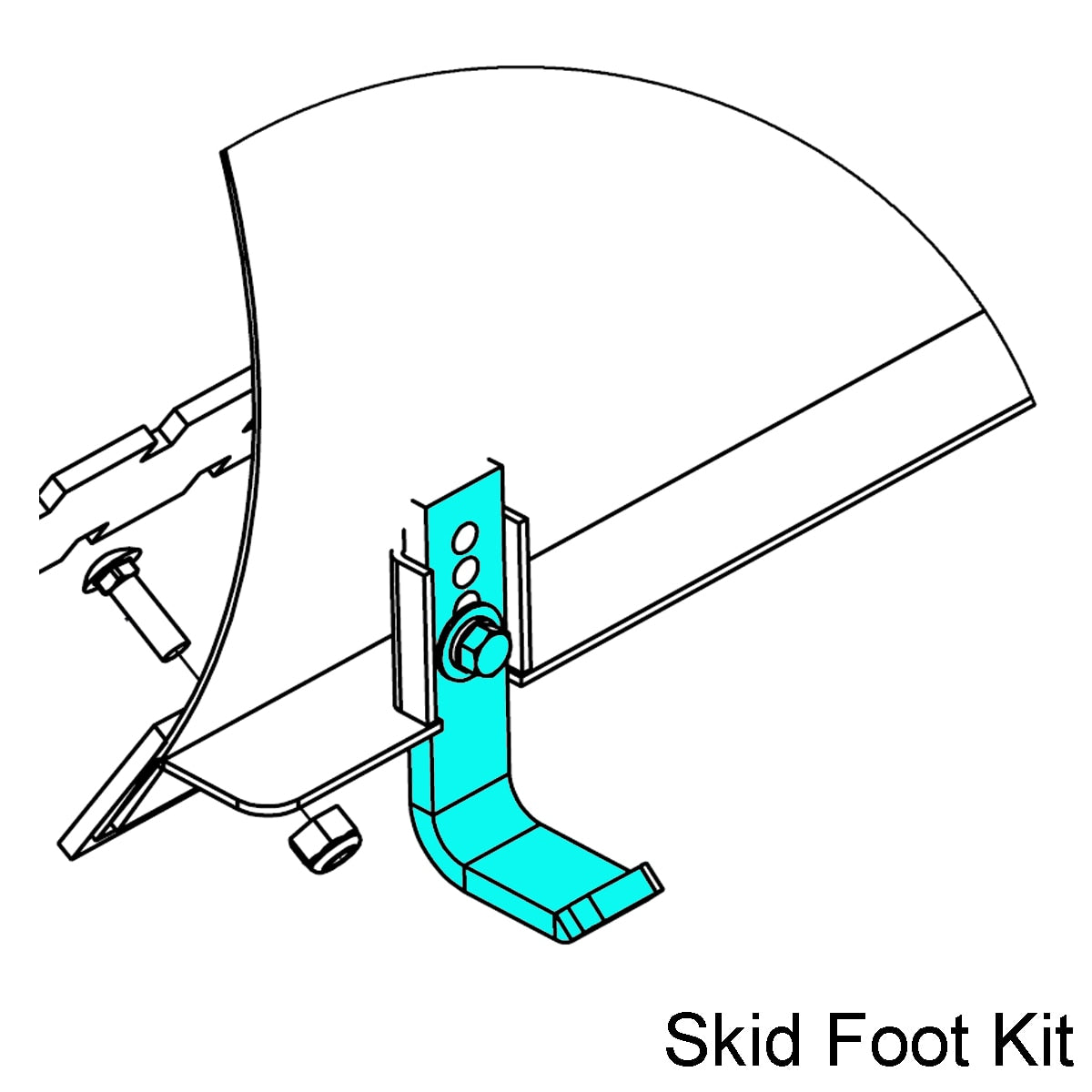

Skidfoot Kit
• Skid Foot (qty 1)
