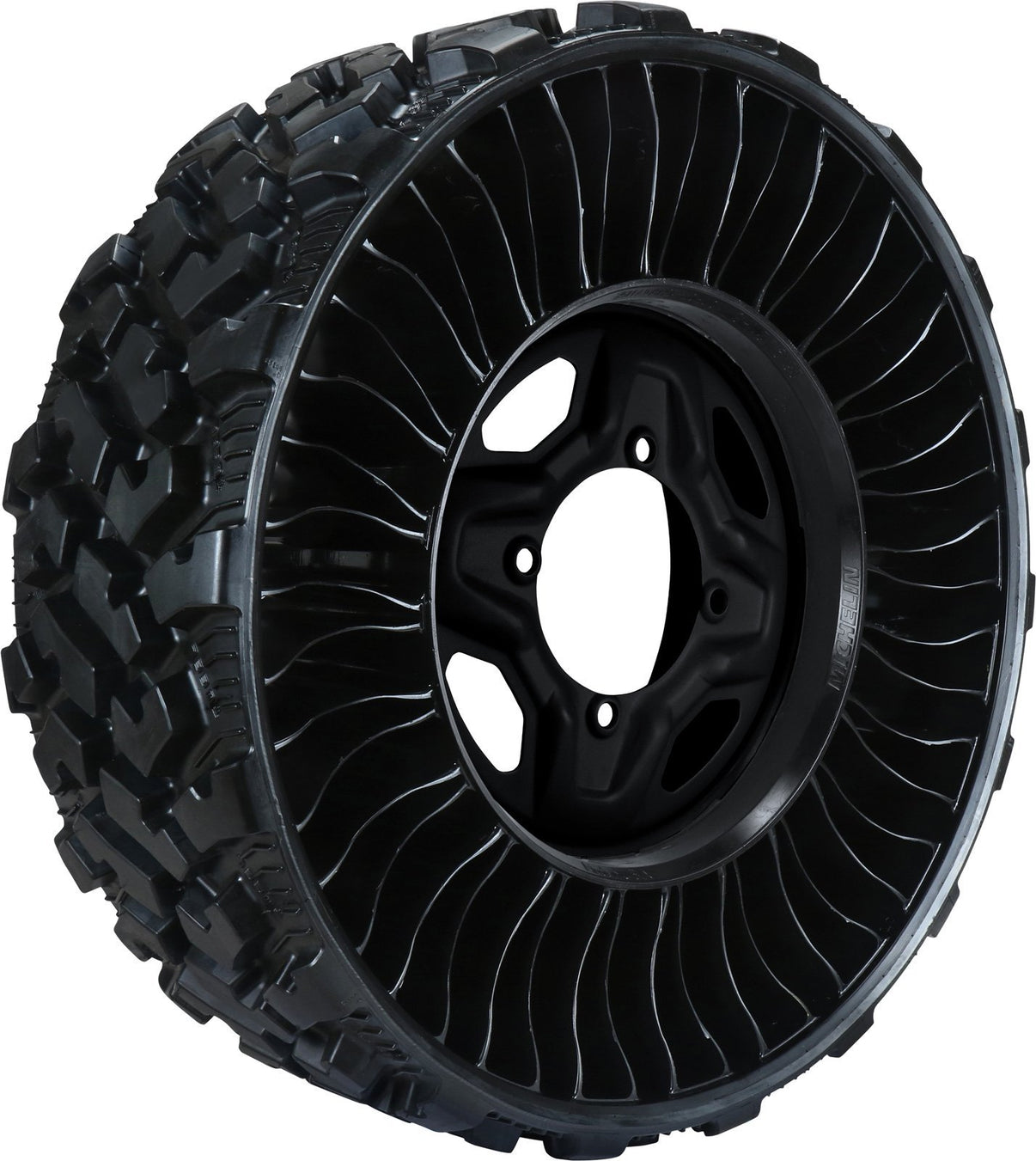

The MICHELIN® X® TWEEL®UTV airless radial tire is a single unit that replaces the current pneumatic tire/wheel/valve assembly. Once bolted on, there is no air pressure to maintain, thus eliminating the need to carry spare tires, tools, or repair kits.
The full width poly-resin spokes help dampen the ride for enhanced operator comfort, while providing outstanding lateral stiffness for excellent cornering and side-hill stability. In addition, the low pressure contact patch of the MICHELIN X TWEEL UTV helps provide outstanding off-road traction.

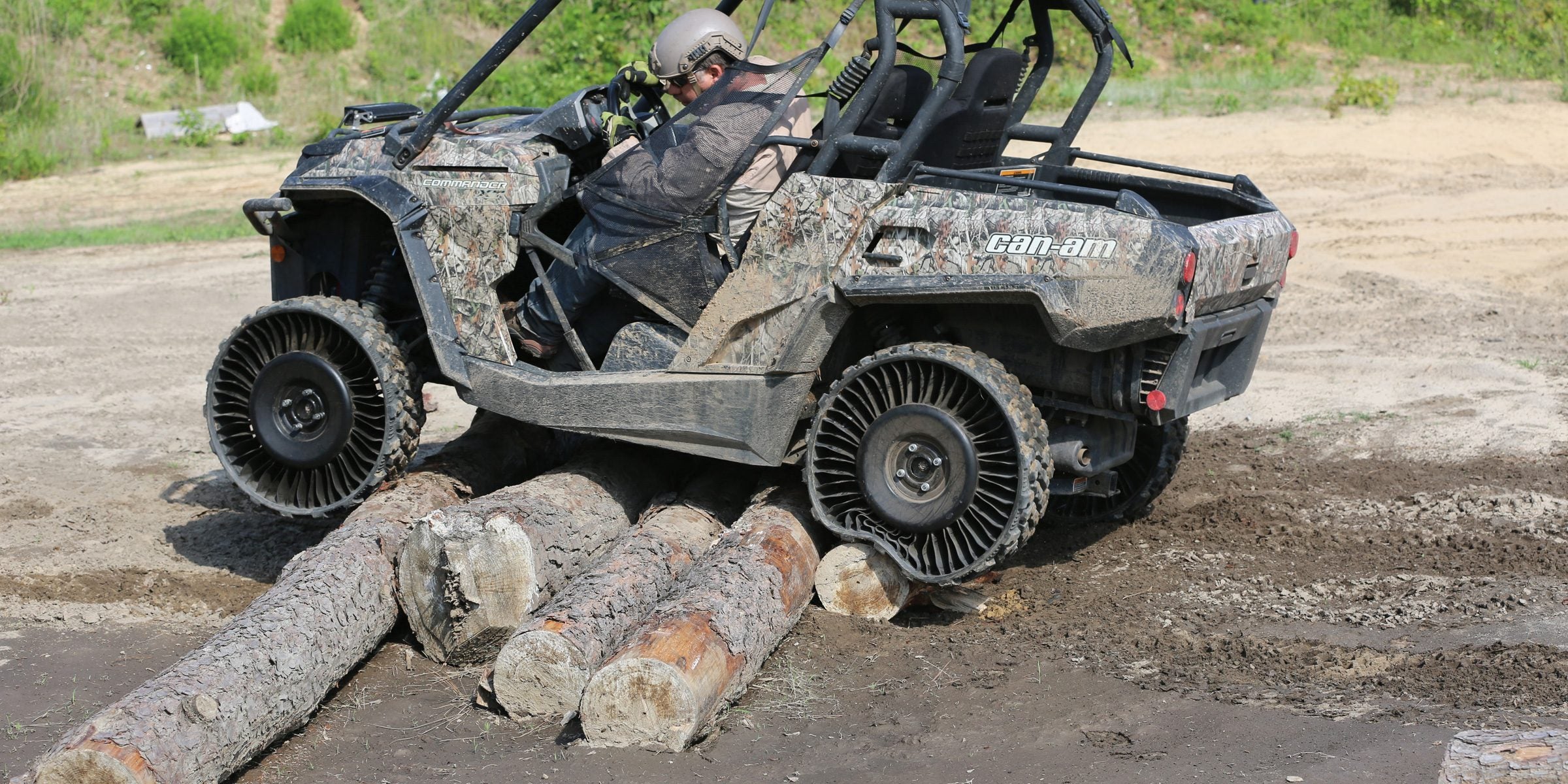

The MICHELIN X TWEEL UTV airless radial tire was developed to improve mobility in difficult environments and conditions where vehicles are exposed to rugged roads, jagged terrain and other hostile elements. In the face of these obstacles, the TWEEL® UTV product is designed to perform like a pneumatic radial tire, but with the robustness and damage resistance of an airless tire.
|
|
 |
 |
 |
 |
 |
| MSPN 07195 & 65631 | MSPN 38483 & 01638 | MSPN 34190 | MSPN 07182 & 36384 | MSPN 43096 |
| MSPN | Description | Size | Max Load | Max Speed | Hub Color | Bolt Pattern | Offset | Lug Nut Seat Type | Center Hole Dia. | Weight |
| 07195 * | X TWEEL ATV | 26x9N14 | 506 lbs | 37 mph | Flat Black | 4x110 mm | +45mm | 60º Conical/Tapered | 2.7 in | 50 lbs. |
| 65631 * | X TWEEL UTV | 26x9N14 | 715 lbs | 50 mph | Flat Black | 4x110 mm | +52 mm | 60º Conical/Tapered | 2.7 in | 57 lbs. |
| 38483 | X TWEEL UTV | 26x9N14 | 715 lbs | 37 mph | Flat Black | 4x156 mm | +41 mm | 60º Conical/Tapered | 5.2 in | 50 lbs. |
| 01638 * | X TWEEL UTV | 26x9N14 | 715 lbs | 50 mph | Flat Black | 4x156 mm | +30 mm | 60º Conical/Tapered | 5.2 in | 50 lbs. |
| 34190 | X TWEEL UTV | 26x9N14 | 715 lbs | 37 mph | Desert Tan (FDE) | 4x137 mm | +48 mm | 60º Conical/Tapered | 4.1 in | 50 lbs. |
| 01782 | X TWEEL UTV | 26x9N14 | 715 lbs | 37 mph | Flat Black | 4x137 mm | +48 mm | 60º Conical/Tapered | 4.1 in | 50 lbs. |
| 36384 * | X TWEEL UTV | 26x9N14 | 715 lbs | 50 mph | Flat Black | 4x137 mm | +48 mm | 60º Conical/Tapered | 4.1 in | 50 lbs. |
| 43096 * | X TWEEL UTV | 26x9N14 | 715 lbs | 50 mph | Flat Black | 5x4.5 in | +25 mm | 60º Conical/Tapered | 3.13 in | 50 lbs. |
* Available early 2019. NOTE: Product measurements are subject to change and are listed here for your convenience. Please see your MICHELIN representative for up-to-date data.
