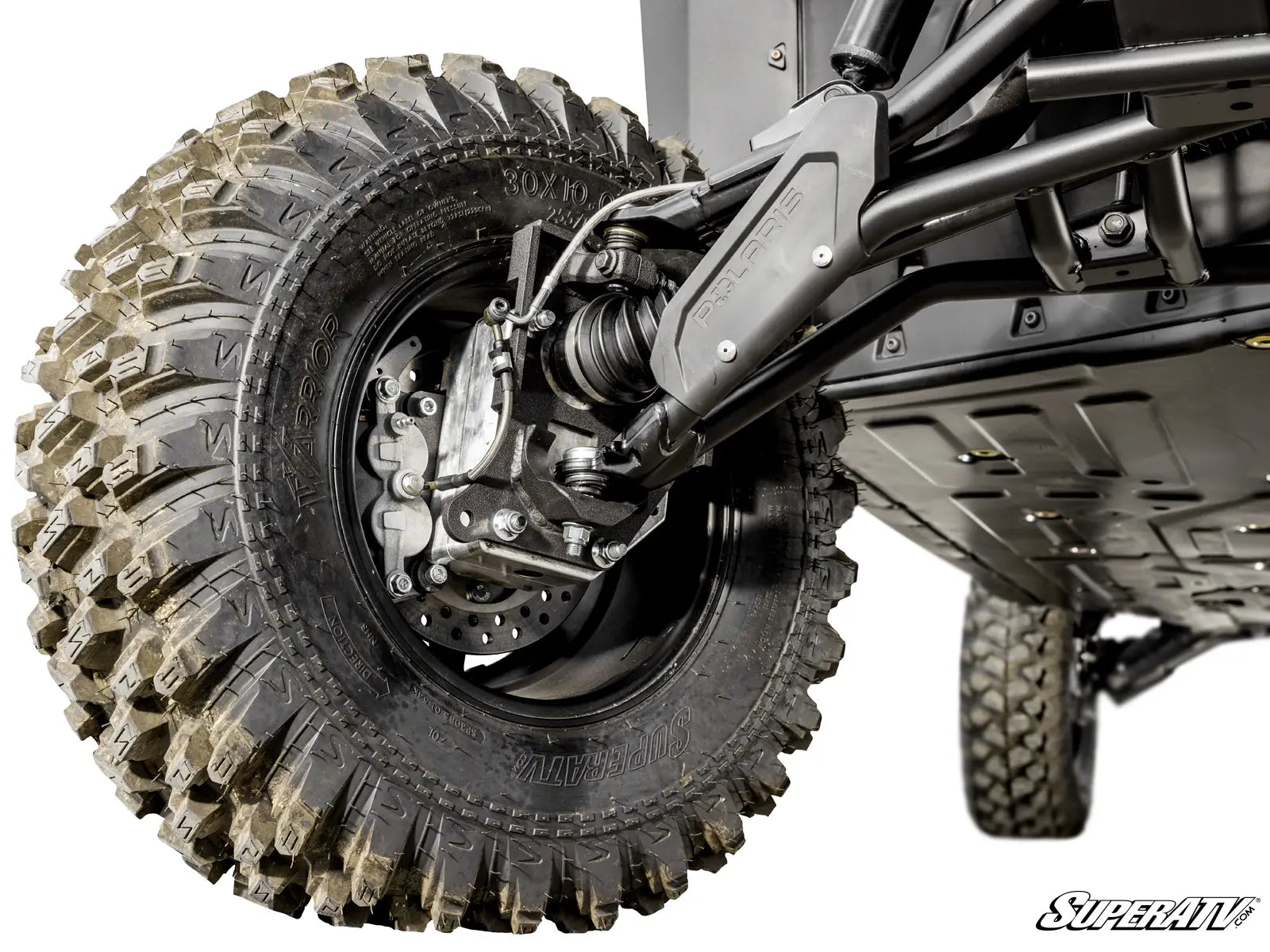

Polaris Ranger XD 1500 4" Portal Gear Lift

Get More Done with GDP Portals
You can get more power and performance on your Polaris Ranger XD 1500 with SuperATV's 4" GDP Portal Gear Lift. How Choose a 15% or 30% gear reduction to boost torque and make towing easier. Plus the 4" lift gives you clearance for bigger obstacles and larger tires. You'll feel the difference every time you hit the gas, whether you're working or playing.

• Gives you a 4" lift and a gear reduction in one package
• Choose a 15% or 30% gear reduction
• Maintains OEM suspension angles

What is a Dual Idler
Perfection takes time. After years of research and development, we've made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don't do a thing if they're not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry's toughest 9310 steel alloy. Didn't think dual idlers mattered With GDP's quality and experience, they finally do.

Get the Exact Performance You Need
You get your choice of a 15% or 30% gear reduction to customize your torque and acceleration. If you want the maximum torque possible, go with a 30% gear reduction. It'll give you punch power that will help you take off from a dead stop or haul big loads easier. Plus, it's perfect for bigger tires. Go with a 15% gear reduction to maintain a high top speed while still getting a bump in torque.

Portals Protect Your Drivetrain
GDP Portals put the lift and gear reduction right in the wheel hub it's the perfect way to lift your Ranger XD 1500. That's because your whole drivetrain benefits from the gear reduction, and your axles keep their factory angles. That means less wear and tear across all your components.

The Toughest Ranger XD 1500 Portals You Can Get
When you're putting in long hours getting work done, the last thing you need is a breakdown. That's why our cast and 6061 billet aluminum housings are perfectly designed for hard work and hard rides. They're backed by our advanced steel backing plates that give them unparalleled strength. GDP will get you through the work week and weekend.

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Top-Rated Customer Service
Still need a little help getting exactly what you need We've got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

4" Portal Gear Lift Includes

• (4) Assembled portal hub boxes complete w/ 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs and precision-ground stainless steel slotted rotors w/ lugs
• (4) Specialized steel alloy backing plates
• (4) Steel caliper mounting plates with spacers
• (2) Steel steering arms
• Extended brake lines with parking brake
• All required hardware including recessed castle nut socket

Max Tire Size Recommendations for 4" Portal Gear Lift
Max Tire Size	Required Suspension Setup with 4" Portals
30"	Stock
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Patent # 11,299,042
