Polaris Ranger XP 1000 RackBoss 2.0 Rack and Pinion

RackBoss 2.0 Raises the Bar
Whether you use stock or you've upgraded to an aftermarket rack, one thing is always true: the responsiveness of your steering is going to get worse over time. Or at least that was true until RackBoss 2.0. It's our updated and upgraded version of the original RackBoss that's built to be the strongest, most durable rack you can get. It uses our X24 Tech a dual-bushing design only in RackBoss 2.0 to reduce wear by over 50%. So install SuperATV's RackBoss 2.0 Rack and Pinion on your Polaris Ranger XP 1000. With it, you can run bigger tires, take on treacherous terrain, and ride with confidence everywhere you go.

Minimizes Wear and Tear with Our Dual-Bushing Design
We use a dual PTFE bushing design to prevent the wear and tear that you're used to. Thanks to our X24 Tech, which uses tough bushings at both ends of the rack, RackBoss 2.0 can power through bigger hits with larger tires without getting sloppy steering. You get like-new operation that lasts longer than any other Ranger 1000 steering rack. Plus, the built-in grease fittings allow you to push out all the crud that can get in when you go hard in mud or water. It's only possible with RackBoss 2.0.

Swaged Tube Tie Rods
Our swaged tube tie rods are tough but lightweight. The flared-out steel tube design boosts the strength beyond what a standard 7/8" tube would have. Plus, it comes paired with our unbeatable tie rod ends that use 16 mm rack threads and huge 14 mm rod threads. They won't let you down.

Solid Steel Bar Tie Rods
Solid steel bar tie rods give you the robust strength you need to ride through rough terrain. They're perfect for turning big tires through slop and navigating boulder fields. The 1" diameter steel rod is paired with beefy tie rod ends 3/4" outer tie rods and rebuildable inner tie rods that use 3/4" rod threads and 16 mm rack threads. All that strength lets you get wild.

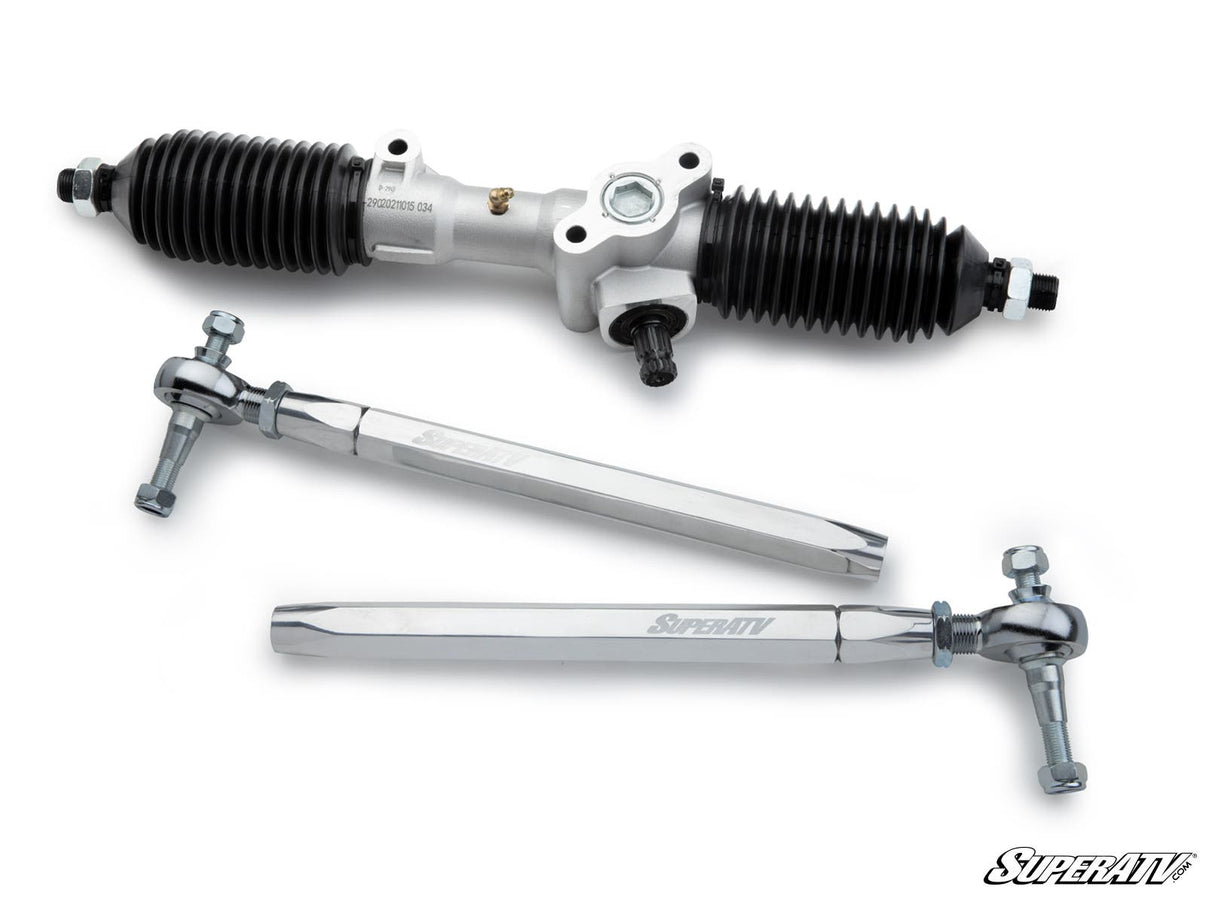

Billet Aluminum Hex Tie Rods
If you want the strongest, lightest, and best looking tie rods for your Ranger 1000, you want our billet aluminum hex tie rods. The polished billet construction is big and beefy, giving you the long-term durability you want without adding a ton of weight. They come complete with our oversized 3/4" outer tie rod ends and rebuildable inner tie rod ends that use 3/4" rod threads and 16 mm rack threads. For the biggest builds, hardest rides, and neck-turning good looks, these are the tie rods for you.

	RackBoss 2.0 Swaged Tie Rod	RackBoss 2.0 Solid Steel Tie Rod	RackBoss 2.0 Billet Tie Rod
X24 Tech Dual-Bushing Design
Inner Ball and Socket Thread Diameter	14 mm rod threads, 16 mm rack threads	3/4" rod threads, 16 mm rack threads	3/4" rod threads, 16 mm rack threads
Outer Tie Rod End Thread Diameter	14 mm	3/4"	3/4"
Tie Rod Material	Steel tube	Solid steel bar	6061 Billet aluminum
Greasable
Inner Boots
Steering Stop Kit
Misalignment Bushings, Tie Rod Studs, & Hardware

Patent No. 11,345,393

Fitment
