Polaris RZR 800 4" Portal Gear Lift

Gen 3 Portals are Geared for All
SuperATV's GDP 4" Portal Gear Lift for the Polaris RZR 800 is Geared for All. What do we mean by that Our 4" portal lift is available with 15% or 30% gear reductions. You can get exactly what you need for the way you ride.

Perfect for Mud
Get a 30% gear reduction and start flingin' mud. With a massive boost to torque, you can turn bigger tires that chew through the thickest bounty holes. When you gear down and go big, your machine will turn into a mud monster. Plus, with a 30% gear reduction you can still use it on the road and tear up trails and rocks.

Perfect for Rocks
Put 4" portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they're not even there. You'll have the clearance to get over anything without scratching up your skid plate, and you'll have room to run bigger tires. These portals are built for boulders.

Perfect for Trails
Get 4" portals and a 15% gear reduction on your Polaris RZR 800 and take on the trail less-traveled. You'll keep that high speed and leave your friends in the dust when you hit a hill or washout. It'll bring out your UTV's full potential.

Learn more about how tire size and gear reduction can unleash your machine's potential.

Better Gears

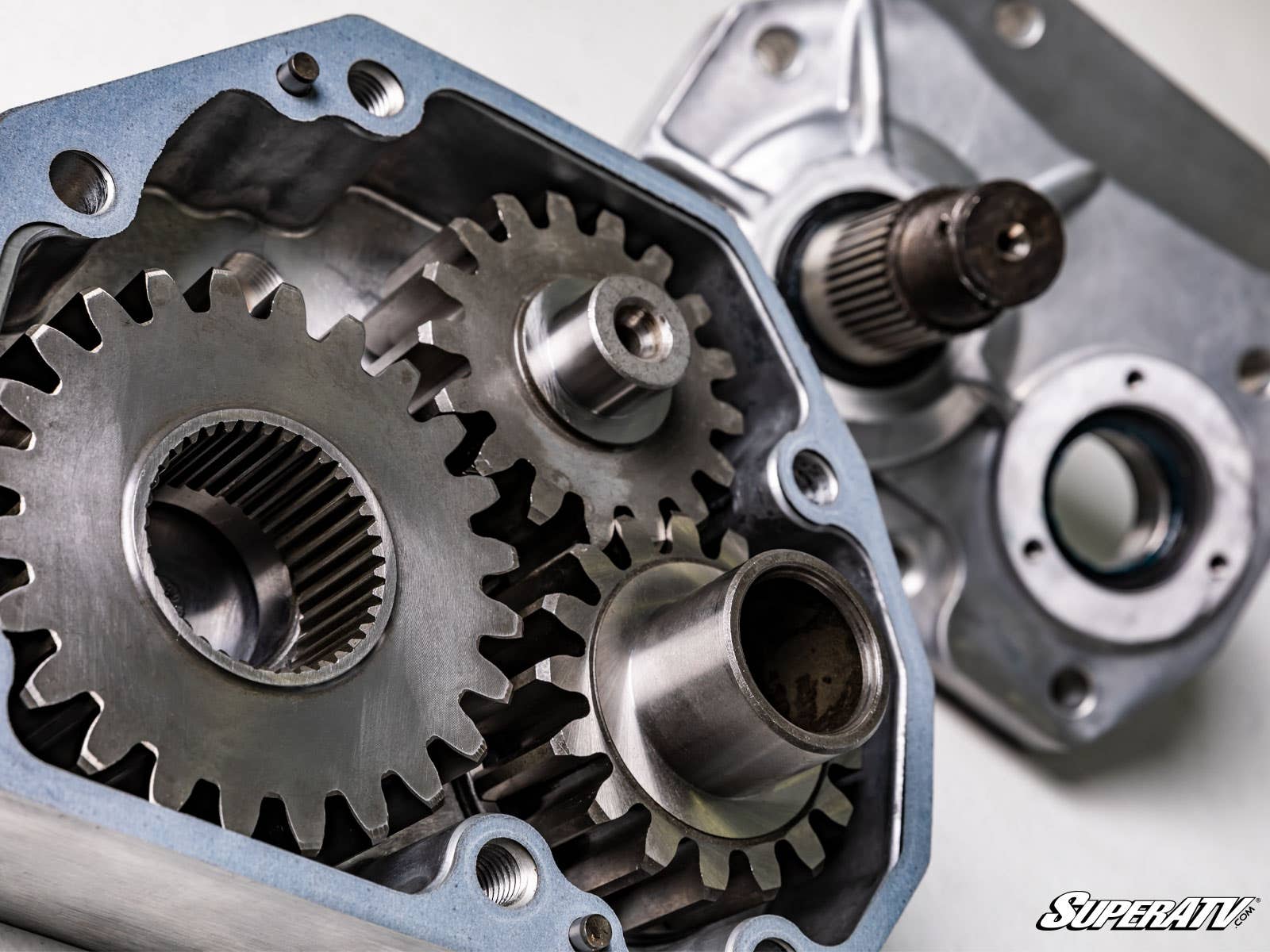

Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they're cool and quiet even when you're hammering down the throttle on the road, and they have strength to withstand every ride.

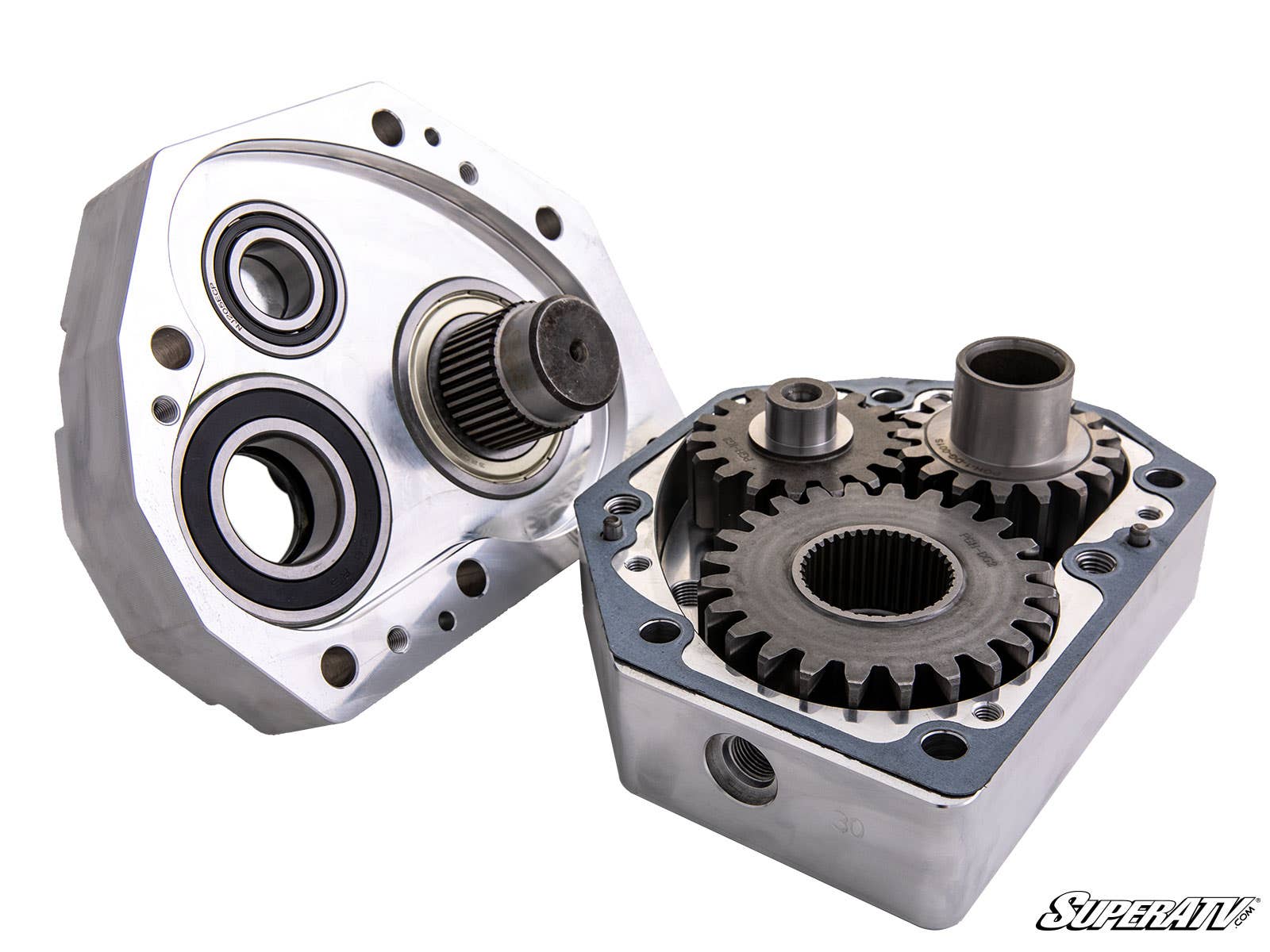

Stronger Housings by Design

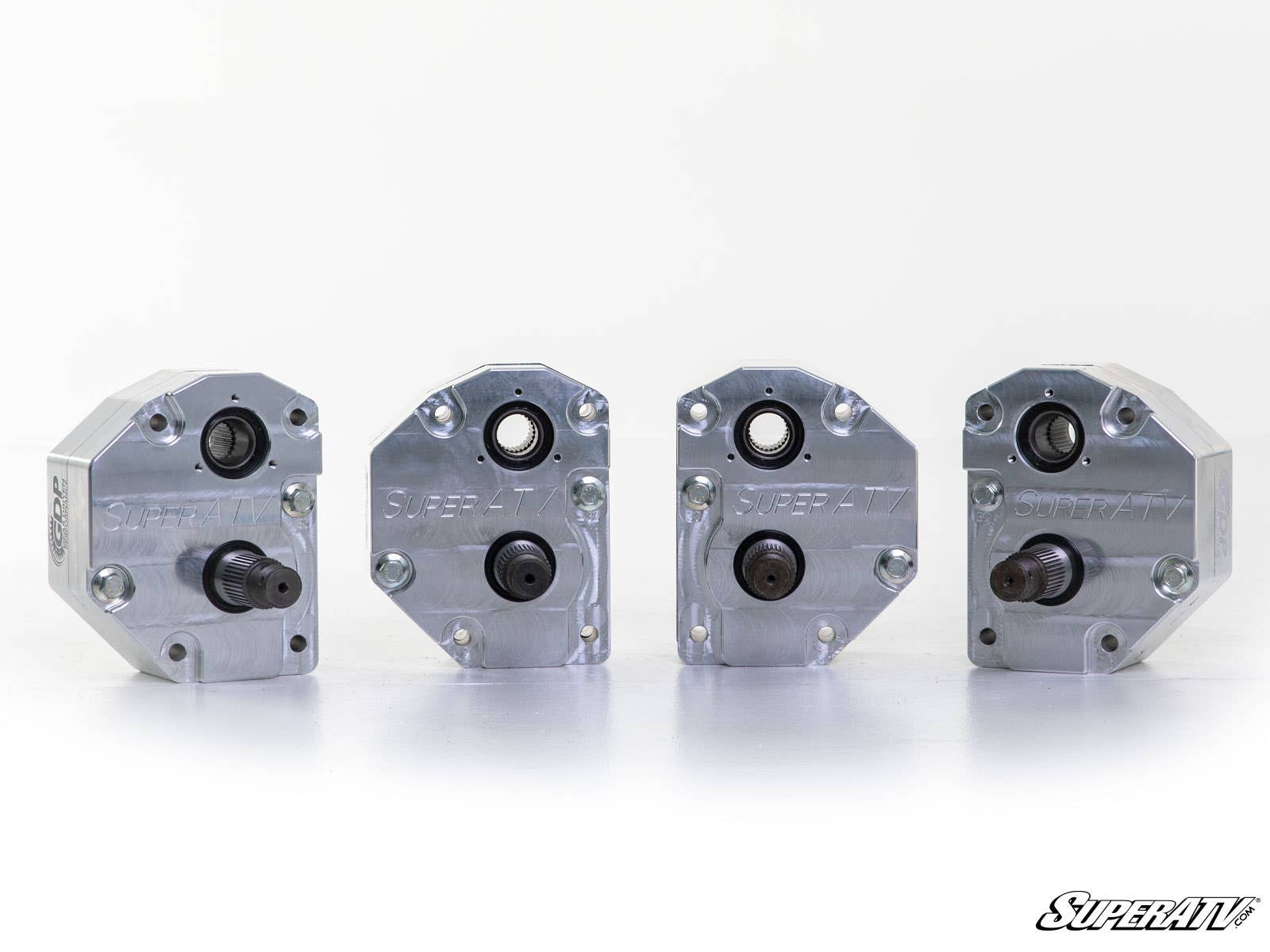

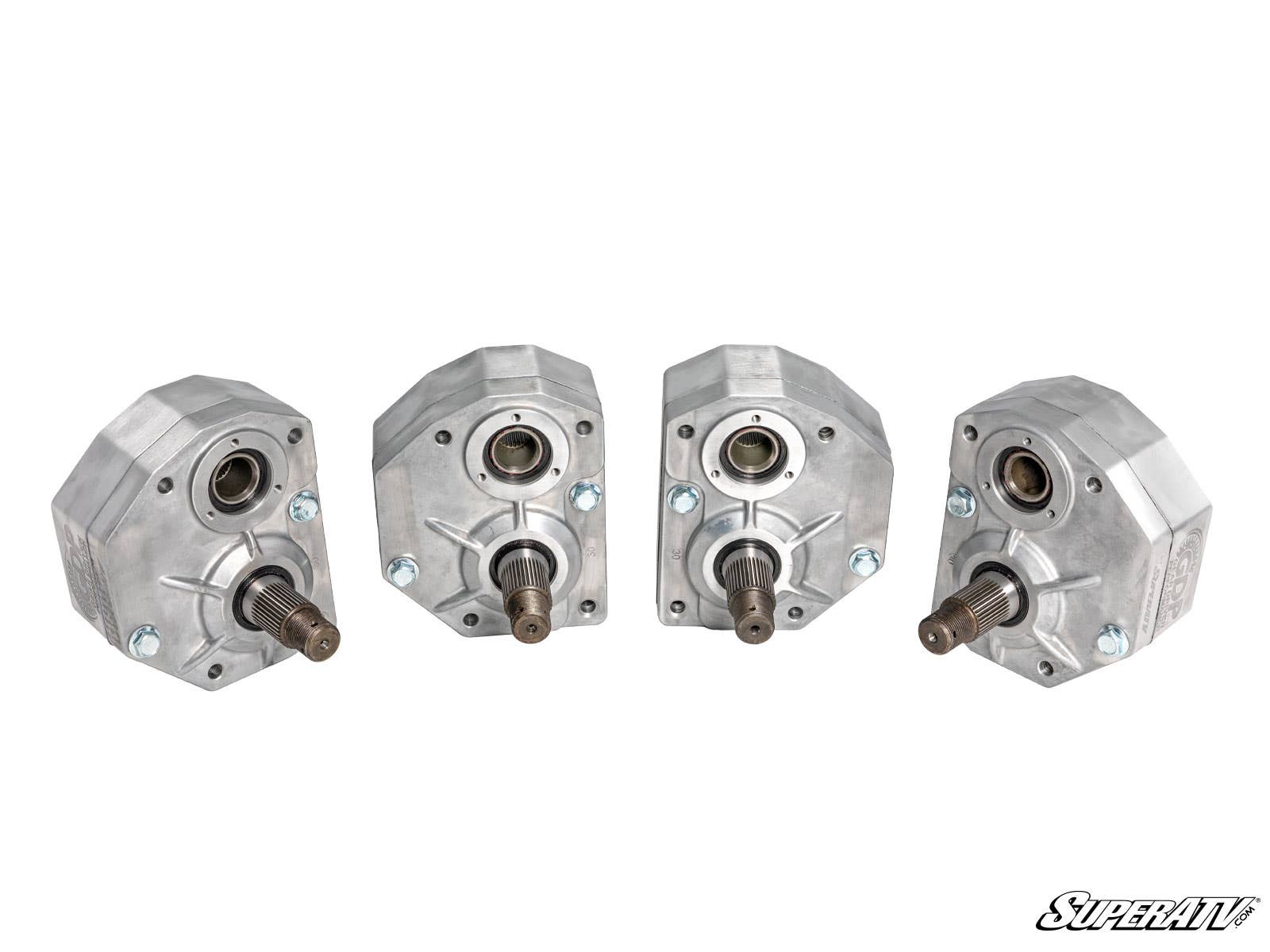

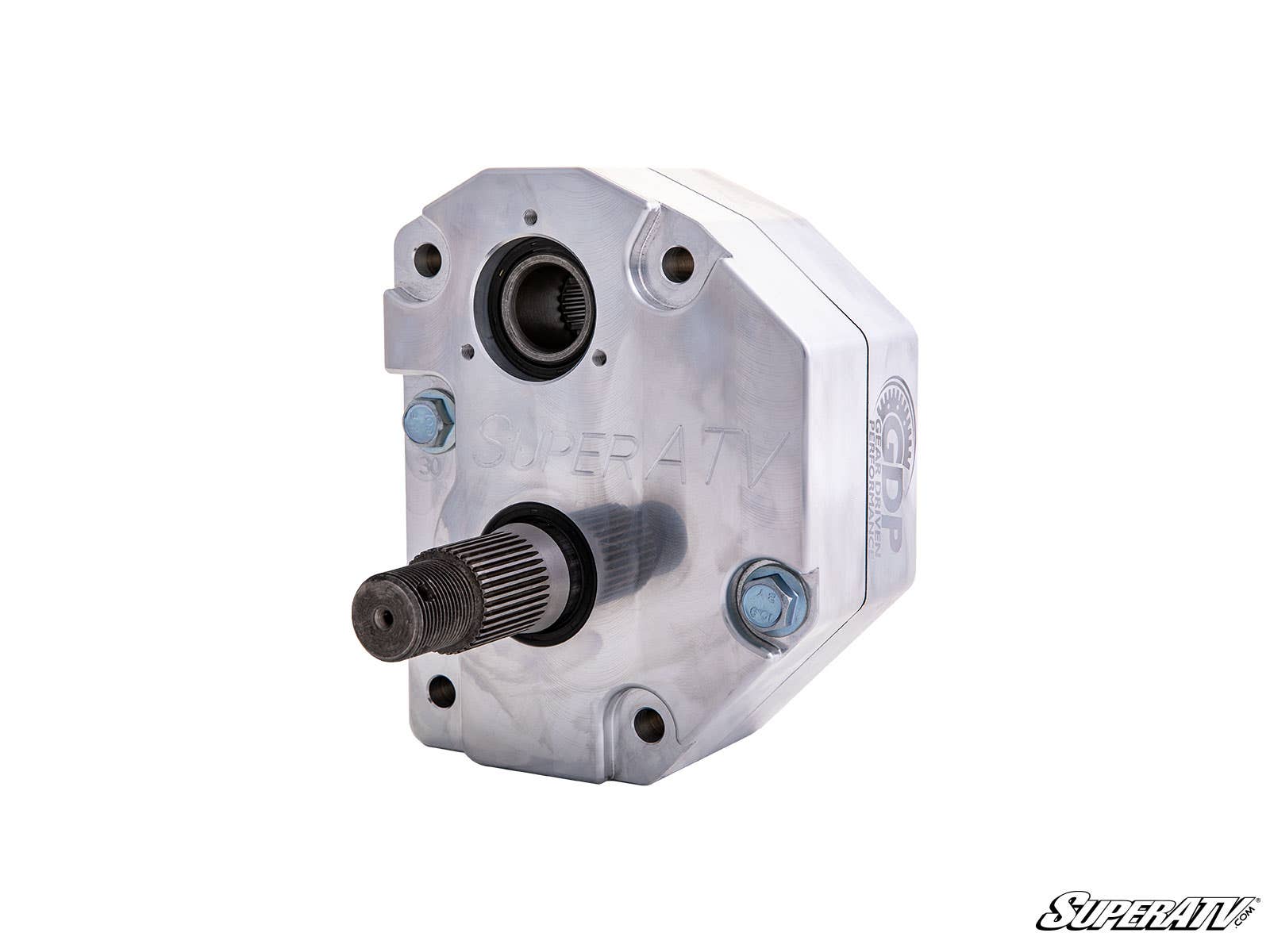

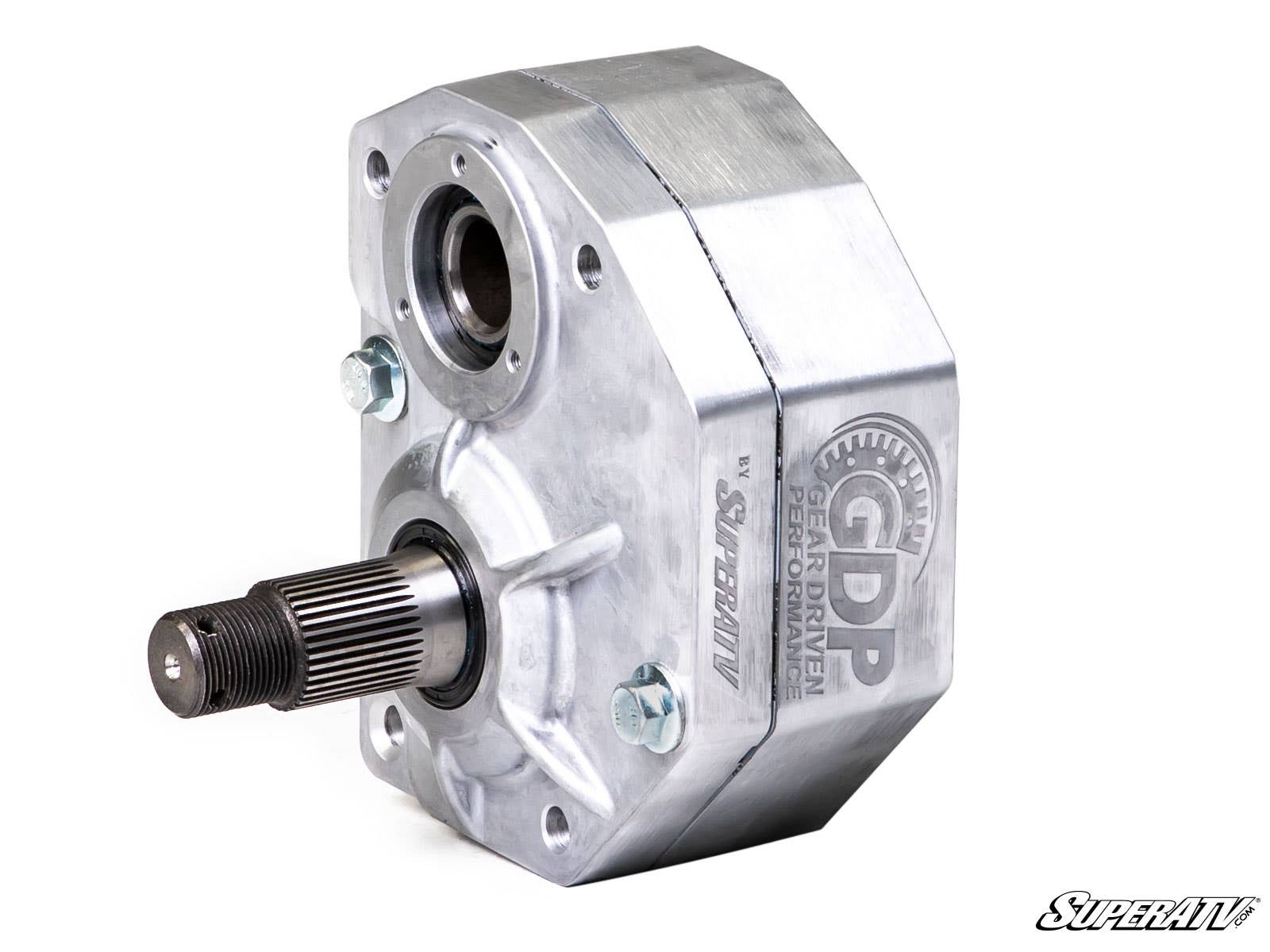

Trust us when we say we've done our research. We've seen what makes housings fail you know, those designs and materials that give off a what not to do" vibe. And we do the opposite of that. Our housings are stronger, smarter, and more dependable by design. Whether you go with cast or our USA-made and CNC-machined 6061 billet aluminum, you're getting portal housings that offer unmatched strength and reliability.

• Our housings are reinforced in all the right places
• They're built with better oil flow and gearing forces in mind
• There are no gimmicks and no vents because vents do more harm than good we know because we tested them

Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

Top-Rated Customer Service
Still need a little help getting exactly what you need We've got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

Polaris RZR 800 Portal Gear Reduction Recommendations
Tire Size	Required Suspension Setup with 4" Portals	Recommended 4" Portal Gear Reduction
Up to 26"	Stock	15%
Up to 26"	1.5-3" Lift Kit	15%
27" to 28"	5" Lift Kit	15%
29"	1.5" Forward Front A-Arms	15%
29"	1.5" Forward Front A-Arms and 1.5-3" Lift Kit	15%
30" to 31"	1.5" Forward Front A-Arms and 5" Lift Kit	15%
32"	6" Lift Kit	30%
Gear reductions listed are general guidelines to maintain factory top speed. Installing a larger than recommended gear reduction will result in extra torque and lower top speed. Give us a call for more information.

Patent # 11,299,042
