Super ATV POLARIS RZR REPLACEMENT AXLE BOOT—RHINO BRAND

Replace Your Worn-Out Boot

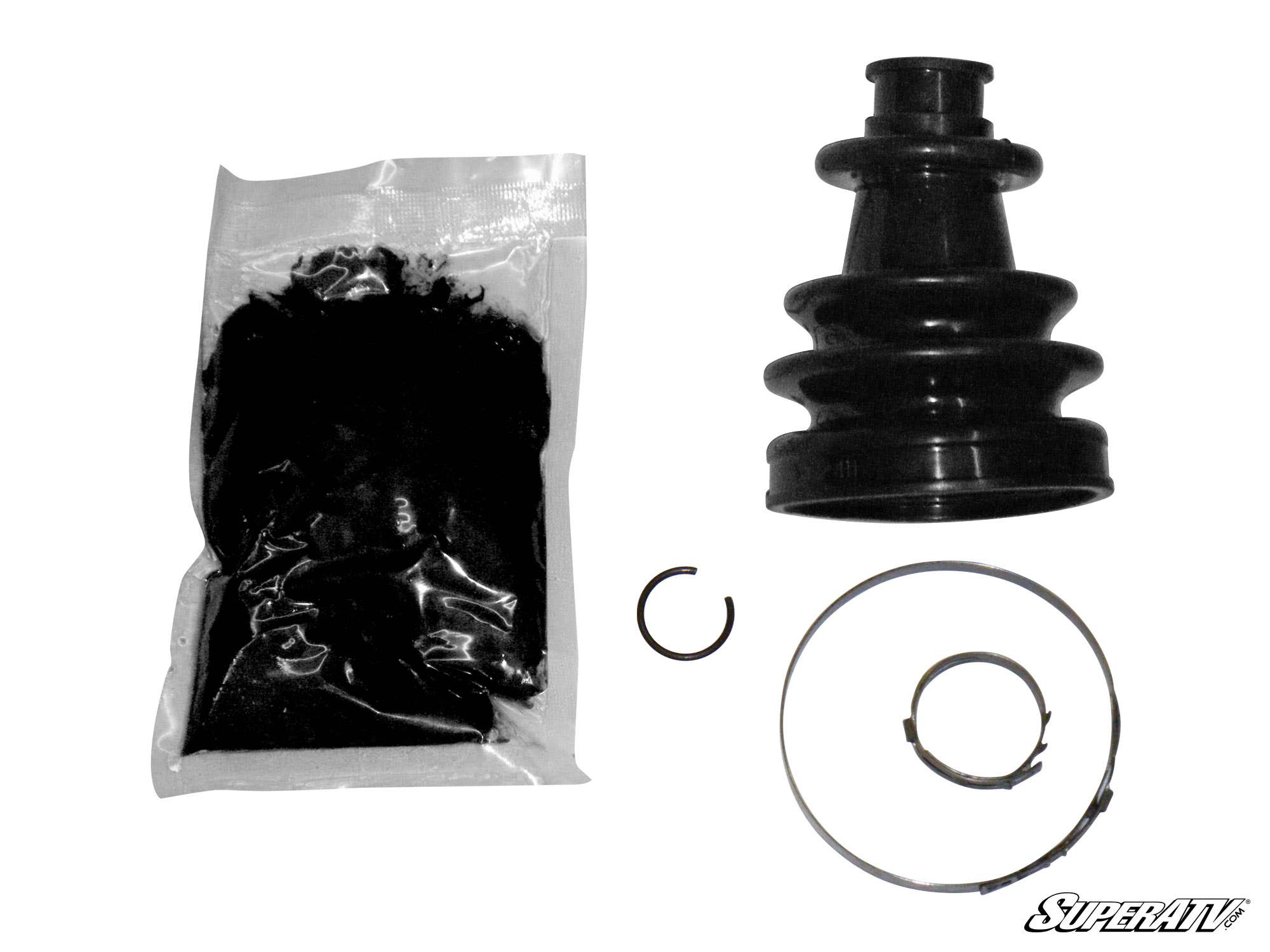

If your boot tears, axle failure won’t be far behind. That’s why it’s important to always have an extra axle boot kit on hand. Get this Replacement Axle Boot from SuperATV to keep your Rhino Brand Axles running like new. The replacement boot is made from your choice of high-strength TPEE or rubber, and the kit also comes with a clip, bands, and grease. It’s everything you need to keep your Polaris side-by-side on the trails and out of the garage.

NOTE: The SKU number associated with your axle can be found on the shaft. “Inner” means the end closest to the center of the machine. “Outer” means the end closest to the wheel.

Rhino Brand Axles	Inner CV Boot Kit	Outer CV Boot Kit
1-1-F-0-DT	BK-001	BK-002
1-1-F-LT5-DT	BK-001	BK-002
1-1-F-LT7-DT	BK-001	BK-002
1-1-F-LT8-DT	BK-001	BK-002
1-1-R-0-DT	BK-002	BK-002
1-1-R-LT5-DT	BK-002	BK-002
1-1-R-LT6-DT	BK-002	BK-002
1-2-F-LT6-BT	BK-001	BK-002
1-2-R-09-BT	BK-002	BK-002
1-2-R-LT6-BT	BK-002	BK-002
1-21-R-BT	BK-002	BK-002
1-21-R-LT6-BT	BK-002	BK-002
1-33-F-3-BT	BK-001	BK-002
1-33-F-LT3-DT	BK-001	BK-002
1-33-F-LT4-DT	BK-001	BK-002
1-33-R-0-DT	BK-002	BK-002
1-33-R-3-BT	BK-002	BK-002
1-33-R-LT3-DT	BK-002	BK-002
1-33-R-LT4-DT	BK-002	BK-002
1-33-R-LT5-DT	BK-002	BK-002
1-41-F-0-DT	N/A	BK-002
1-41-R-0-DT	BK-002	BK-002
1-44-F-0-DT	BK-001	BK-002
1-44-F-LT3-DT	BK-001	BK-002
1-44-F-LT4-DT	BK-001	BK-002
1-44-F-LT5-DT	BK-001	BK-002
1-44-R-0-DT	N/A	BK-002
1-44-R-LT3-DT	BK-002	BK-002
1-44-R-LT4-DT	BK-002	BK-002
1-44-R-LT5-DT	BK-002	BK-002
1-46-F-0-DT	BK-001	BK-002
1-47-F-0-DT	N/A	BK-002
1-47-R-0-DT	BK-002	BK-002
1-48-F-0-DT	N/A	BK-002
1-48-R-0-DT	N/A	BK-002
1-5-F-05-DT	BK-002	BK-002
1AX01-004F0	BK00-002	BK00-001
1AX-1-86-F-0-DT	BK00-001	BK00-003
1AX-1-86-R-0-DT	BK00-001	BK00-003
