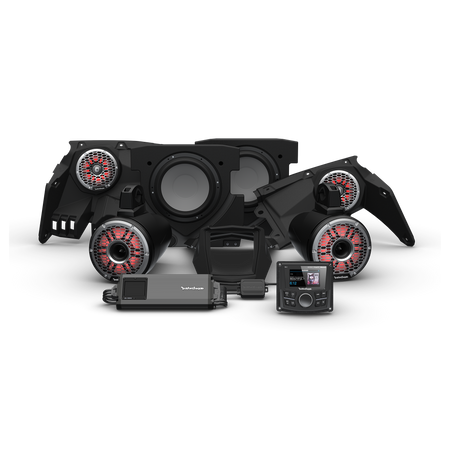

Rockford Fosgate Stage 6 Audio System for Can-Am X3 (Gen 3) – X317-STG6

Name: Rockford Fosgate Stage 6 Audio System for Can-Am X3 (Gen 3) – X317-STG6
Brand: Rockford Fosgate
SKU: X317-STG6
Price: 4399.99 USD
Availability: InStock

$4,399.99 USD

SKU: X317-STG6

The loudest, most complete UTV sound system Rockford has ever created.The Stage 6 Gen 3 kit is purpose-built for Can-Am Maverick X3 owners who want it all—volume, clarity, and bass... Read More

Quantity:

Rockford Fosgate Stage 6 Audio System for Can-Am X3 (Gen 3) – X317-STG6

$4,399.99 USD

View details

Description

Price Match Guarantee!

The loudest, most complete UTV sound system Rockford has ever created.
The Stage 6 Gen 3 kit is purpose-built for Can-Am Maverick X3 owners who want it all—volume, clarity, and bass that hits harder than the trail. This kit is a full plug-and-play solution with everything pre-tuned and ready to go.

🔊 System Highlights

400W RMS Power – Crystal clear, trail-dominating sound
PMX-2 Digital Media Receiver – Waterproof, 2.7" display with Bluetooth®, AUX, and USB
(4) M1 6.5" Color Optix™ Speakers – RGB LED lit, all-weather speakers with full-range clarity
(2) M1 10" Color Optix™ Subwoofers – Deep bass with multicolor LED backlighting
M5 800X4 & M5 1000X1 Amplifiers – Class D marine-grade amps with preset tuning
Rear Camera Input & RCA Outputs – Expand your setup and ride with visibility

🔧 Fitment & Features

Fits 2017+ Can-Am Maverick X3 models
100% plug-and-play installation—no cutting or rewiring
Includes Rockford’s PMX-RGB controller for full lighting control via app
Built for rugged off-road environments (IPX6/IPX7 rated)
Backed by Rockford Fosgate’s legendary quality and warranty

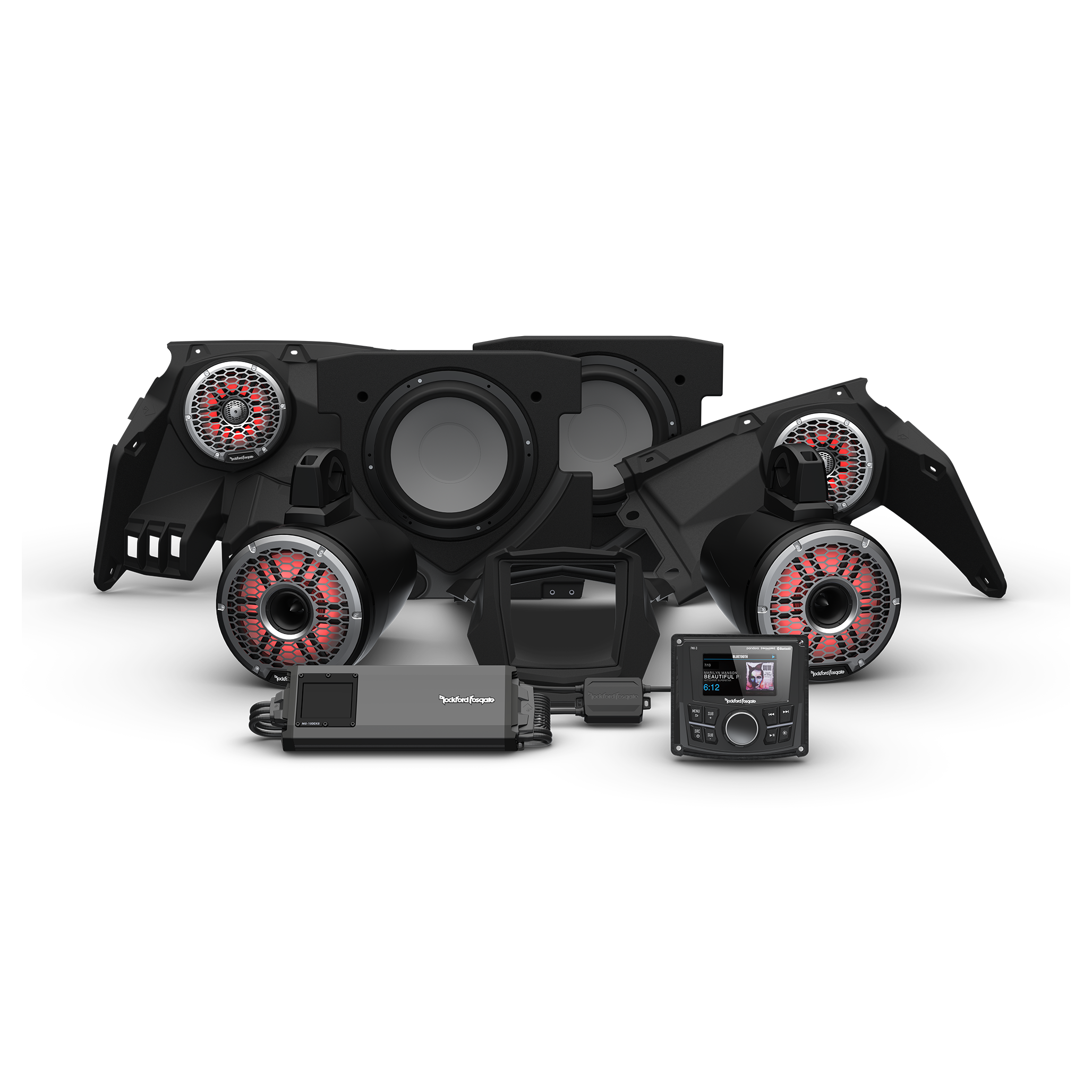

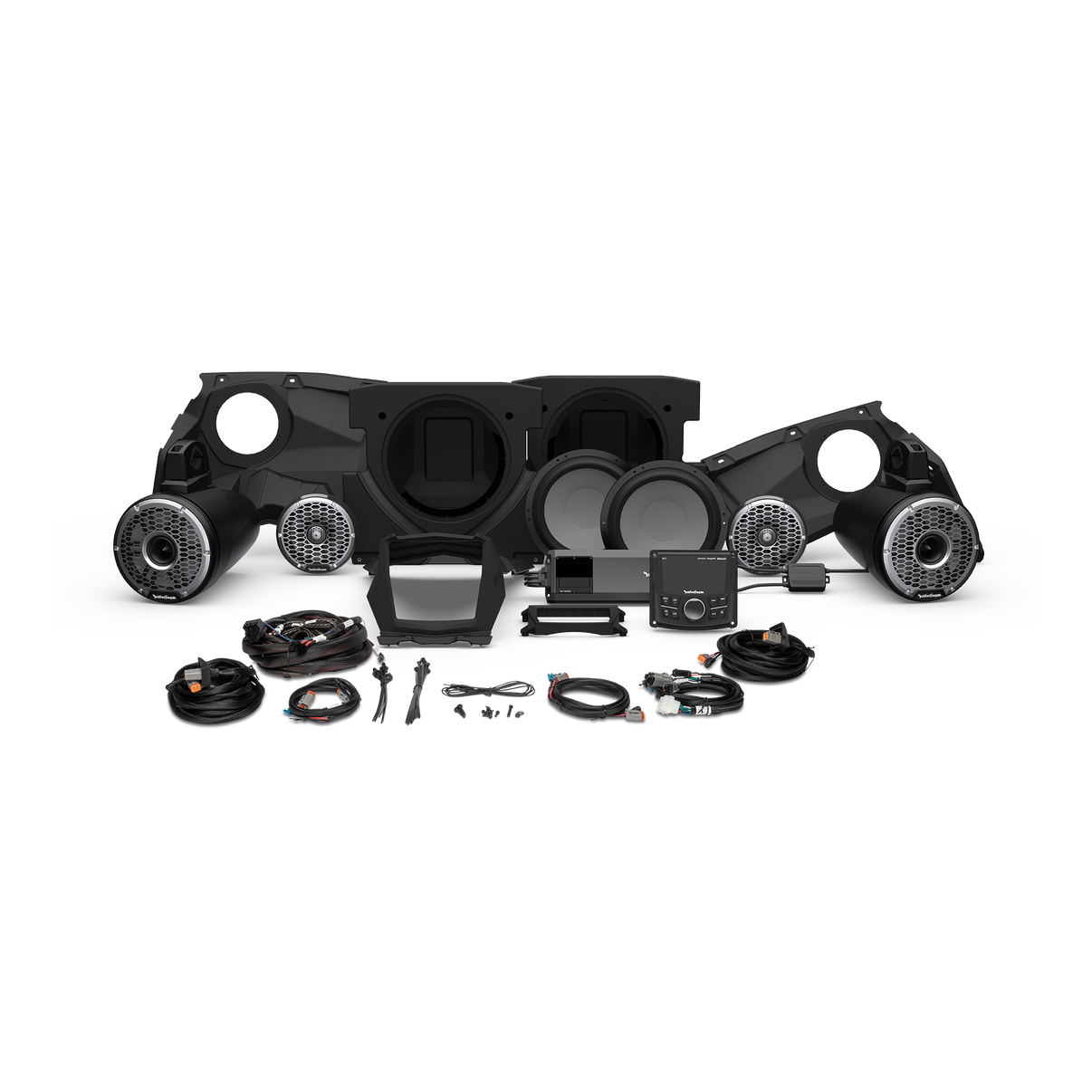

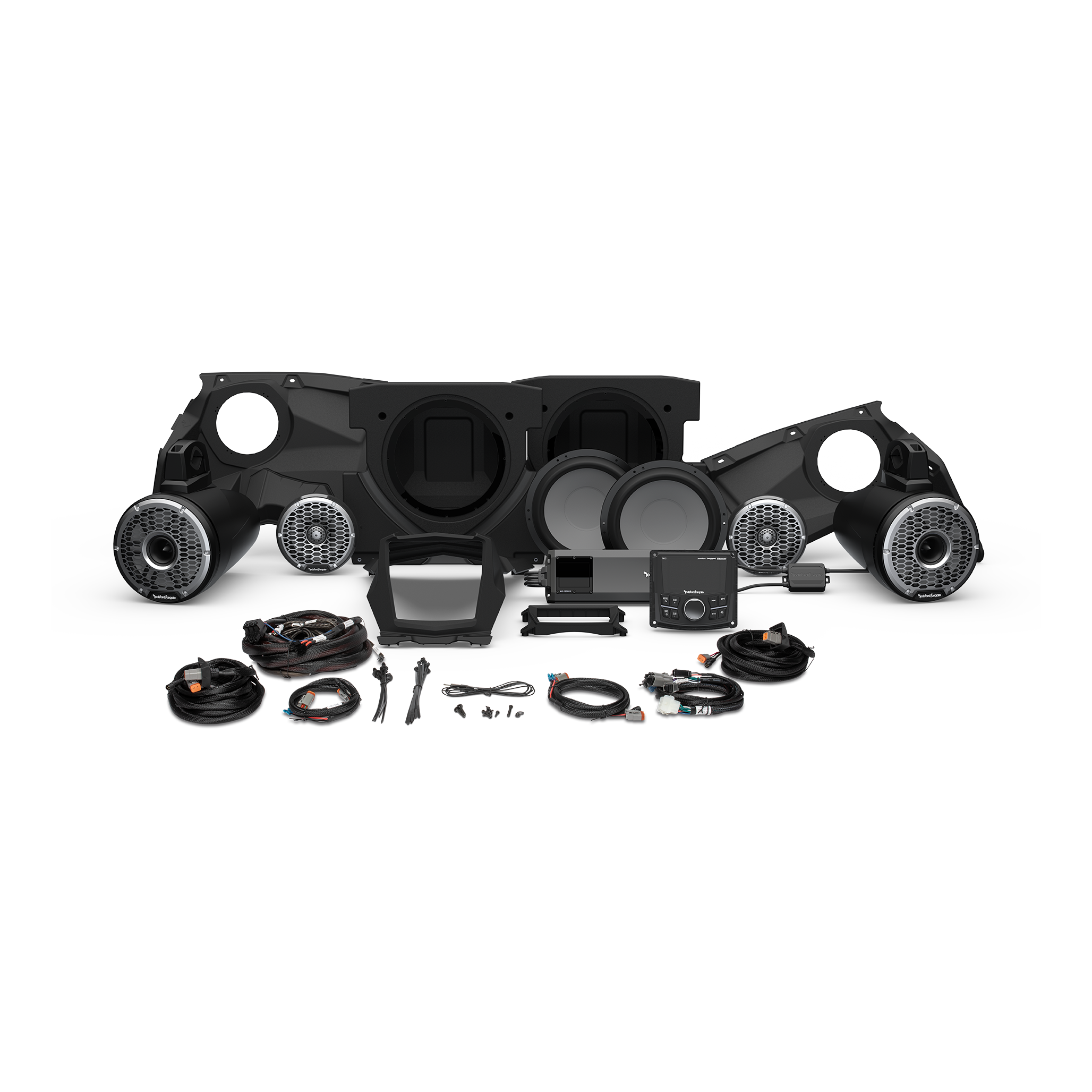

📦 What’s in the Box

PMX-2 source unit + X3 dash kit
(4) M1-65B RGB 6.5” speakers
(2) M1D2-10B RGB 10” subwoofers
(2) M5 amplifiers + full mounting hardware
Factory-fit harnesses, speaker enclosures, and install guides

Experience premium sound the way it was meant to be heard—on the trail, wide open.
Stage 6 is the ULTIMATE audio upgrade for your Can-Am X3.

Videos

New Audio Kits

Epic Elevated Performance! Introducing all new audio kits for select Polaris® RZR® and Can-Am® X3 models.

Can-Am X3 Product Overview

Check out the all new Rockford Fosgate Color Optix™ Audio Kits for select Can-Am® MAVERICK X3 models. This product overview will help you understand the difference between each stage kit. Which kit is the best fit for you?!

Color Optix™ Controller

The PMX-RGB Color Optix™ controller provides LED lighting control for your Can-Am Color Optix™ audio system. Pair this with our RF Connect™ smartphone app and give your system infinite control by customizing the color and lighting effects of your speakers.

X317-STG6 Install Tutorial

The 3rd generation installation tutorial on the Rockford Fosgate X317-STG6 motorsport audio installation kit for select 2017+ Can-Am® MAVERICK X3 models. For kit details and compatibility, please see below details.

${{ product_video.title }}$

Technologies

Element Ready™ | Motorsports

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration. Learn more

Element Ready™ | Motorsports

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects. Learn more

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects.

Color Optix™ Control

Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play ... Learn more

Color Optix™ Control

Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (sold separately.)

Specifications

Speaker Qty

Amplifier Type

External

Total Power

1,500 Watts

Mounting Hardware

Yes

Grille/Trim Ring Included

Yes

Included In The Box

(1 ea) PMX-3
(1 ea) X317-DK
(1 pr) X317-FSE
(1 pr) M2-65B
(1 ea) M5-1500X5
(2 ea) X317-M2FWE
(1 ea) X317-K4
(1 pr) M2WL-8HB
(1 ea) MX-RSW16
(1 ea) PMX-RGB

Shipping Weight

100 Lbs (45.35 Kg) Compatibility

LEGEND

YES Can-Am model IS compatible with kit	NO Can-Am model NOT compatible with kit	NOT AVAILABLE Can-Am model not produced this year

FITMENT

YES 2-Seat	YES 4-Seat	YES Hi/Low Seat Level	COMPATIBLE Front Window (remove to install speakers)	POSSIBLE Rear Window (mount cans externally)	POSSIBLE Snorkel (mount cans externally)

MAVERICK X3 (2-SEAT)

MODEL	2017	2018	2019	2020	2021	2022
X3 900 HO [64]	—	✔	—	—	—	—
X3 Turbo [64]	—	✔	✔	✔	—	—
X3 Turbo R [64]	✔	✔	✔	—	—	—
X3 ds Turbo [64]	—	—	—	—	✔	✔
X3 ds Turbo R [64]	—	—	—	✔	✔	—
X3 ds Turbo RR 64	—	—	—	—	—	✔
X3 rs Turbo R [72]	—	—	—	✔	—	—
X3 rs Turbo RR 72	—	—	—	—	—	✔
X3 X ds Turbo R [64]	✔	✔	✔	—	—	—
X3 X ds Turbo RR [64]	—	—	—	✔	✔	✔
X3 X mr Turbo [64] ¹	—	✔¹ ³	✔¹ ³	✔¹	✔¹	—
X3 X mr Turbo R [72] ¹	—	✔¹ ³	✔¹ ³	—	—	—
X3 X mr Turbo RR 64	—	—	—	—	—	✔
X3 X mr Turbo RR [72]	—	—	—	—	✔	✔
X3 X mr Turbo RR [72] ¹	—	—	—	✔¹	✔¹	—
X3 X rc Turbo [64]	—	✔	✔³	✔	✔	—
X3 X rc Turbo R [72] ²	—	X²	X²	—	—	—
X3 X rc Turbo RR 64	—	—	—	—	—	✔
X3 X rc Turbo RR [72] ²	—	—	—	X²	X²	X²
X3 X rs Turbo R [72]	✔	✔	✔³	—	—	—
X3 X rs Turbo RR [72]	—	—	—	✔	—	✔
X3 X rs Turbo RR Smart-Shox [72]	—	—	—	—	✔	✔

MAVERICK X3 MAX (4-SEAT)

MODEL	2017	2018	2019	2020	2021	2022
Maverick X3 MAX Turbo [64]	—	✔	✔	✔	—	—
Maverick X3 MAX Turbo R [64]	✔	✔	✔	—	—	—
Maverick X3 MAX ds Turbo [64]	—	—	—	—	✔	✔
Maverick X3 MAX ds Turbo R [64]	—	—	—	✔	✔	—
Maverick X3 MAX ds Turbo RR 64	—	—	—	—	—	✔
Maverick X3 MAX rs Turbo R [72]	—	—	—	✔	✔	—
Maverick X3 MAX rs Tubro RR 72	—	—	—	—	—	✔
Maverick X3 MAX X ds Turbo R [64]	✔	✔	✔³	—	—	—
Maverick X3 MAX X ds Turbo RR [64]	—	—	—	✔	✔	✔
Maverick X3 MAX X mr Turbo RR [72] ¹	—	—	—	✔¹	✔¹	✔¹
Maverick X3 MAX X rs Turbo R [72]	✔	✔	✔³	—	—	—
Maverick X3 MAX X rs Turbo RR [72]	—	—	—	✔	✔	✔
Maverick X3 MAX X rs Turbo RR Smart-Shox [72]	—	—	—	—	✔	✔

Charts contain newer naming convention — started in 2022 — featuring 64" and 72" width models. Older models denote [width] in name to clarify make/model/year progression.
1 Snorkel prevents stages with rear moto-cans from being installed inside roll-cage, must be installed outside roll-cage.
2 Intrusion Bar introduced in 2018, causes (FSE) front speaker clearance issue.
3 Smart-Lok™ introduced in 2018, requires 2nd (RFX317-FSE) or 3rd generation (X317-FSE) front speaker panels. Support
