Rockford Fosgate 6.5" Front Color Optix™ Speaker Panels with Smart-Lok: Select Can-Am X3 Models X317-FSE

Name: Rockford Fosgate 6.5" Front Color Optix™ Speaker Panels with Smart-Lok: Select Can-Am X3 Models X317-FSE
Brand: Rockford Fosgate
SKU: X317-FSE
Price: 309.99 USD
Availability: InStock

$309.99 USD

SKU: X317-FSE

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

View details

Description

Price Match Guarantee!

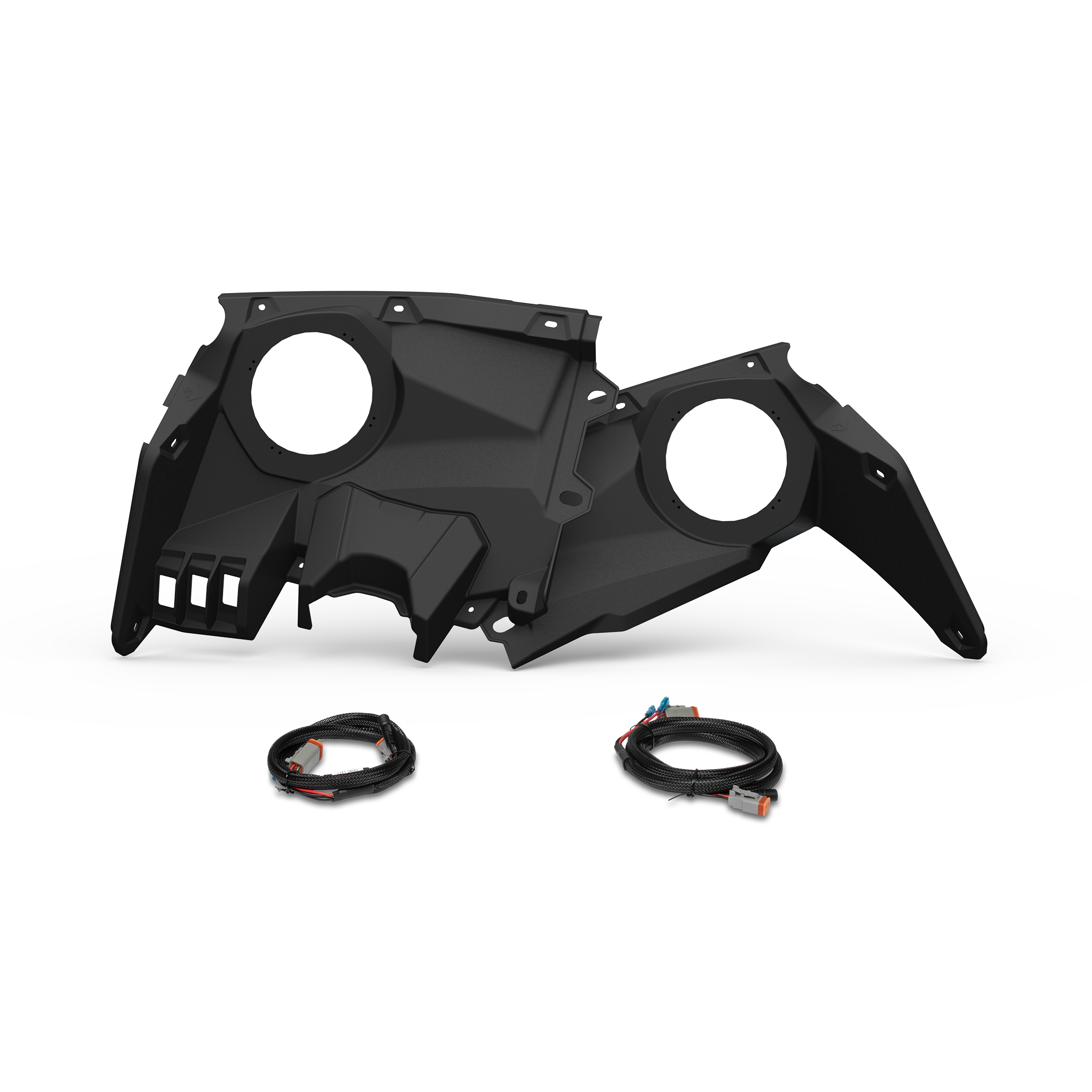

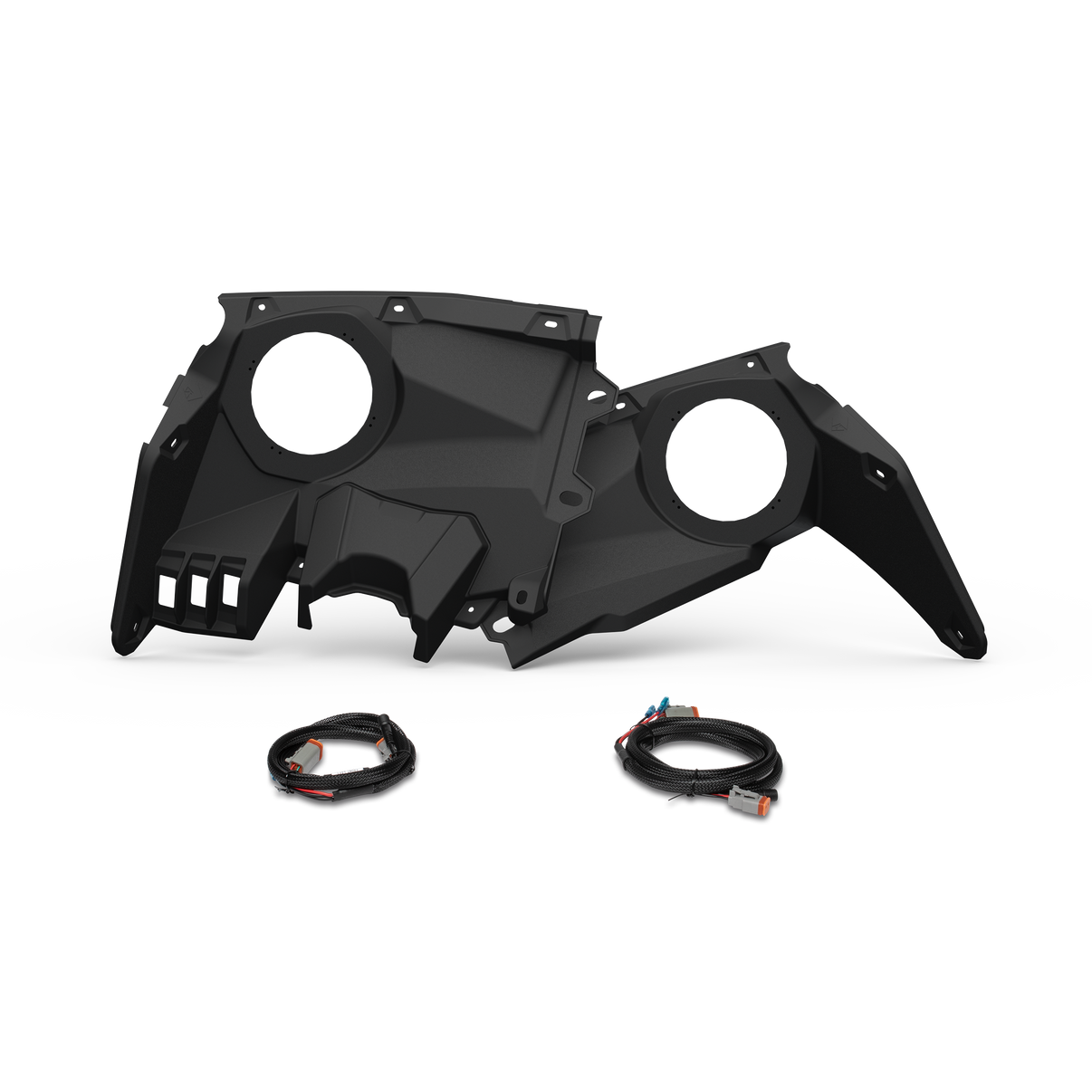

The new 3rd generation 6.5" front speaker enclosures are Color Optix™ Ready for systems utilizing M1 and M2 series speakers. The speaker panels are designed to directly fit select Maverick X3 models. Secures to existing factory mounting locations. No drilling required. Panels compatible with M0/M1/M2 6.5” model speakers. Kit includes built-in wiring harness and mounting hardware needed for installation. Refer to our COMPATIBILITY chart to verify fitment before purchasing. Please contact customer support for replacement parts for your audio kit.

Email Address

Must be purchased as a bundle. Choose an option below:

Bundle Total: ---

Option

Overview

This Rockford Fosgate audio kit is Color Optix™ enabled by featuring our Color Optix™ controller to allow color adjustment of front speakers. Audio system is 100% Element Ready™ solution and provides ability to take your off-road vehicle into any environment. Panels are plug and play ready, does not require any cutting or drilling of vehicle, step by step install videos available.

FEATURES AT A GLANCE

Texture and color matched to vehicle interior

No drilling or cutting required

Injection molded Centrex plastic with integrated UV inhibitors

Compatible with Element Ready™ M0-65 and M0-65B model speakers
Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
Designed for use with Color Optix™ M1-65 and M1-65B model speakers
Designed for use with Color Optix™ M2-65 and M2-65B model speakers
M0/M1/M2 speakers secure to #3 mounting holes
1 Year Warranty

Technologies

Element Ready™ | Motorsports

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration. Learn more

Element Ready™ | Motorsports

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects. Learn more

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects.

Color Optix™ Control

Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play ... Learn more

Color Optix™ Control

Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (sold separately.)

Specifications

Shipping Weight

4 Lbs (1.81 Kg)

Included In The Box

(2) FSE left and right speaker pods with harness
(2) mounting hardware
Compatibility

LEGEND

YES Can-Am model IS compatible with kit	NO Can-Am model NOT compatible with kit	NOT AVAILABLE Can-Am model not produced this year

FITMENT

YES 2-Seat	YES 4-Seat	YES Hi/Low Seat Level	COMPATIBLE Front Window (remove to install speakers)	POSSIBLE Rear Window (mount cans externally)	POSSIBLE Snorkel (mount cans externally)

MAVERICK X3 (2-SEAT)

MODEL	2017	2018	2019	2020	2021	2022
X3 900 HO [64]	—	✔	—	—	—	—
X3 Turbo [64]	—	✔	✔	✔	—	—
X3 Turbo R [64]	✔	✔	✔	—	—	—
X3 ds Turbo [64]	—	—	—	—	✔	✔
X3 ds Turbo R [64]	—	—	—	✔	✔	—
X3 ds Turbo RR 64	—	—	—	—	—	✔
X3 rs Turbo R [72]	—	—	—	✔	—	—
X3 rs Turbo RR 72	—	—	—	—	—	✔
X3 X ds Turbo R [64]	✔	✔	✔	—	—	—
X3 X ds Turbo RR [64]	—	—	—	✔	✔	✔
X3 X mr Turbo [64] ¹	—	✔¹ ³	✔¹ ³	✔¹	✔¹	—
X3 X mr Turbo R [72] ¹	—	✔¹ ³	✔¹ ³	—	—	—
X3 X mr Turbo RR 64	—	—	—	—	—	✔
X3 X mr Turbo RR [72]	—	—	—	—	✔	✔
X3 X mr Turbo RR [72] ¹	—	—	—	✔¹	✔¹	—
X3 X rc Turbo [64]	—	✔	✔³	✔	✔	—
X3 X rc Turbo R [72] ²	—	X²	X²	—	—	—
X3 X rc Turbo RR 64	—	—	—	—	—	✔
X3 X rc Turbo RR [72] ²	—	—	—	X²	X²	X²
X3 X rs Turbo R [72]	✔	✔	✔³	—	—	—
X3 X rs Turbo RR [72]	—	—	—	✔	—	✔
X3 X rs Turbo RR Smart-Shox [72]	—	—	—	—	✔	✔

MAVERICK X3 MAX (4-SEAT)

MODEL	2017	2018	2019	2020	2021	2022
Maverick X3 MAX Turbo [64]	—	✔	✔	✔	—	—
Maverick X3 MAX Turbo R [64]	✔	✔	✔	—	—	—
Maverick X3 MAX ds Turbo [64]	—	—	—	—	✔	✔
Maverick X3 MAX ds Turbo R [64]	—	—	—	✔	✔	—
Maverick X3 MAX ds Turbo RR 64	—	—	—	—	—	✔
Maverick X3 MAX rs Turbo R [72]	—	—	—	✔	✔	—
Maverick X3 MAX rs Tubro RR 72	—	—	—	—	—	✔
Maverick X3 MAX X ds Turbo R [64]	✔	✔	✔³	—	—	—
Maverick X3 MAX X ds Turbo RR [64]	—	—	—	✔	✔	✔
Maverick X3 MAX X mr Turbo RR [72] ¹	—	—	—	✔¹	✔¹	✔¹
Maverick X3 MAX X rs Turbo R [72]	✔	✔	✔³	—	—	—
Maverick X3 MAX X rs Turbo RR [72]	—	—	—	✔	✔	✔
Maverick X3 MAX X rs Turbo RR Smart-Shox [72]	—	—	—	—	✔	✔

Charts contain newer naming convention — started in 2022 — featuring 64" and 72" width models. Older models denote [width] in name to clarify make/model/year progression.
1 Snorkel prevents stages with rear moto-cans from being installed inside roll-cage, must be installed outside roll-cage.
2 Intrusion Bar introduced in 2018, causes (FSE) front speaker clearance issue.
3 Smart-Lok™ introduced in 2018, requires 2nd (RFX317-FSE) or 3rd generation (X317-FSE) front speaker panels. Support

Knowledge Base Articles

No Knowledge Base articles

Show all Knowledge Base topics

Ask Our Experts

Chat Currently Unavailable
Email Us
Return Authorization

Contact the Authorized Rockford Fosgate Dealer you purchased this product from. If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.
- View Process
- Submit Warranty Claim
Return Authorization Process

Diagnose First

Prior to requesting an RA, try to diagnose the failure. Many products we receive are sent back with No Trouble Found, usually due to incorrect installation. Use our RFTECH:Knowledge Base for troubleshooting assistance.

Contact Customer Support

Please call us during normal business hours at 1-800-669-9899 (option #1) and be prepared with the following information:

First and Last Name with complete Shipping Address

Product Name (T0D415)

Serial Number (12 or 13 digit number)

Failure Diagnosis (no output, no power LED, etc.)

Scanned copy of Original Receipt emailed to [email protected] (dealer name, purchase date, and item purchased must be legible)

Credit/Debit Card (if paying for out-of-warranty claims)

No money orders or checks.

Shipping Instructions

When shipping your product, your package MUST have the following information:

RA# Printed Outside of Box (as large as possible)

Copy of Original Receipt

Shipping Address

Ship your product (UPS or FedEx preferred) to the following:

Rockford/ AJR International
300 Regency DR
Glendale Heights, IL 60139
RA#:_______________________
