06740 PSL MNT-Can-Am Defender HD11 (Swift-Latch)

Can-Am Defender HD11 Swift-Latch™ Plow Mount

This Can-Am Defender HD11 plow mount is one of two options for mounting a KFI plow system to your HD11 Defender. This version installs directly onto your machine and remains in place year-round while still providing full ground clearance when the plow is removed.

This mount features two connection options:

1. A built-in Swift-Latch™ bar for use with our KFI Swift-Latch™ system.

2. The 2-Piece KFI Seasonal pin-style plow attachment.

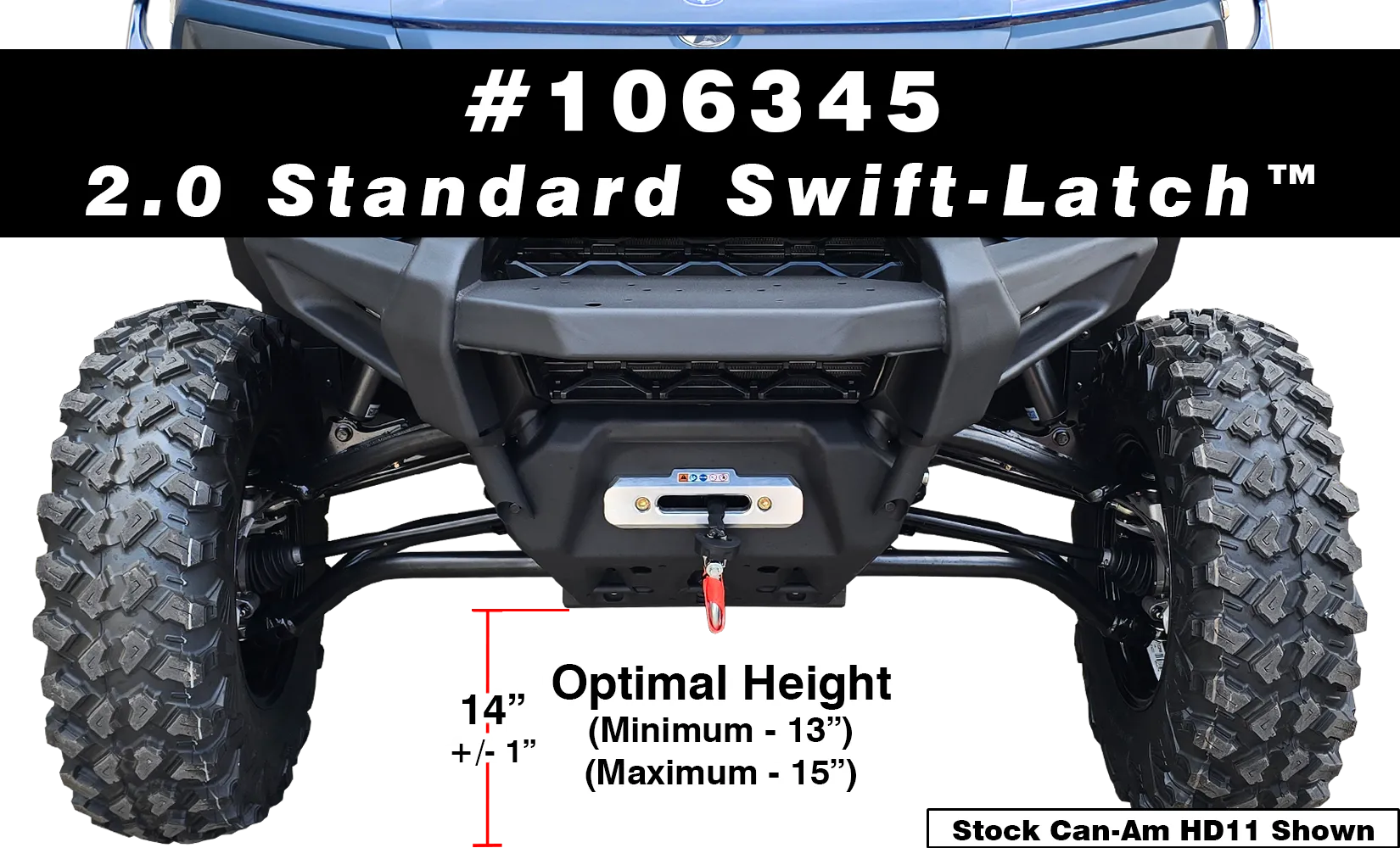

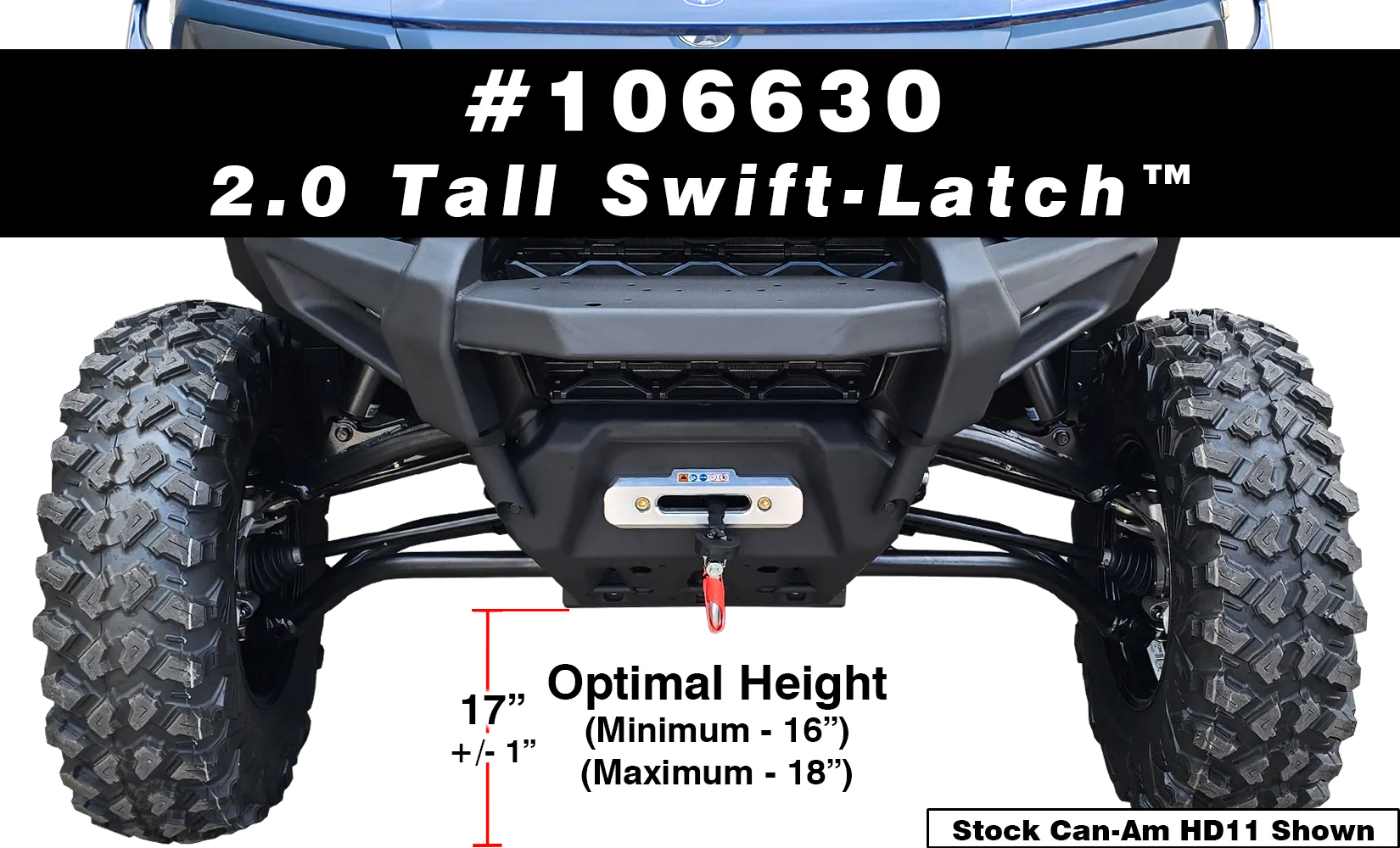

If you plan to use the Swift-Latch™ bar, you’ll also need to purchase one of our KFI Swift-Latch™ Systems that bolt to your KFI Push Tubes (#106300). We currently offer Standard and Tall Swift-Latch™ Systems depending on your machine’s final height after accessories such as lift kits, larger tires, or tracks are installed.

If you prefer to use the traditional pin-style attachments, you’ll need a 3"–4" leveling kit for proper operation with a stock HD11 Defender, or a 5"–6" leveling kit if your machine is equipped with tracks or oversized tires.

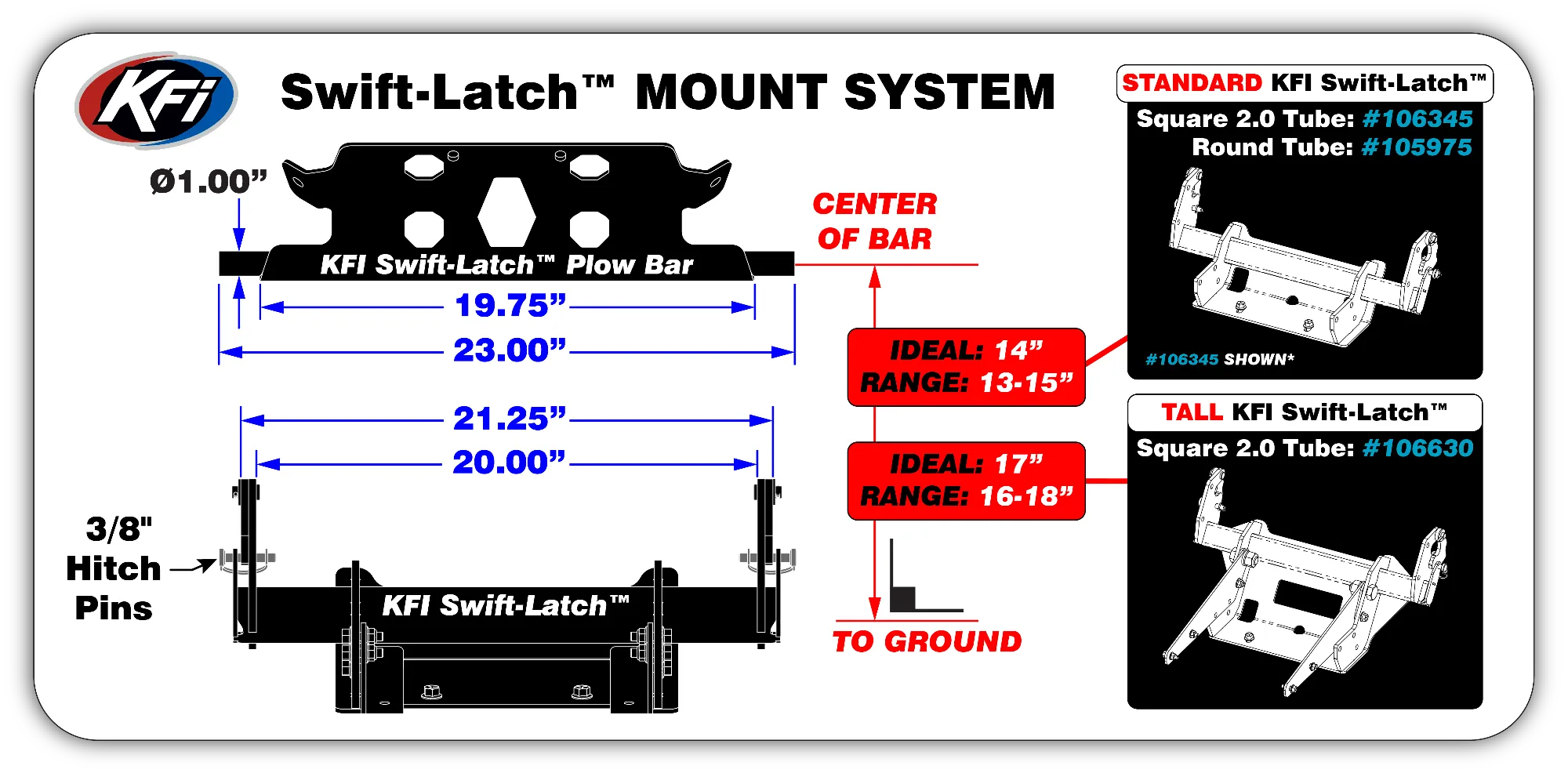

Always verify your Swift-Latch™ bar height before ordering to ensure you select the correct leveling kit or Swift-Latch™ System for your setup.

👉 If you’d like to see our traditional two-piece plow mount option for the Can-Am Defender HD11, click here.

** KFI Plows are currently ONLY available through your local or Online authorized KFI Products Dealers **

 UTV Front Lower Plow Mount Compatibility:

The mount is compatible with the following UTV Tube Systems:

• Newer Pro 2.0 UTV Tube System-Part #106300 (Square Tube Style)
  • Will require either a KFI-Swift-Latch™ system or Level Kit for the push Tubes. (see below)
• Older Style UTV Tube System(Discontinued)-Part #105635 (Round Tube Style)
  • Will require either a KFI-Swift-Latch™ system or Level Kit for the push Tubes. (see below)
• The NEW PRO-V Plow System (Square Tube Style)
  • Compatible parts: #106180-MP, #106180-AP or #106180-APH
  • Will require either a KFI Swift-Latch™ system or Level Kit for the push Tubes. (see below)

KFI Application Chart

NOTES:
I : Requires the purchase of a Swift-Latch or Leveling Kit (see below)


UTV Model Specific Plow Mount Specifications:

• 100% Made in the USA
• Front Lower Plow Mount System: Allows for easy attachment and removal of the plow.
• Two plow mounting options:
  • The traditional KFI pin-style plow attachment.
    • Uses Two Standard 5/8" Hitch Pins for Secure Connection (comes with push tubes)
  • A built-in Swift-Latch™ bar for use with our KFI Swift-Latch™ system.
• Plate Material: Constructed from 3/16" thick grade 50 steel for durability and strength.
• Plow Mounting Tabs: Made from 1/4" thick grade 50 steel to ensure a secure fit.
• Superior Finish Preparation: Unlike competitors, products undergo metal bead blasting before powder coating to provide the best possible finish.
• Powder Coated Black Textured: Ensures supreme durability and corrosion resistance.
• Installation: Comes with complete instructions for hassle-free installation.
• All Necessary Hardware Included: Provides all the mounting hardware needed for installation.
• Satisfaction Guaranteed

This mount offers a robust and durable option for UTV plowing needs, ensuring long-lasting performance and ease of use.
