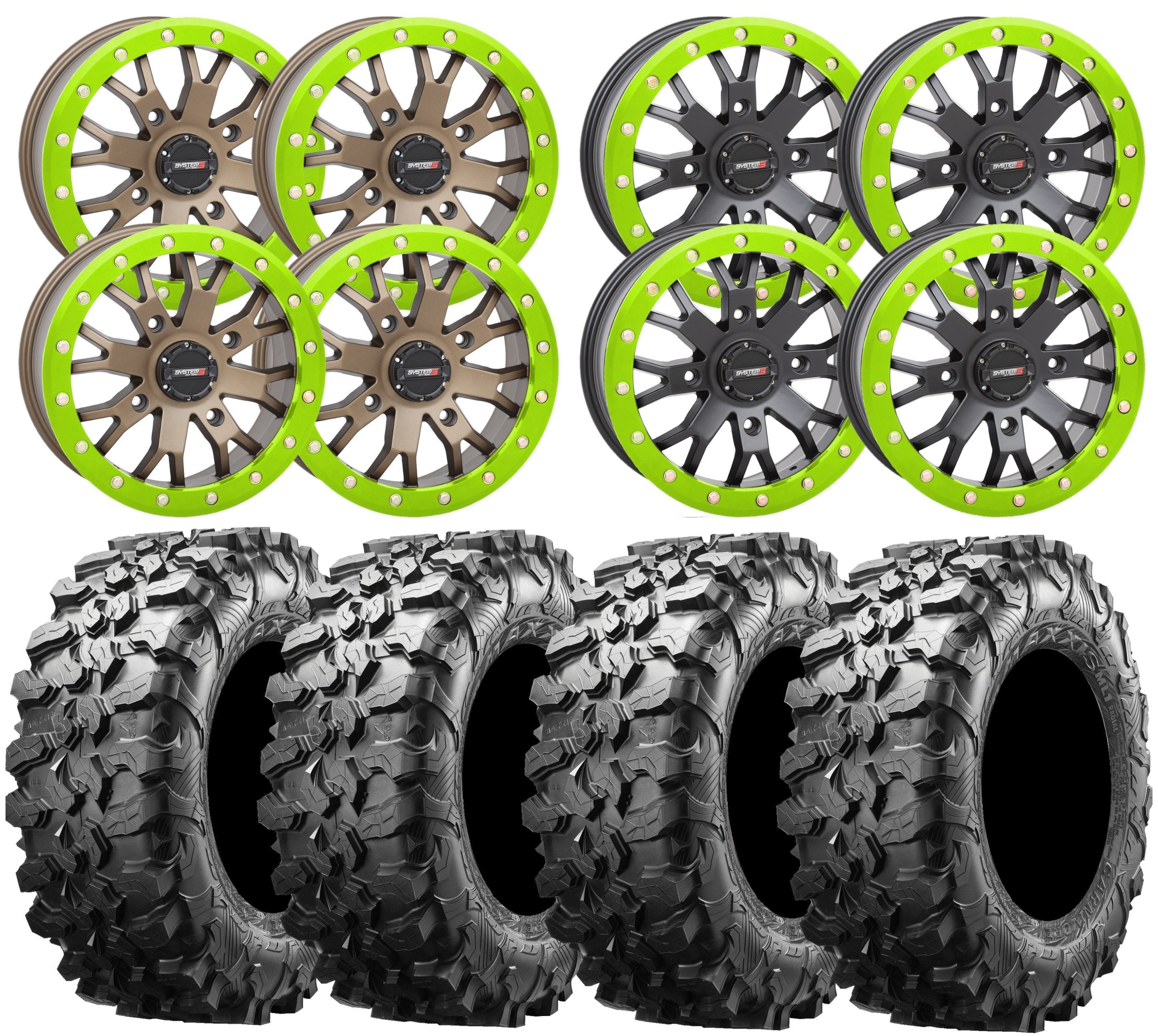

• System3 SB 4 and Maxxis Carnivore UTV Wheel and Tire Kit
System 3 + Maxxis

System 3 SB4 and Maxxis Carnivore UTV Wheel and Tire Kit w/ custom Lime Squeeze Rings | 4/137

$1,921.64 USD $1,981.08 USD
3% off
SKU: 14S3-3137/TM00105300
Kit Includes 4 wheels / 4 tires / mounting / choice of lug nut color and shipping System 3 SB-4 UTV Wheels Feature: Available in 14x7 & 15x7 sizesMatte Black... Read More

View Bolt Pattern Chart

×

Bolt Pattern Chart

Bolt Pattern Chart

WHEEL SIZE: MATTE BLACK 14X7 4/137 6+1
TIRE SIZE: 28X10-14

Pairs well with

System3 SB 4 and Maxxis Carnivore UTV Wheel and Tire Kit
$1,921.64 USD
MATTE BLACK 14X7 ...
View Financing Options
×

PlanetsXS is proud to offer flexible financing solutions through two trusted providers, making it easier for you to get the products you want today. Whether you're upgrading your gear or making a big purchase, our financing options help you manage your budget while still enjoying the best we have to offer.

We currently offer financing via

BreadPay and Shopify's ShopPay

View more details about our financing providers HERE

View details

Kit Includes 4 wheels / 4 tires / mounting / choice of lug nut color and shipping


System 3 SB-4 UTV Wheels Feature:

Available in 14x7 & 15x7 sizes
Matte Black or Bronze finish choices
10mm billet ring with 20 5/16-inch grade 8 bolts
Styled like the popular ST-3 simulated beadlock
1,200-pound load rating
Bolt-in center cap

SB-4 14-inch Beadlock Specifications

SIZE - BOLT PATTERN - OFFSET - FINISH - PART #

14x7 - 4/137 - 6+1 (+45mm) - Matte Black - 521730
14x7 - 4/137 - 4+3 (+15mm) - Matte Black - 521731

14x7 - 4/137 - 6+1 (+45mm) - Bronze - 521733
14x7 - 4/137 - 4+3 (+15mm) - Bronze - 521734

SB-4 15-inch Beadlock Specifications

SIZE - BOLT PATTERN - OFFSET - FINISH - PART #

15x7 - 4/137 - 6+1 (+45mm) - Matte Black - 521736
15x7 - 4/137 - 4+3 (+15mm) - Matte Black - 521737

15x7 - 4/137 - 6+1 (+45mm) - Bronze - 521739
15x7 - 4/137 - 4+3 (+15mm) - Bronze - 521740

The Carnivore from Maxxis Tires

The Carnivore is a true light truck-inspired tire, engineered for performance in extreme (west coast) terrains. With an 8-ply-rated radial carcass and a tread design that allows for ultimate control on and off-road, the Carnivore has the superb tread wear you expect from a Maxxis tire. This tire also features a specialized rubber compound for excellent traction on rocks, roots and desert terrains.

SPECIFICATIONS

Part Number Position Size Ply Rating Overall Diameter (in) Section Width (in) Tire Pressure/Load (psi/lbs) Rim Size (in) Tread Depth (in)
TM00928100 Front, Rear 28X10.00R14 8 28.7 9.4 18/480 14X7.0 28/32
TM00923100 Front, Rear 30X10.00R14 8 30.5 9.7 18/550 14X7.0 28/32
TM00975100 Front, Rear 32X10.00R14 8 32 10 18/615 14X7.0 28/32
TM00894100 Front, Rear 29X9.50R15 8 29.7 9.4 18/495 15X7.0 28/32
TM00970100 Front, Rear 32X10.00R15 8 32.3 10.3 18/617 15X7.0 28/32

3-5 business days

Delivered pre-mounted and ready to install with basic tools
