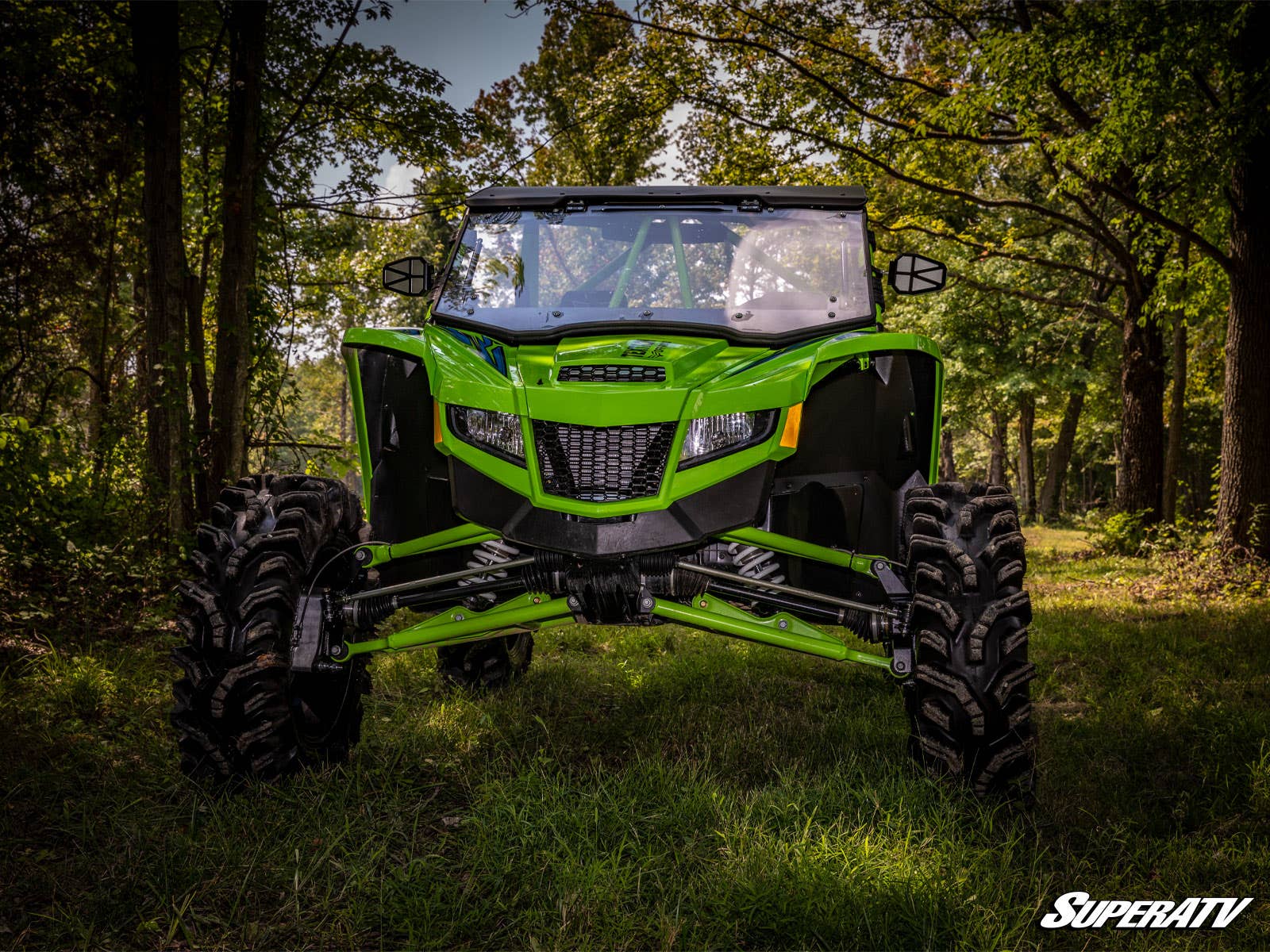

Super ATV Textron Wildcat XX 4" Portal Gear Lift

Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing
Move your mouse over image or click to enlarge
Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Billet Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Super ATV Textron Wildcat XX 4" Portal Gear Lift Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Super ATV Textron Wildcat XX 4" Portal Gear Lift Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Super ATV Textron Wildcat XX 4" Portal Gear Lift Textron Wildcat XX 4" Portal Gear Lift with 15% Gear Reduction - Cast Housing Super ATV Textron Wildcat XX 4" Portal Gear Lift
Product Description
3,249.95
Pay Over Time
Shop More From This Brand : Super ATV

Details

Gen 3 Portals are Geared for All
SuperATV’s GDP 4” Portal Gear Lift for the Textron Wildcat XX is Geared for All. What do we mean by that? Our 4” portal lift is available with 15% or 30% gear reductions and cast or billet housings. That means you can optimize your ride to fit your style.

Perfect for Mud
Get a 30% gear reduction and start flingin’ mud. With a massive boost to torque, you can turn bigger tires that chew through the thickest bounty holes. When you gear down and go big, your machine will turn into a mud monster. Plus, with a 30% gear reduction, you still have speed for the road and trails between mud holes.

Perfect for Rocks
Put 4” portals and a 30% gear reduction on your machine and get the torque you need crawl over rocks like they’re not even there. More torque plus bigger clearance makes your machine more capable in the rock garden. These portals are built for boulders.

Perfect for Trails
Get 4” portals and a 15% gear reduction on your Textron Wildcat XX and take on the trail less traveled. You’ll keep that high speed and leave your friends in the dust when hit a hill or dirt shelf. It’ll bring out your UTV’s true power.

Learn more about how tire size and gear reduction can unleash your machine’s potential.

Better Gears
Our gears are precision ground and made with 9310 billet steel alloy for high strength and high speed. That means they’re cool and quiet even when you’re hammering down the throttle on the road, and they have strength to withstand every ride.

Stronger Housings by Design
No portals in the world have housings stronger than what you’ll find on GDP portal gear lifts. We’ve put in years of research and testing to bring you housings that are strong enough to keep up with even the most rugged off-road lifestyle. So whether you go with cast or our USA-made 6061 billet aluminum with a sleek CNC-machined finish, just know you’re getting portal housings that truly are second to none.
  • Our housings are reinforced in all the right places
  • They’re built with better oil flow and gearing forces in mind
  • There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets and Seals
Whether you go with cast or billet, both housings use:
  • Advanced Thermo-Tork® gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
  • A sealed input gear and double-lipped output seal
  • 100% sealing coverage throughout so you can forget about oil leaks
Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

Textron Wildcat XX Portal Gear Reduction Recommendations
Max Tire Size Required Suspension Setup with 4" Portals Recommended 4" Portal Gear Reduction
Up to 35" Stock 15%
Up to 35" 2" lift kit 15%
Gear reductions listed are general guidelines to maximize torque and maintain factory top speed. A larger than recommended gear reduction will result in more torque and lower top speed. Give us a call for more information.


California Proposition 65 Warning
WARNING: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.

Fitment

  • Textron Wildcat XX : 2018+
  • Tracker XTR1000 : 2020+

Features

  • Available with billet or cast aluminum housing
  • Cool, quiet, precision ground gears made from 9310 alloy billet steel
  • 1.5 in. diameter 4340 hardened steel drive shaft
  • No leak bearings and seals
  • Universal hub fits all major bolt patterns
  • Comes complete with all hardware, backing plates, brake lines, and instructions
Wheel Requirements:
  • 14” or larger wheel required
  • Cannot exceed 5” backspacing
  • Not compatible with dual beadlock wheels
