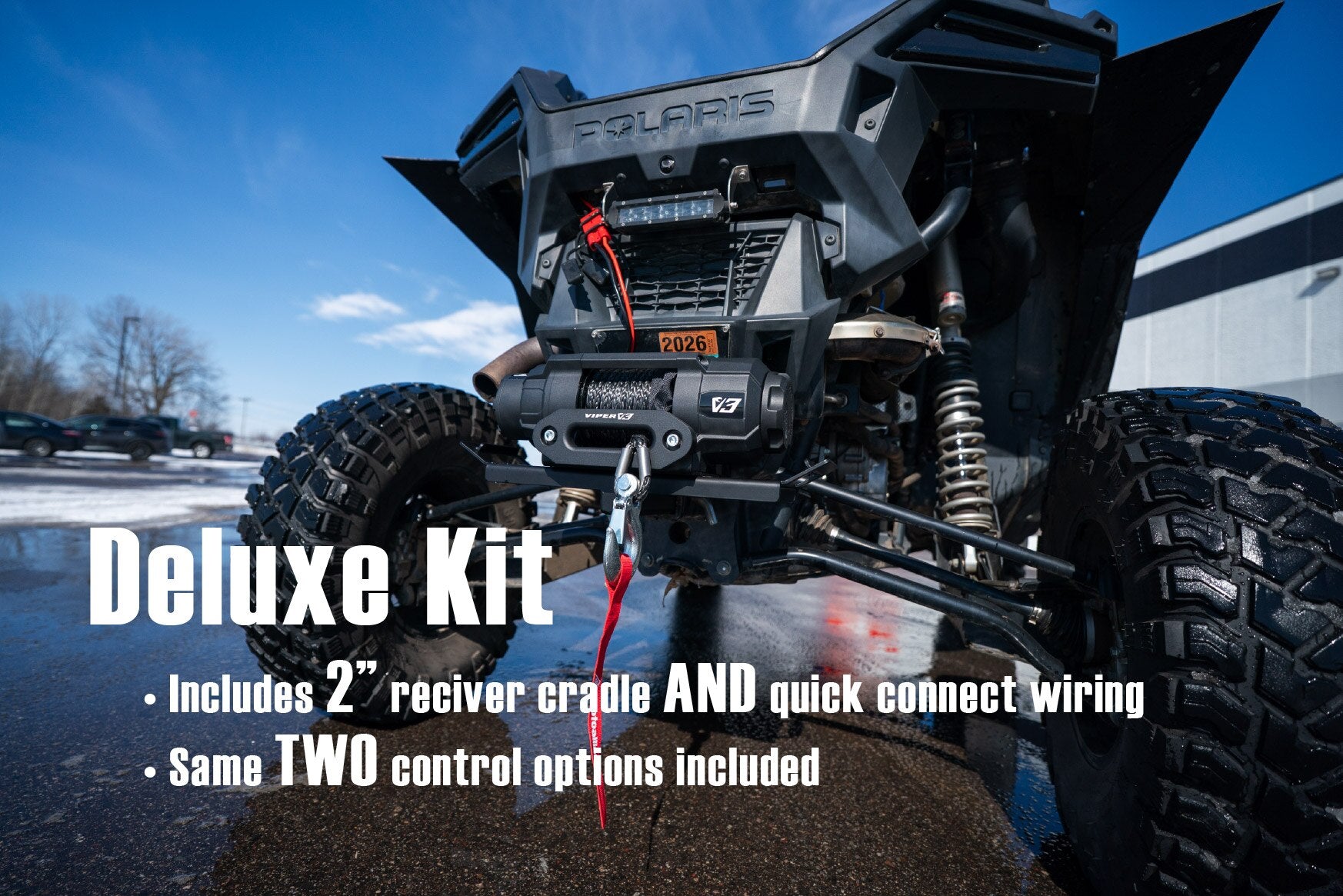

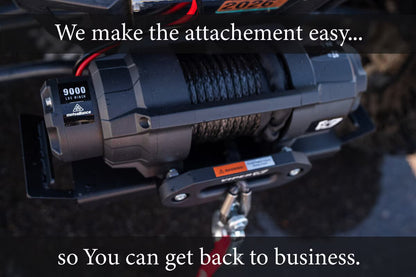

VIPER V3 Winch - 9,000lb W/ Cradle Mount

Check out the sleek and rugged Viper V3 winch -- the NEWEST in the family of trusted VIPER Winches by Motoalliance

The VIPER V3 boasts a modern cutting-edge look that is a great match for next-gen machines, and the tight footprint with recessed terminals allows installation in even the tightest of spaces.

The V3 sealed with an IP67 waterproof rating, constructed with durable corrosion-resistant aluminum, and made with military-grade raw materials for exceptional durability and performance.  Every V3 comes with a wireless remote switch to make winching operations safer and more convenient.

The V3 has also been designed to impress in every component -- from the high contrast decals, the matte finish on the winch body and laser-etched fairlead, to the multiple synthetic rope colors to match your machine.

The VIPER V3 is a great choice for discerning riders who love to push their machines to the limits while having a rugged, great-looking winch to rescue them out of sticky situations.


Features:

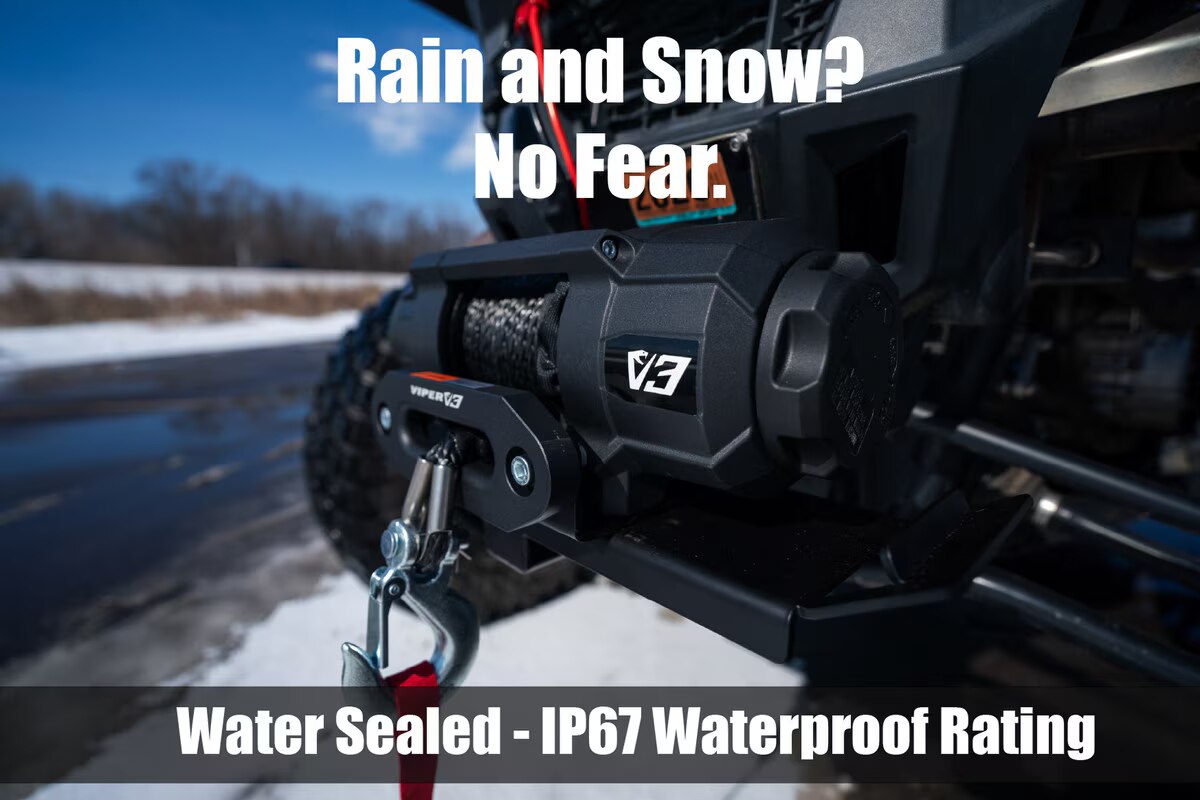

• • IP67 Waterproof Rating
• • Wireless Remote System with unique frequency
• • Planetary metal gear train and permanent magnet motor
• • Automatic brake
• • Limited One Year Warranty (6 Month Warranty on Rope)

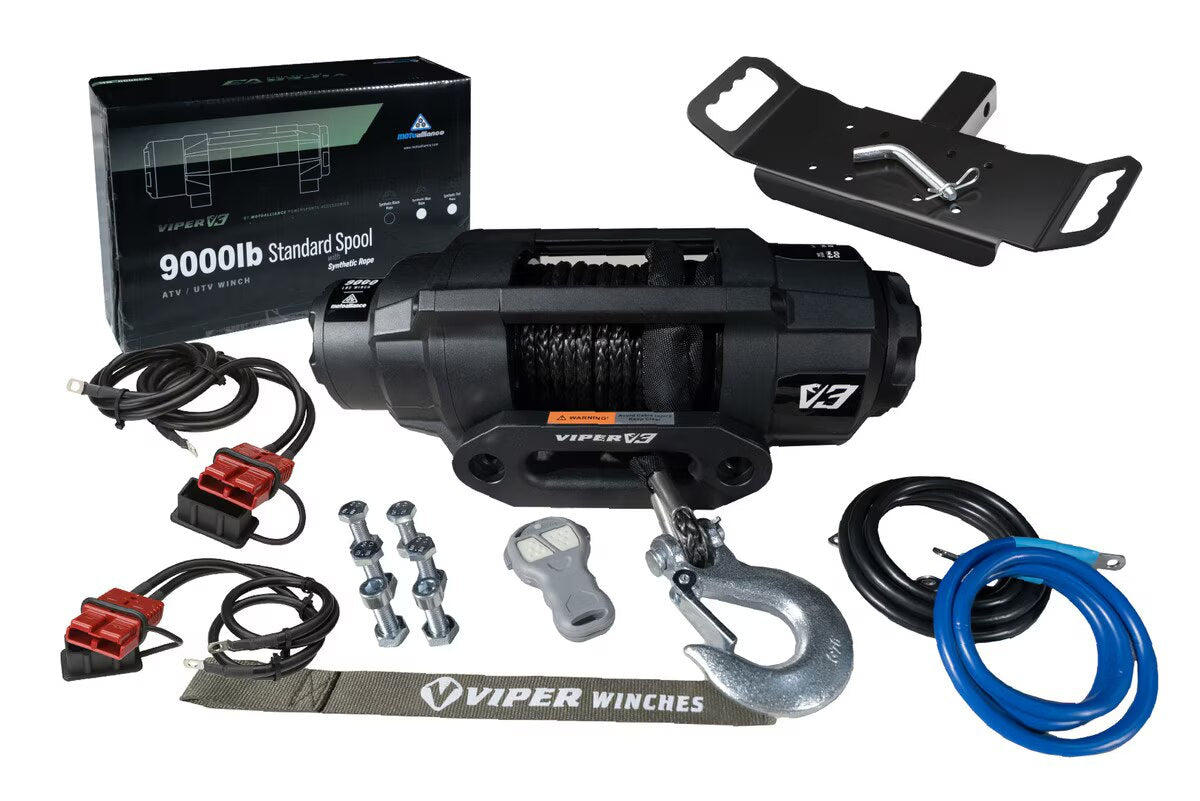

Kit Contents:

• • 40 x 1/2 diameter Synthetic Cable
• • Aluminum Hawse Fairlead
• • Wireless Remote Switch

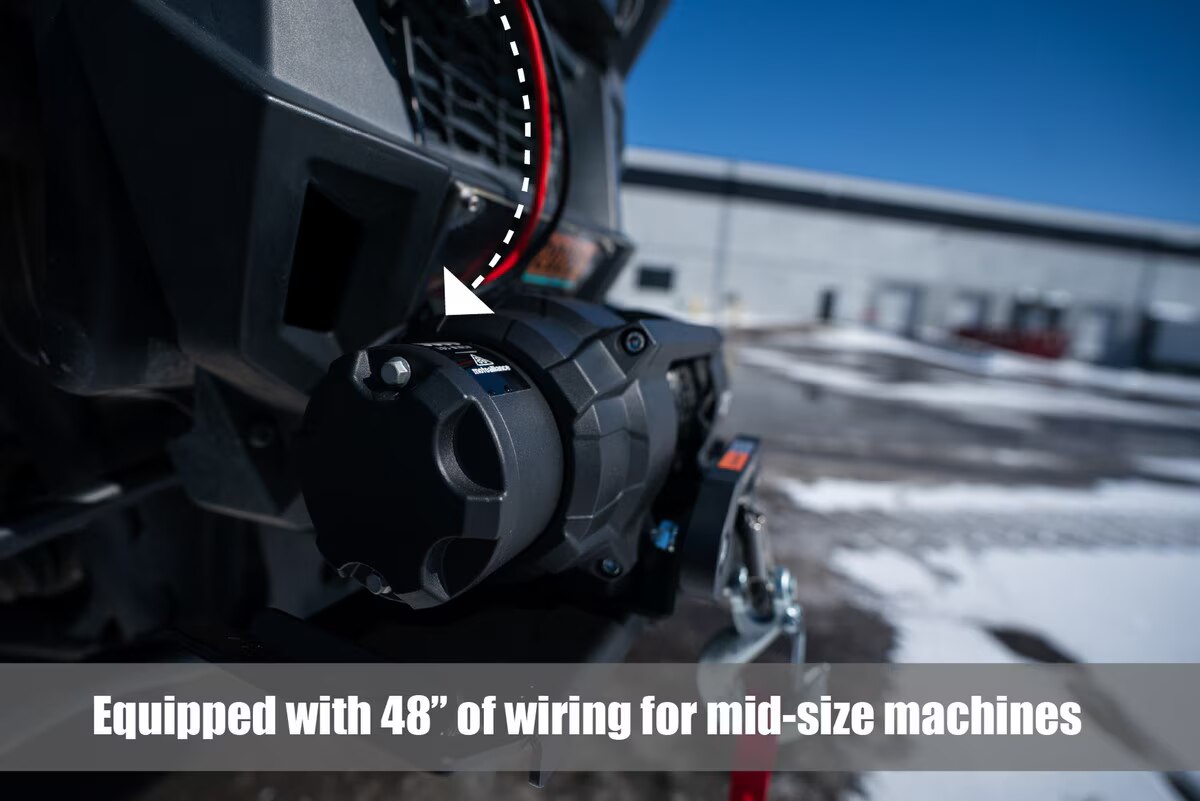

• • Contactor & Wiring
• • Clevis Hook
• • Rocker Handlebar Switch
• • Rubber Line Stopper (two-piece)
• • Hand Saver Strap
• • Installation Hardware and Instructions

Specs

• • Cable - Synthetic, 5,400lb max load rating
• • Motor - 12V DC, Sealed permanent magnet
• • Gearing / Gear Ratio - 3-Stage planetary/210:1
• • Brake - Automatic, 100% load holding
• • Clutch - Sliding Ring Gear
• • Wiring - 6 gauge (English)
• • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
• • Mounting Bolt Pattern - 3.0 inch x 6.6 inch (76mm x 169.42mm)
• • Dimensions:
  • •17 (L) x 6 (H) x 5.75 (D) inches
  • •34 lbs

Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV/ UTV / SxS. We have many custom mount plates designed to bolt on to your ATV/ UTV / SxS.
