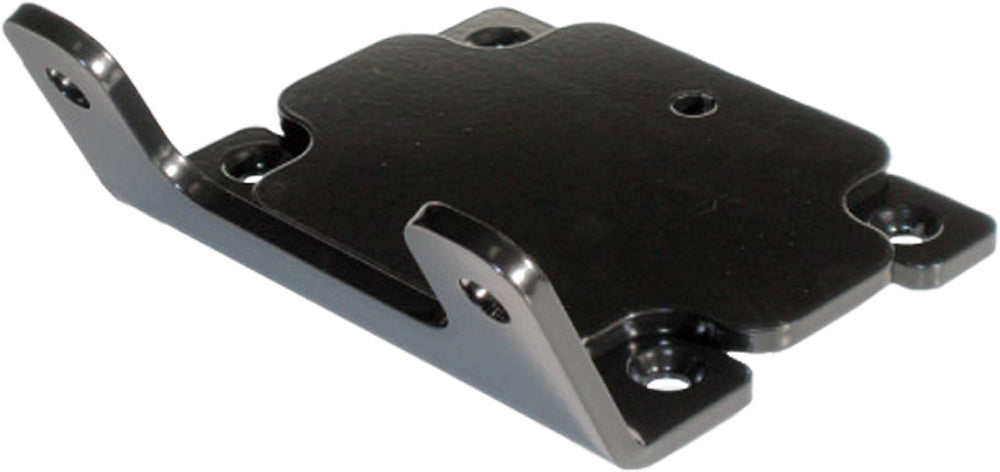

100530 Kodiak/Bruin/Grizzly Winch Mount

Brand New "KFI" Winch Mount for the following Yamaha ATV's:

Kodiak

• 2007-2014 Kodiak 350 4X4
• 2003-2004 Kodiak 400 2X4
• 2003-2006 Kodiak 400 4X4
• 2003-2014 Kodiak 450 4X4

Bruin

• 2004-2006 Bruin 350 2X4
• 2004-2009 Bruin 350 4X4

Grizzly

• 2007-2014 Grizzly 350 2X4
• 2007-2014 Grizzly 350 4X4
• 2007-2008 Grizzly 400 4X4
• 2007-2014 Grizzly 450 4X4

Designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35
• KFI: AM-25 / AM-35 / AS-25 / AS-35
• KFI: AS-50x (Requires purchase of ATV-MR)
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • May require adding washers to shim up to fit due to size
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH:LT2000 / UT3000 / Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2500 / LT3000 / LT4000ATV / LT4000 (SR)
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500lbs #2955AT
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• CYCLE COUNTRY: Work Power 1500 and 2500
• BADLAND: 2-Hole Winches (Click Here for Details)
• BADLAND: Standard Winches (Click Here for Details)
• CHAMPION: 2-Hole Winches (Click Here for Details)
• CHAMPION: ATV 4-Hole Winches (Click Here for Details)
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
• KEEPER CORP. TRAKKER: KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT: XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 (Standard ONLY)
  • 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern
• Traveller: 1078088 / 1078302
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole Standard (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)

Specifications:

• 100% MADE IN USA.
• Constructed of 1/4" steel.
• Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.
