KFI Winch Split Cable Hook Stopper ATV-SCHS

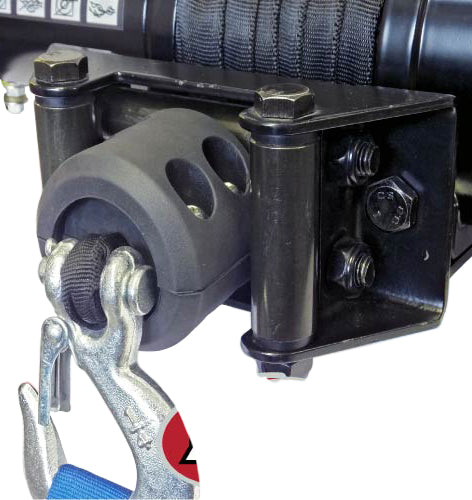

This "Split Cable Hook Stopper" is for the ATV and UTV winch. It weighs 4 oz and is 2 5/8 inches wide and 1 3/4 inches thick. This KFI Split Cable Hook Stopper will fit between the two outside rollers on an ATV or UTV winch fairlead. It also works great with the synthetic rope and or the slot fairlead.

Reasons to purchase a Split Cable Hook Stopper :

• Eliminates wear and tear on your rollers from the hook
• Eliminates hook clatter from going down the trail
• Creates a buffer for the winch motor and gears when the hook is drawn tight.
• Keeps tension on the hook to eliminate the cable becoming loose
• Looks great
• Once you have one, everyone else that you ride with will want one!

Installation:

Note: Wear leather gloves

1) Freespool winch and pull out approx 2 feet of cable

2) Remove the four bolts fastening the two halves of the Split Cable Hook Stopper together. Place the cable or rope between the two halves. Insert the four bolts and tighten until halves barely touch. Do not overtighten these bolts or you will damage the hook stopper.

3) To stow hook, engage clutch and retract cable onto winch spool until hook is snug against the hook stopper and fairlead

4) Position hook stopper at approx. 3/4 of the total line distance towards hook while using your winch
