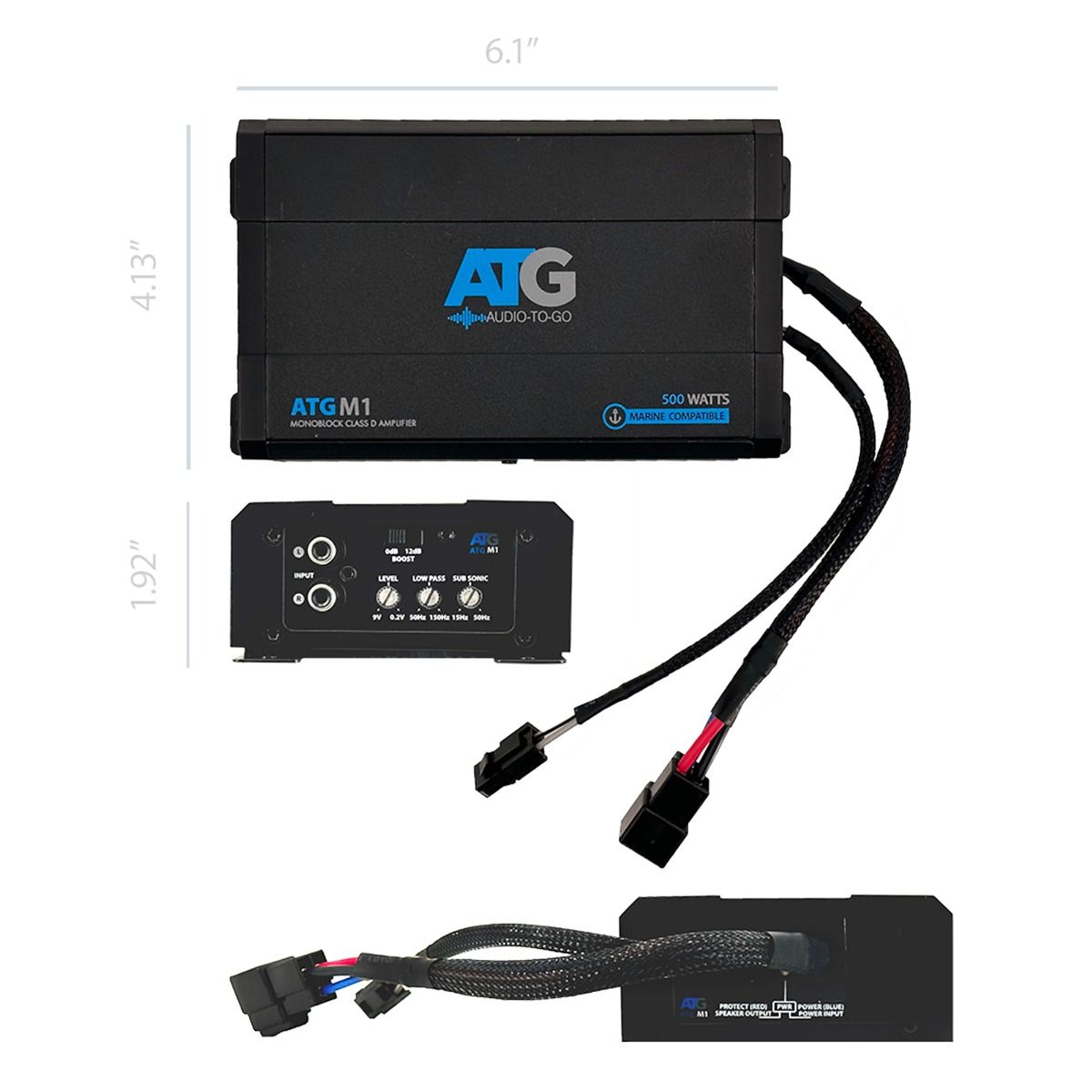

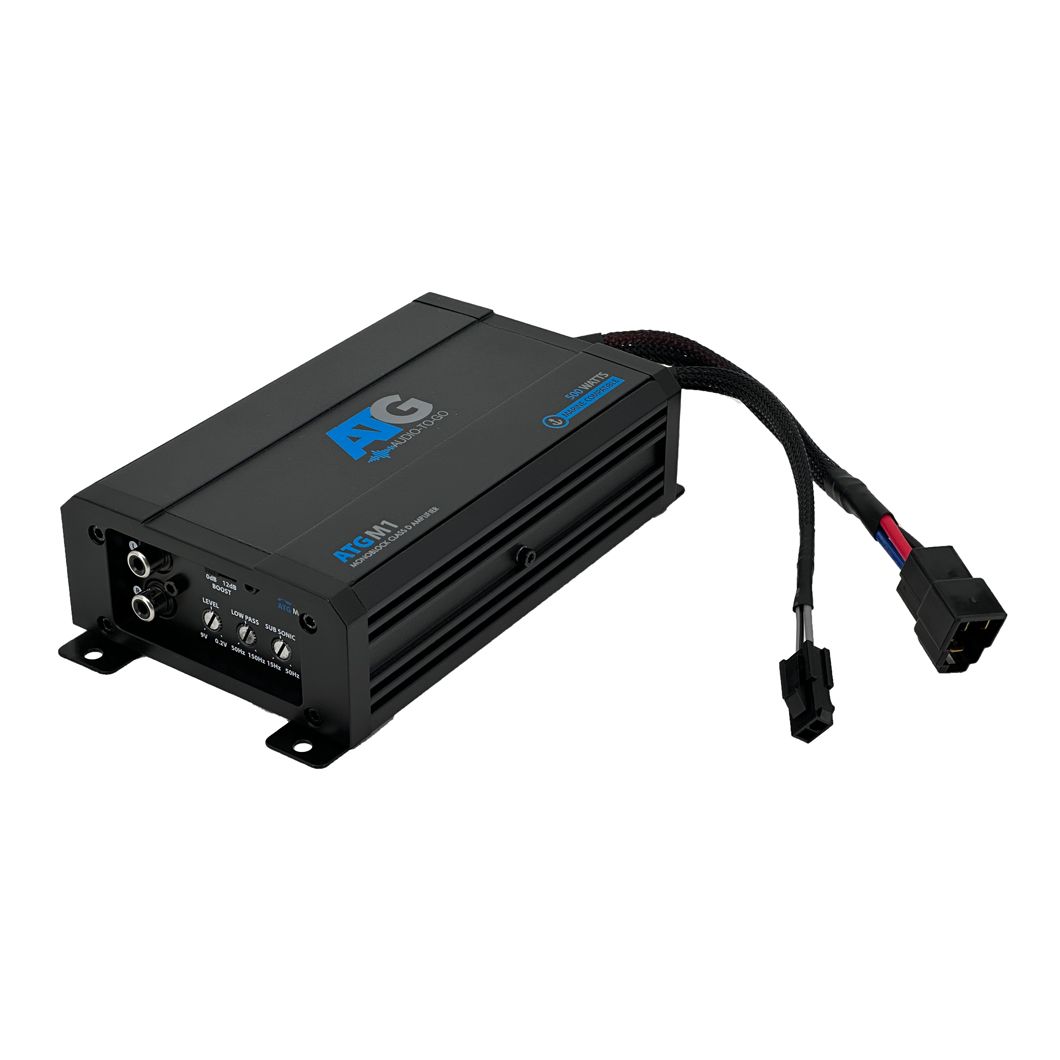

ATG 500W Class D Monoblock Amplifier

Sale price $152.99 USD Regular price $169.99 USD
10% off
SKU: ATGM1
Monoblock Class D Amplifier Output Power @ 14.4 VDC, 2-Ohms 1 x 500WOutput Power @ 14.4 VDC, 4-Ohms 1 x 250WPower Supply Input Voltage 12.0VDC to 14.8VDCMono Class D Technology2-Ohms... Read More

Pairs well with

ATG 500W Class D Monoblock Amplifier
$152.99 USD
View Financing Options
×

PlanetsXS is proud to offer flexible financing solutions through two trusted providers, making it easier for you to get the products you want today. Whether you're upgrading your gear or making a big purchase, our financing options help you manage your budget while still enjoying the best we have to offer.

We currently offer financing via

BreadPay and Shopify's ShopPay

View more details about our financing providers HERE

View details

Monoblock Class D Amplifier

Output Power @ 14.4 VDC, 2-Ohms 1 x 500W
Output Power @ 14.4 VDC, 4-Ohms 1 x 250W
Power Supply Input Voltage 12.0VDC to 14.8VDC
Mono Class D Technology
2-Ohms Mono load Capability
Marine Grade Nickel Plated RCA connectors
Variable 12db Low-pass crossover
Selectable 12dB Bass Boost
Variable Sub-sonic Filter
Marine Grade Conformal Coated Double Sided PCB
Compatible with any 4/2-Ohms Subwoofer
THD (1KHz @ 4-Ohms): 0.04%
Bandwidth (-3 dB): 18Hz - 22KHz
Damping Factor (1KHz @ 4-Ohms): 100
S/N ratio (as weighted @ 1 Volt): 99db
Input Sensitivity: .0.2MV - 6V
Minimum Load Impedance: 2-Ohms
Low-Pass filter range: 50Hz - 150Hz
Sub-Sonic Filter Range: 15Hz - 50Hz

Product specifications table
Specification name Specification Value
Amplifier/Booster suitable location Marine transport
Amplifier class D
Audio output channel 2
Color pattern Black, Blue
Connectivity technology Wired
Device interface RCA
Power source Vehicle electrical system
Suitable space Indoors, Outdoors
