System3 + Maxxis

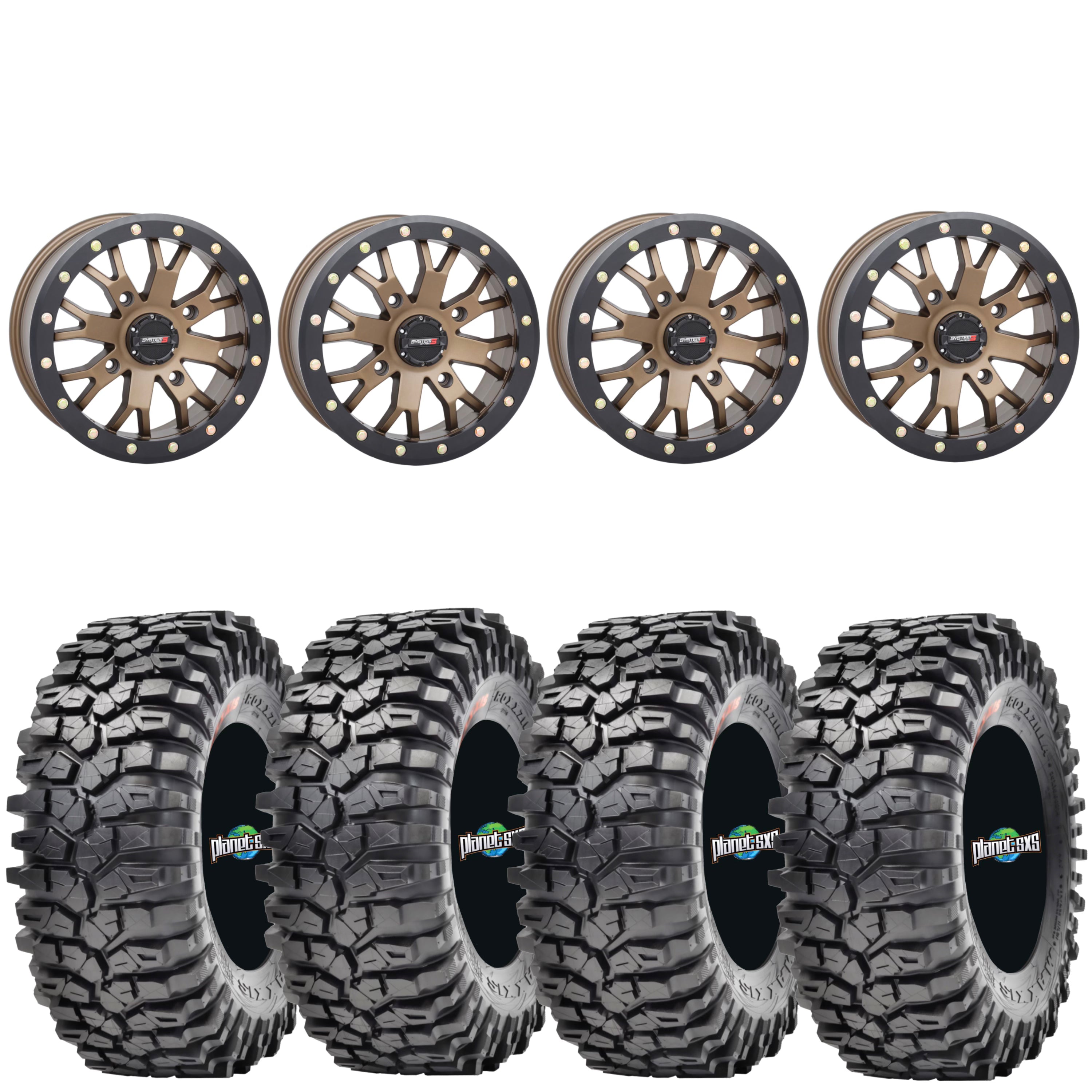

System3 SB4 Beadlock 4/156 bolt pattern Bronze mounted on Maxxis Roxxzillas

Sale price $1,686.28 USD Regular price $2,108.00 USD
20% off
Get a set of (4) System 3 SB4 4/156 bolt pattern beadlocks mounted on 8 ply radial Maxxis Roxxzilla tires with vehicle specific lug nuts included    4/156 bolt pattern fits...
Wheel Size: 14x7 6+1
Tire Size: 30x10-14 STANDARD COMPOUND

Pairs well with

System3 SB4 Beadlock 4/156 bolt pattern Bronze mounted on  Maxxis Roxxzillas
$1,686.28 USD
14x7 6+1 / 30x10-...

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Earn [points_amount] when you buy this item.

Get a set of (4) System 3 SB4 4/156 bolt pattern beadlocks mounted on 8 ply radial Maxxis Roxxzilla tires with vehicle specific lug nuts included



4/156 bolt pattern fits most Polaris SxS's 2013-current (excluding Pro R, turbo R, Ranger 1500 and Xpedition) , Kawasaki KRX, Yamaha Rmax and 2019+ Yamaha YXZ



Wheel offsets:

6+1 (+45mm)

4+3 (+15mm)

5+5 (+0mm)


System 3 SB-4 UTV Wheels Feature:

Available in 14x7 & 15x7 sizes
Matte Black or Bronze finish choices
10mm billet ring with 20  5/16-inch grade 8 bolts
Styled like the popular ST-3 simulated beadlock
1,200-pound load rating
Bolt-in center cap

SB-4 14-inch Beadlock Specifications

SIZE  -  BOLT PATTERN  -  OFFSET  -  FINISH  -  PART #

14x7  -  4/137  -  6+1 (+45mm)  -  Matte Black  -  521730
14x7  -  4/137  -  4+3 (+15mm)  -  Matte Black  -  521731
14x7 - 4/156 - 6+1 (+45mm) - Matte Black - 521732


14x7  -  4/137  -  6+1 (+45mm)  -  Bronze  -  521733
14x7  -  4/137  -  4+3 (+15mm)  -  Bronze  - 521734
14x7 - 4/156 - 6+1 (+45mm) - Bronze - 521735



SB-4 15-inch Beadlock Specifications

SIZE  -  BOLT PATTERN  -  OFFSET  -  FINISH  -  PART #

15x7  -  4/137  -  6+1 (+45mm)  -  Matte Black  -  521736
15x7  -  4/137  -  4+3 (+15mm)  -  Matte Black  -  521737
15x7 - 4/156 - 6+1 (+45mm) - Matte Black - 521738


15x7  -  4/137  -  6+1 (+45mm)  -  Bronze  -  521739
15x7  -  4/137  -  4+3 (+15mm)  -  Bronze  - 521740
15x7 - 4/156 - 6+1 (+45mm) - Bronze - 521741

NEW! Sizes and Compounds!

The Roxxzilla premier SxS rock crawling tire from Maxxis Tires sold at PlanetSXS.com!

  • 8-ply-rated radial construction
  • Soft rock crawling tread compound or firmer standard compound
  • High void-ratio in center and two layers on shoulder improve grip and puncture resistance
  • High multi-layer sidewall design enhances sidewall traction for rock crawling

Specifications

Part Number Position Size Ply Rating Overall Diameter (in) Section Width (in) Tire Pressure/Load (psi/lbs) Rim Size (in) Tread Depth (in)
Rim Size (in) 14
TM01010100 F/R 30X10.00R14* 8 30.5 10 546 14X7.0 19/32
TM00076700 F/R 30X10.00R14 8 30.5 10 NA 14X7.0 NA
TM00076800 F/R 32X10.00R14 8 32.2 10.6 617 14X7.0 NA
TM00047400 F/R 32X10.00R14* 8 32.2 10.55 617 14X7.0 NA
TM00047500 F/R 35X10.00R14* 8 34.5 10.91 741 14X7.0AT NA



The Roxxzilla is Maxxis tires premier SxS rock crawling tire! With 8-ply-rated radial construction, multi-layer sidewall design, stepped shoulder lugs and a soft tread compound, the Roxxzilla is the perfect tire for gripping rock.  A firmer standard compound is also available for better wear.   When mounting oversized tires to your ATV or SxS, be sure to check for proper fitment and tire clearance.


🚚 Fast Shipping. Easy Install.

  • Usually ships in 2–4 business days
  • Delivered pre-mounted and ready to install with basic tools
